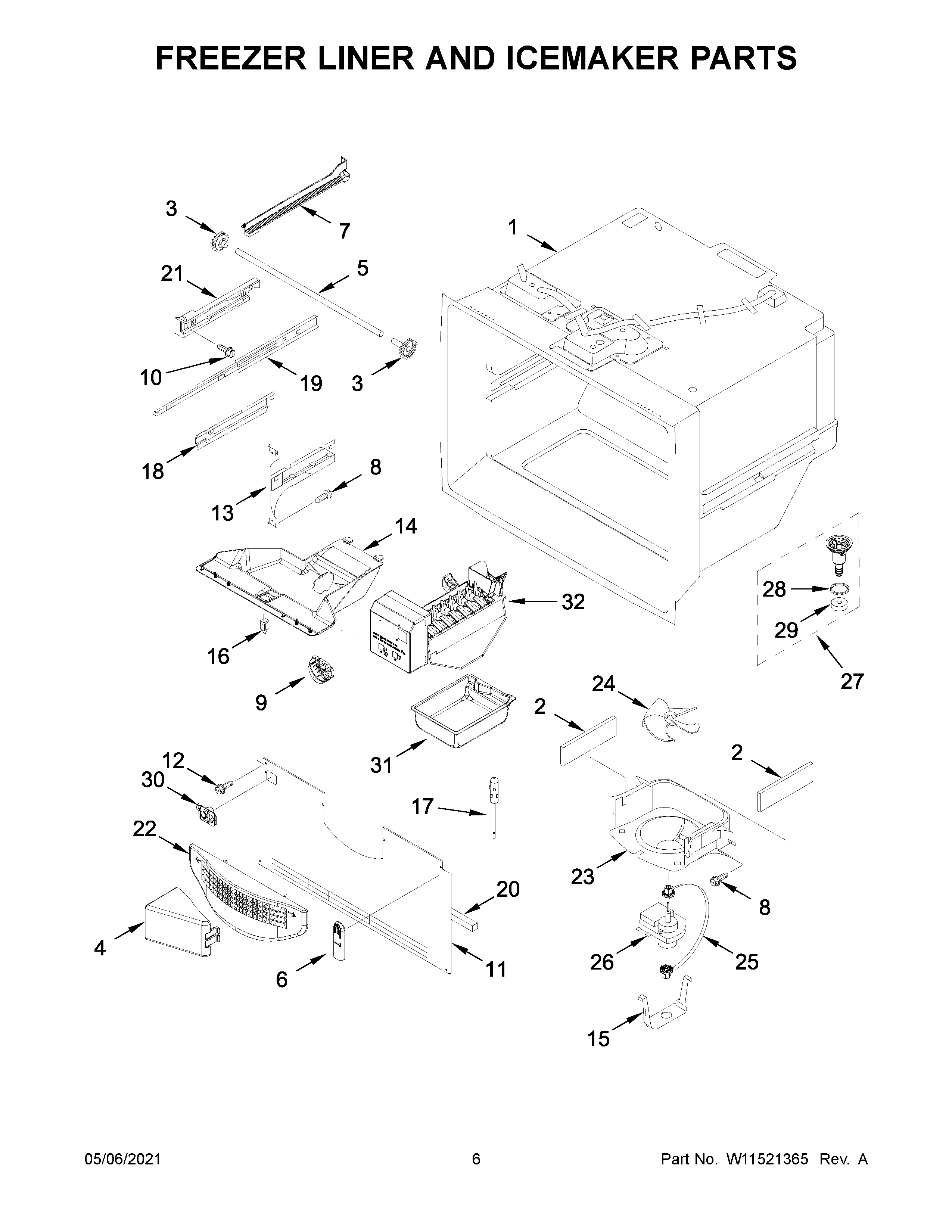

WRB322DMHV03 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4W10157765 Whirlpool Refrigerator Deflector
5W11715937 Whirlpool Shaft
6WP67003924 Whirlpool Refrigerator Cover
7W11489993 Whirlpool Refrigerator Rail
7AW11489994 Whirlpool Refrigerator Rail
8WP98165 Whirlpool Screw
9MODULE
10WP489474 Whirlpool Refrigerator Screw
11W10308415 Whirlpool Refrigerator Evaporator Cover
12WP489349 Whirlpool Refrigerator Screw
13AWPW10330993 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
1712002355 Whirlpool Refrigerator Thermistor Kit
18AWPW10280613 Whirlpool Refrigerator Bracket
18WPW10280608 Whirlpool Refrigerator Bracket
19W11658402 Whirlpool Drawer Slide Rail
20W11159742 Whirlpool Refrigerator Gasket
21WPW10284684 Whirlpool Refrigerator Bracket
21AWPW10284685 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W10121318 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30GUIDE, FILL TUBE
31WPW10171529 Whirlpool Refrigerator Ice Pan
32W11692144 Whirlpool Ice Maker
