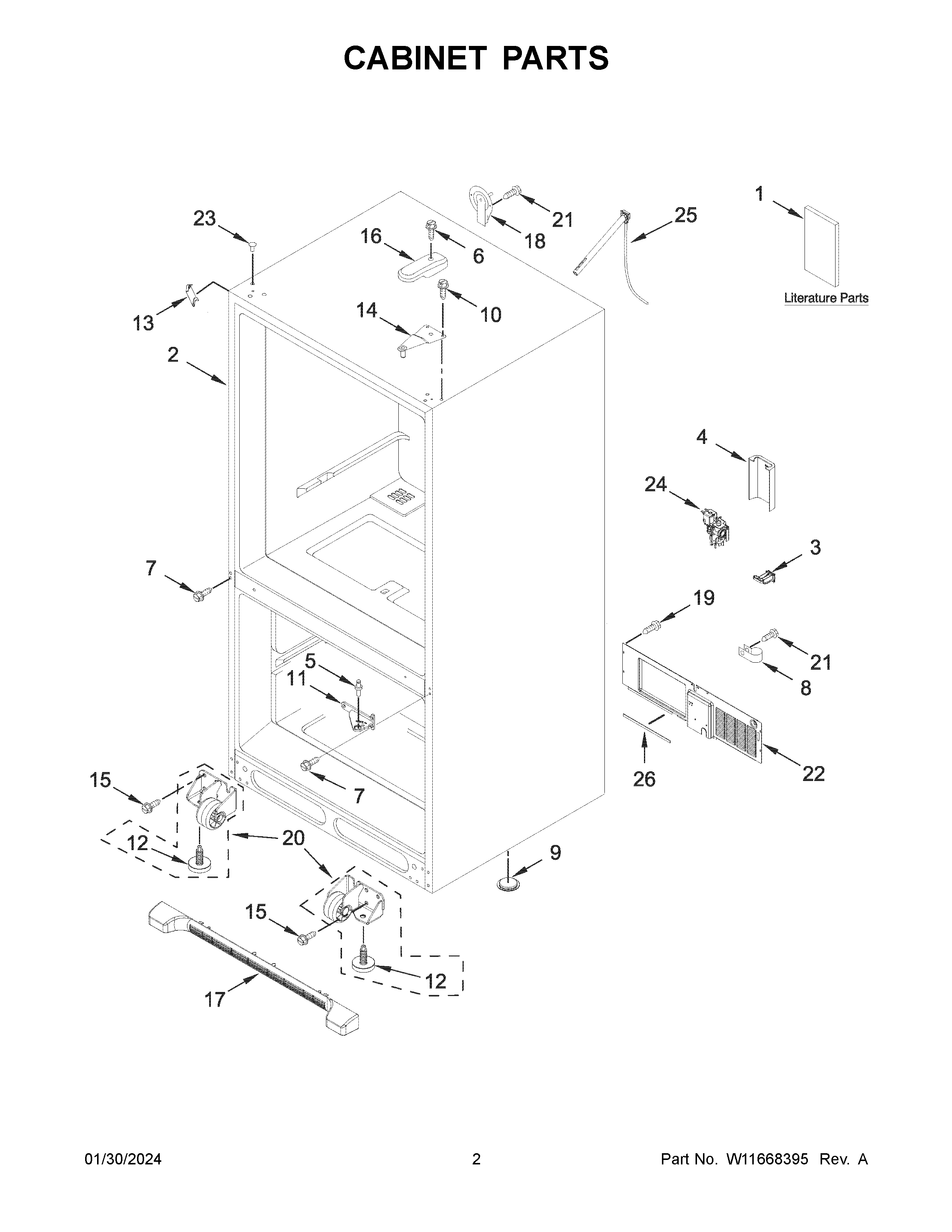

WRB322DMHV05 02 – CABINET PARTS

WRB322DMHV05 02 – CABINET PARTS

Written by

in

WRB322DMHV05 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1OWNER'S MANUAL
2CABINET (NOT A SERVICABLE PART)
3W10485986 Whirlpool Tube Clamp
4W10208592 Whirlpool Refrigerator Valve Cover
5WP67006642 Whirlpool Refrigerator Pin
6WP8281196 Whirlpool Screw
7W11573362 Whirlpool Screw Assembly
8W11456069 Whirlpool Refrigerator Clamp
9M0310343 Whirlpool Button Plug
10WP489349 Whirlpool Refrigerator Screw
11W11689473 Whirlpool Door Hinge
12WPW10141622 Whirlpool Leveler
1367003485 Whirlpool Refrigerator Corner Cover (Black)
14WP12566606ED Whirlpool Refrigerator Door Hinge
1567006564 Whirlpool Refrigerator Screw
1667001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
17WPW10534162 Whirlpool Refrigerator Front Grille
1812726003 Whirlpool Refrigerator Water Cover
19SCREW
20AWPW10515762 Whirlpool Refrigerator Cabinet Roller
20WPW10515763 Whirlpool Refrigerator Cabinet Roller
21WP98165 Whirlpool Screw
22WPW10210979 Whirlpool Refrigerator Back Cover
23WP12246608 Whirlpool Refrigerator Button
24W11519244 Whirlpool Refrigerator Valve
25W11181718 Whirlpool Refrigerator Water Tube
26GASKET
