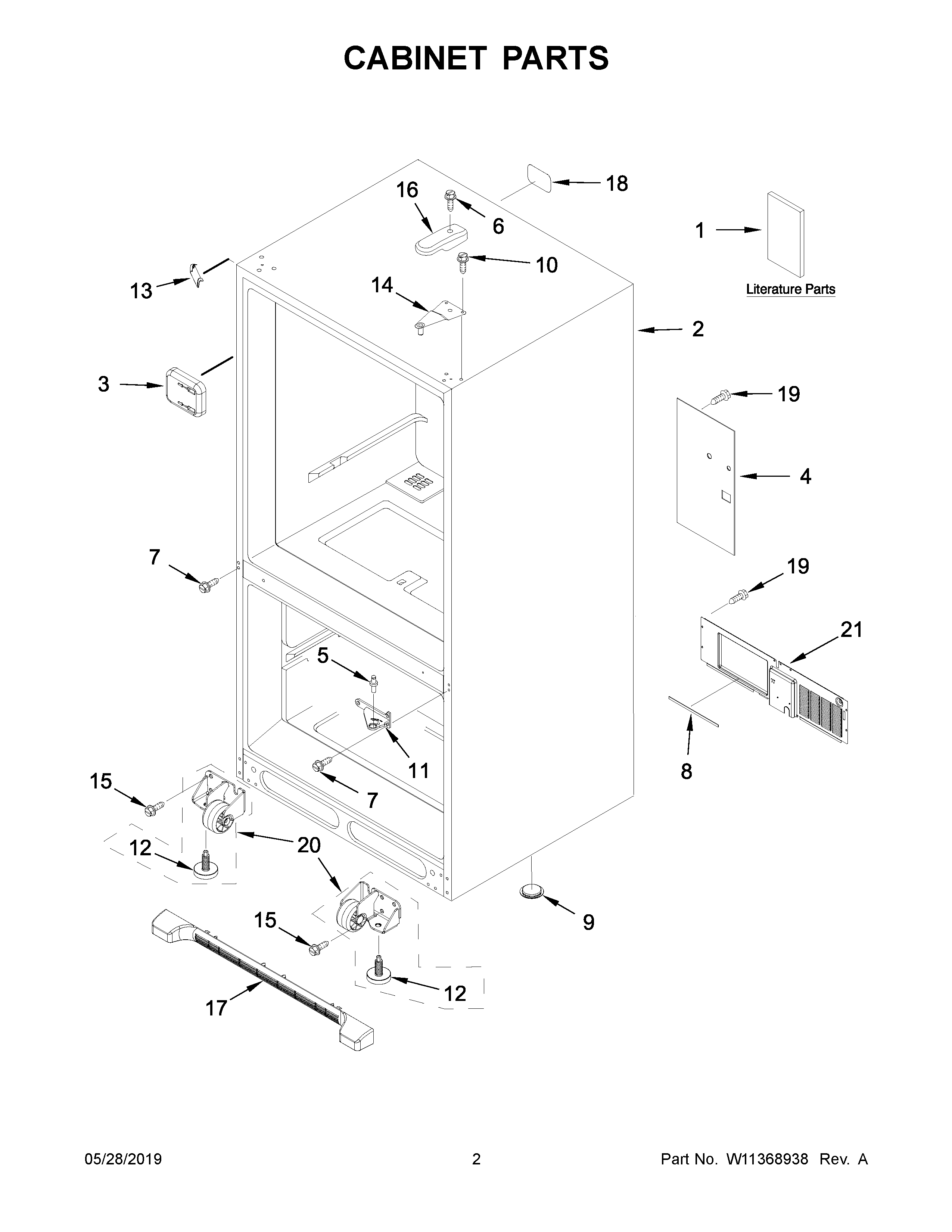

WRB329DFBB01 02 – CABINET PARTS

WRB329DFBB01 02 – CABINET PARTS

Written by

in

WRB329DFBB01 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AENERGY GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3COVER, FILL TUBE
4W11684617 Whirlpool Valve Cover
5WP67006642 Whirlpool Refrigerator Pin
6WP8281196 Whirlpool Screw
7W11573362 Whirlpool Screw Assembly
8W11244177 Whirlpool Gasket
9A3076901 Whirlpool Refrigerator Plug
10WP489349 Whirlpool Refrigerator Screw
11AWP12607104ED Whirlpool Refrigerator Door Hinge
11WP12607103WD Whirlpool Refrigerator Center Hinge
12WPW10141622 Whirlpool Leveler
13A67003485 Whirlpool Refrigerator Corner Cover (Black)
1312587703W Whirlpool Refrigerator Cover
14WP12566606ED Whirlpool Refrigerator Door Hinge
1567006564 Whirlpool Refrigerator Screw
16A67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
1667001014 Whirlpool Refrigerator Top Hinge Cover White
17AWPW10534167 Whirlpool Refrigerator Front Grille
17WPW10534166 Whirlpool Refrigerator Front Grille
18W11685757 Whirlpool Label
1967006425 Whirlpool Refrigerator Screw
20AWPW10515762 Whirlpool Refrigerator Cabinet Roller
20WPW10515763 Whirlpool Refrigerator Cabinet Roller
21W10210978 Whirlpool Refrigerator Back Cover
