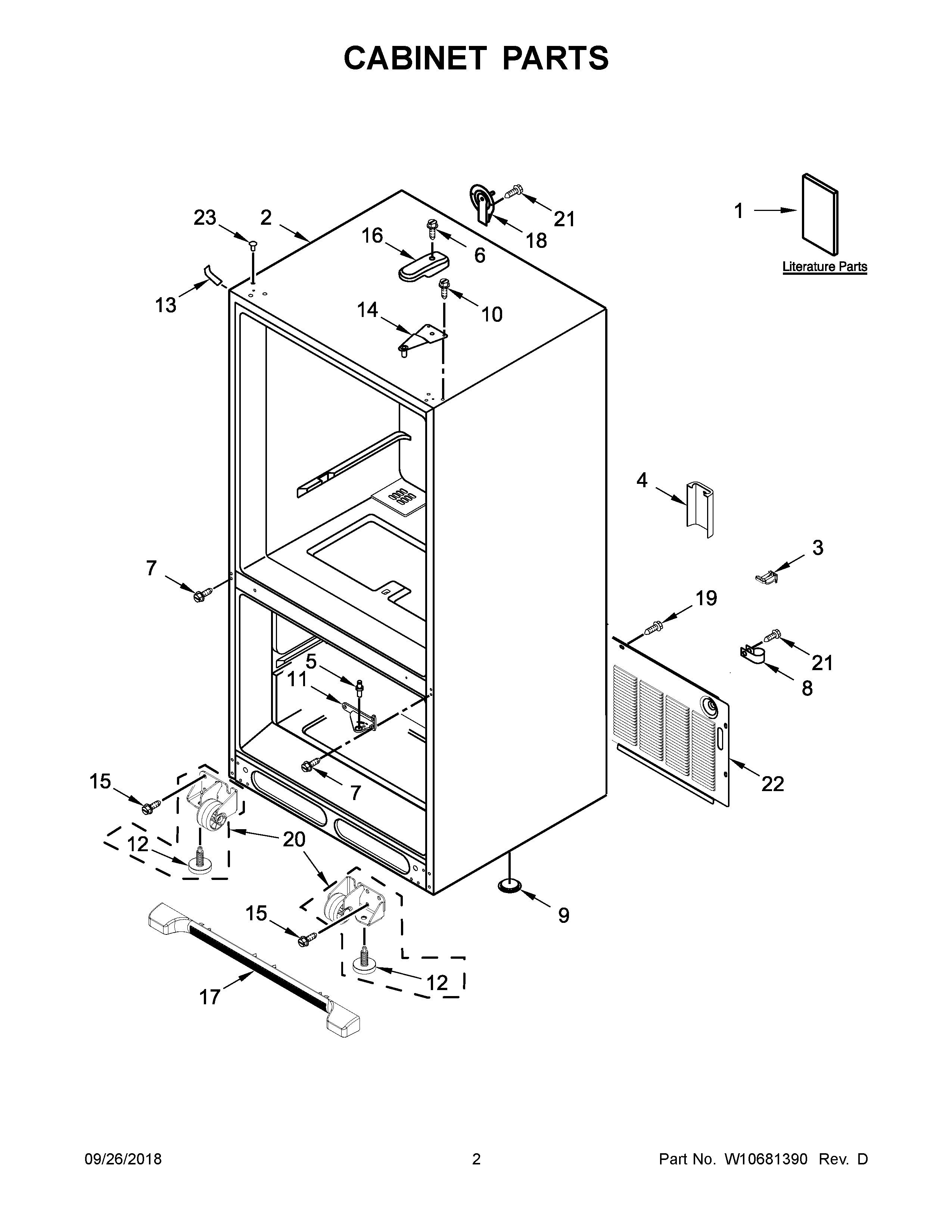

WRB329DMBB00 02 – CABINET PARTS

WRB329DMBB00 02 – CABINET PARTS

Written by

in

WRB329DMBB00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3W10485986 Whirlpool Tube Clamp
4W10208592 Whirlpool Refrigerator Valve Cover
5WP67006642 Whirlpool Refrigerator Pin
6WP8281196 Whirlpool Screw
7W11573362 Whirlpool Screw Assembly
8W11456069 Whirlpool Refrigerator Clamp
9A3076901 Whirlpool Refrigerator Plug
10WP489349 Whirlpool Refrigerator Screw
11B12607103AP Whirlpool Refrigerator Door Hinge
11WP12607103WD Whirlpool Refrigerator Center Hinge
11AWP12607104ED Whirlpool Refrigerator Door Hinge
12WPW10141622 Whirlpool Leveler
13A67003485 Whirlpool Refrigerator Corner Cover (Black)
13BWP12587703AP Whirlpool Refrigerator Filler
1312587703W Whirlpool Refrigerator Cover
14WP12566606ED Whirlpool Refrigerator Door Hinge
1567006564 Whirlpool Refrigerator Screw
1667001014 Whirlpool Refrigerator Top Hinge Cover White
16A67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
16BW11106366 Whirlpool Refrigerator Door Hinge
17AWPW10534167 Whirlpool Refrigerator Front Grille
17WPW10534166 Whirlpool Refrigerator Front Grille
17BWPW10534165 Whirlpool Refrigerator Front Grille
1812726003 Whirlpool Refrigerator Water Cover
1967006425 Whirlpool Refrigerator Screw
20WPW10515763 Whirlpool Refrigerator Cabinet Roller
20AWPW10515762 Whirlpool Refrigerator Cabinet Roller
21WP98165 Whirlpool Screw
22W10210978 Whirlpool Refrigerator Back Cover
23BWP12246610 Whirlpool Refrigerator Handle Plug
23WP67001130 Whirlpool Refrigerator White Button Plug
23AWP12246608 Whirlpool Refrigerator Button
