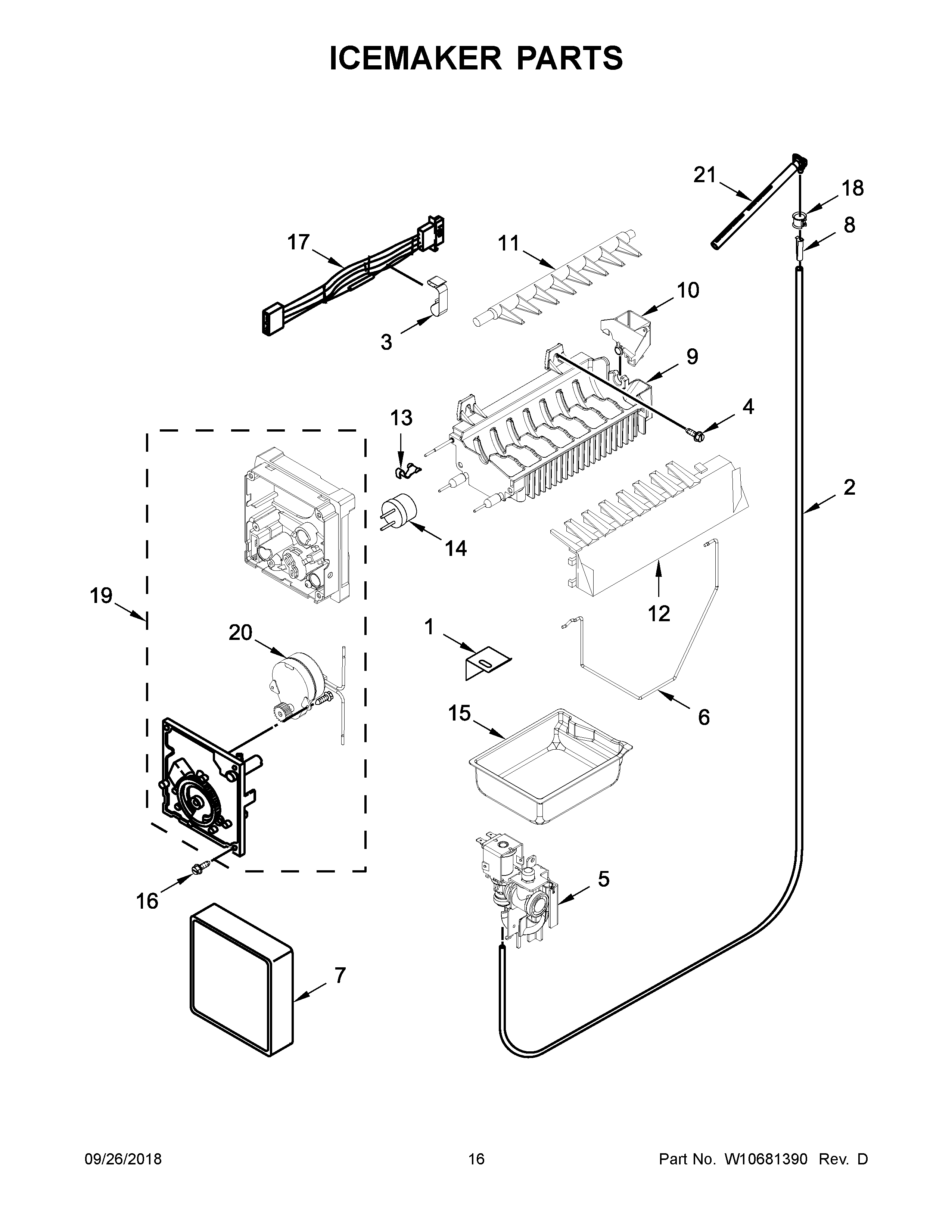

WRB329DMBB00 09 – ICEMAKER PARTS

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
2	WPW10449192 Whirlpool Refrigerator Water Tube
3	Clamp
4	WPW10068250 Whirlpool Dishwasher Screw
5	VALVE-REFR INLET
6	W11285509 Whirlpool Refrigerator Shut-Off Arm
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10410073 Whirlpool Fill Cup Assembly
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	W10788834 Whirlpool Strip Arm
13	WP628379 Whirlpool Refrigerator Clip
14	WP627985 Whirlpool Icemaker Cycling Thermostat
15	WPW10171529 Whirlpool Refrigerator Ice Pan
16	W10001240 Whirlpool Refrigerator Screw
17	W10886932 Whirlpool Refrigerator Wire Harness
18	WPM0114003 Whirlpool Microwave Speed Clip Clamp
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
20	CABINET (NOT A SERVICEABLE PART)
21	W11176463 Whirlpool Refrigerator Water Tube
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
