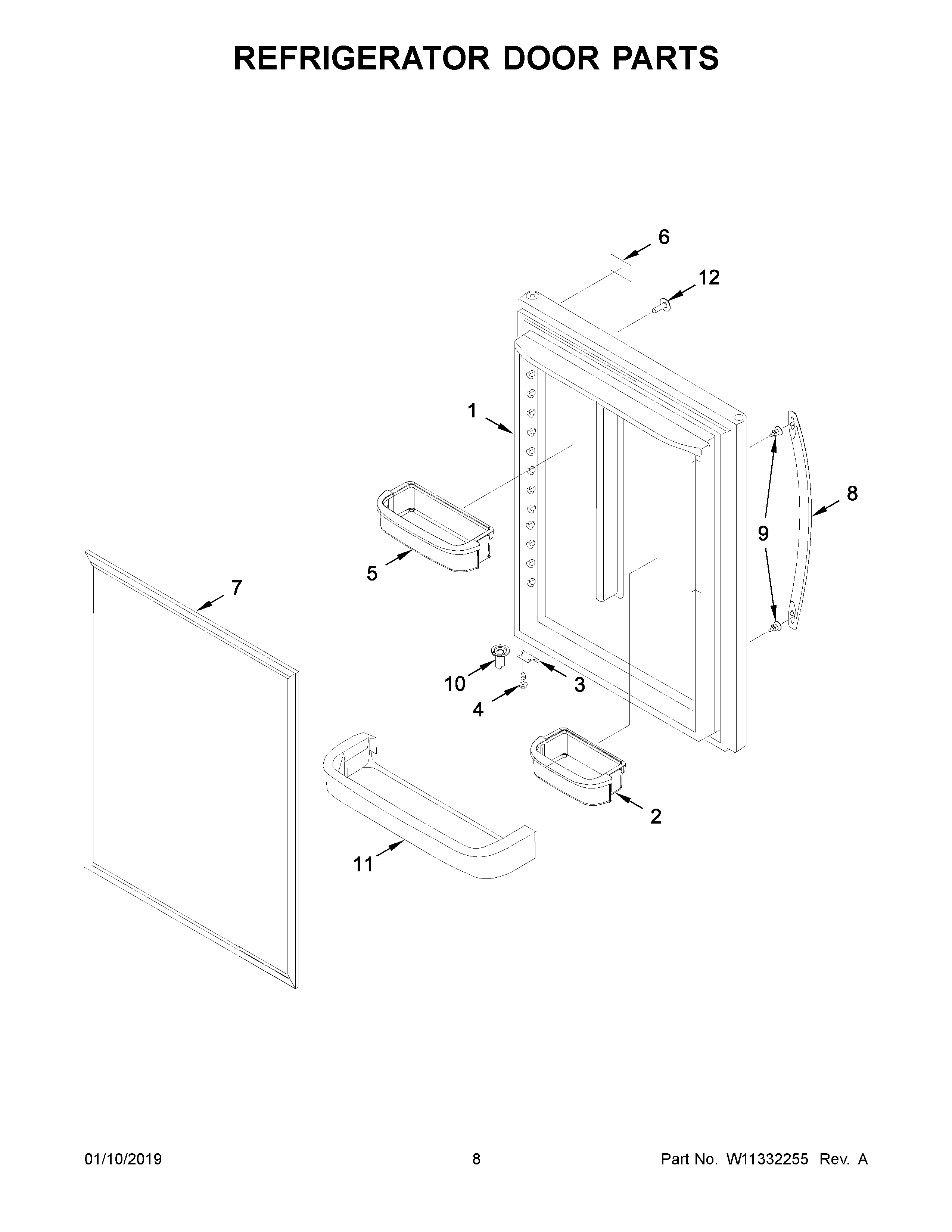

WRB329DMBM01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1B	13107553SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
1A	13109402BQ Whirlpool Refrigerator Black Foam In Place Door
1	13109402WQ Whirlpool Refrigerator Door FIP White
2	WPW10351081 Whirlpool Refrigerator Cantilever Bin
3A	W11708403 Whirlpool Door Stop
3B	W11401472 Whirlpool Refrigerator Door Stop
3	12968202W Whirlpool Refrigerator Door Stop
4	WP98165 Whirlpool Screw
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11223753 Whirlpool Refrigerator Nameplate
7	WPW10443309 Whirlpool Refrigerator Door Gasket
7A	WPW10436245 Whirlpool Refrigerator FIP Gasket
7B	W11676571 Whirlpool Refrigerator FIP Gasket
8B	W11459378 Whirlpool Refrigerator Handle
8	W10830136 Whirlpool Refrigerator Handle
8A	W10830130 Whirlpool Refrigerator Handle
9	WPW10661886 Whirlpool Refrigerator Door Handle Screw
10B	WP12028505AP Whirlpool Closing Cam
10	WP67003638 Whirlpool Closing Cam
10A	WP67003639 Whirlpool Refrigerator Closer
11	67001139 Whirlpool Refrigerator Shelf Trim
12B	WP12246610 Whirlpool Refrigerator Handle Plug
12	WP67001130 Whirlpool Refrigerator White Button Plug
12A	WP12246608 Whirlpool Refrigerator Button
