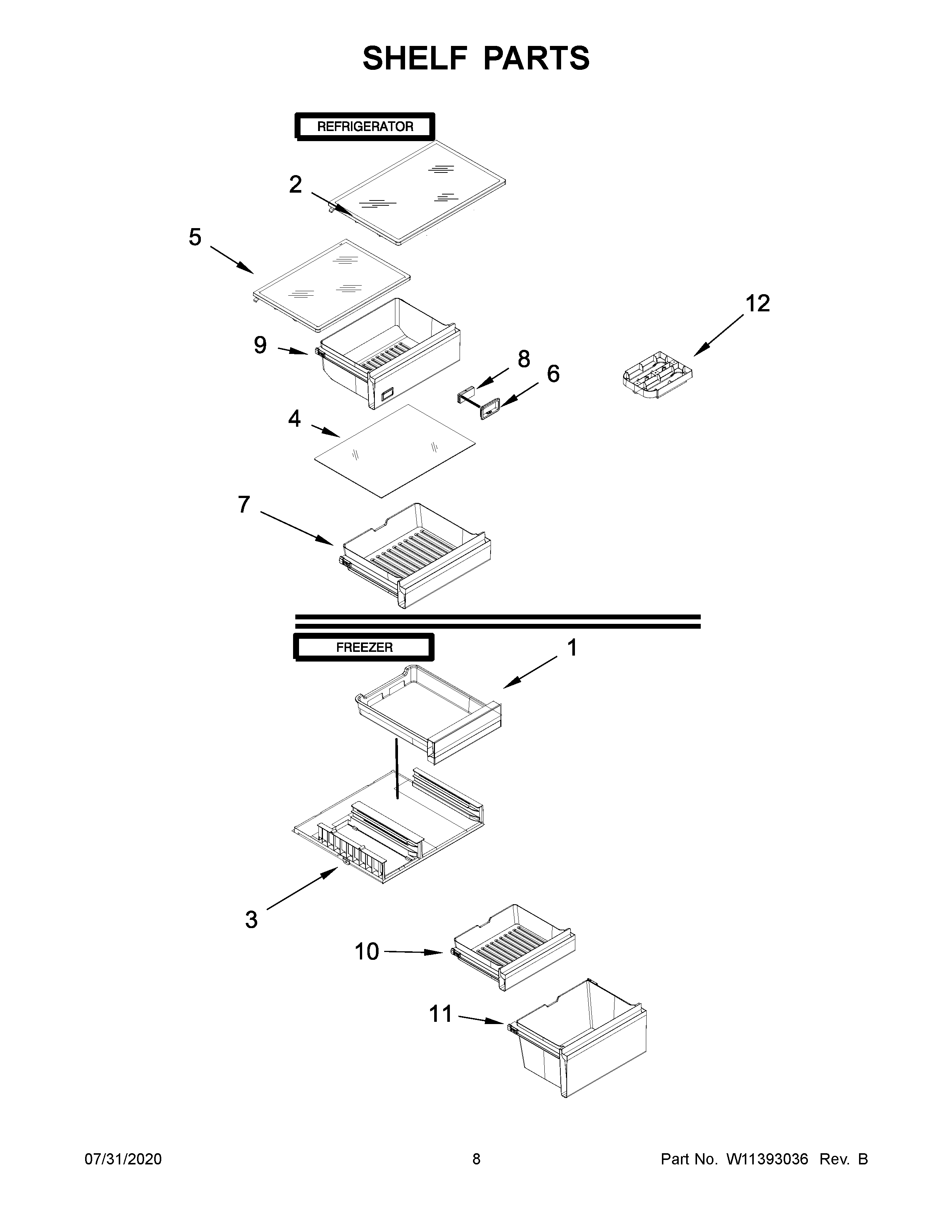

WRB533CZJZ00 05 – SHELF PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11436851 Whirlpool Refrigerator Icemaker
NI	W11416493 Whirlpool Refrigerator Ice Maker
NI	W11436901 Whirlpool Refrigerator Container
1	FREEZER, DRAWER (LEFT HAND)
1A	FREEZER, DRAWER (RIGHT HAND)
2	W11409862 Whirlpool Glass Shelf
3	W11261262 Whirlpool Refrigerator Glass Shelf
4	SHELF, GLASS
5	W11394627 Whirlpool Cover
6	W10435530 Whirlpool Refrigerator Control Body
7	ASSEMBLY, CRISPER
8	W10431229 Whirlpool Refrigerator Cover
9	PAN, MEAT
10	W11391313 Whirlpool Utility Pan
11	W11391351 Whirlpool Drawer Assembly
