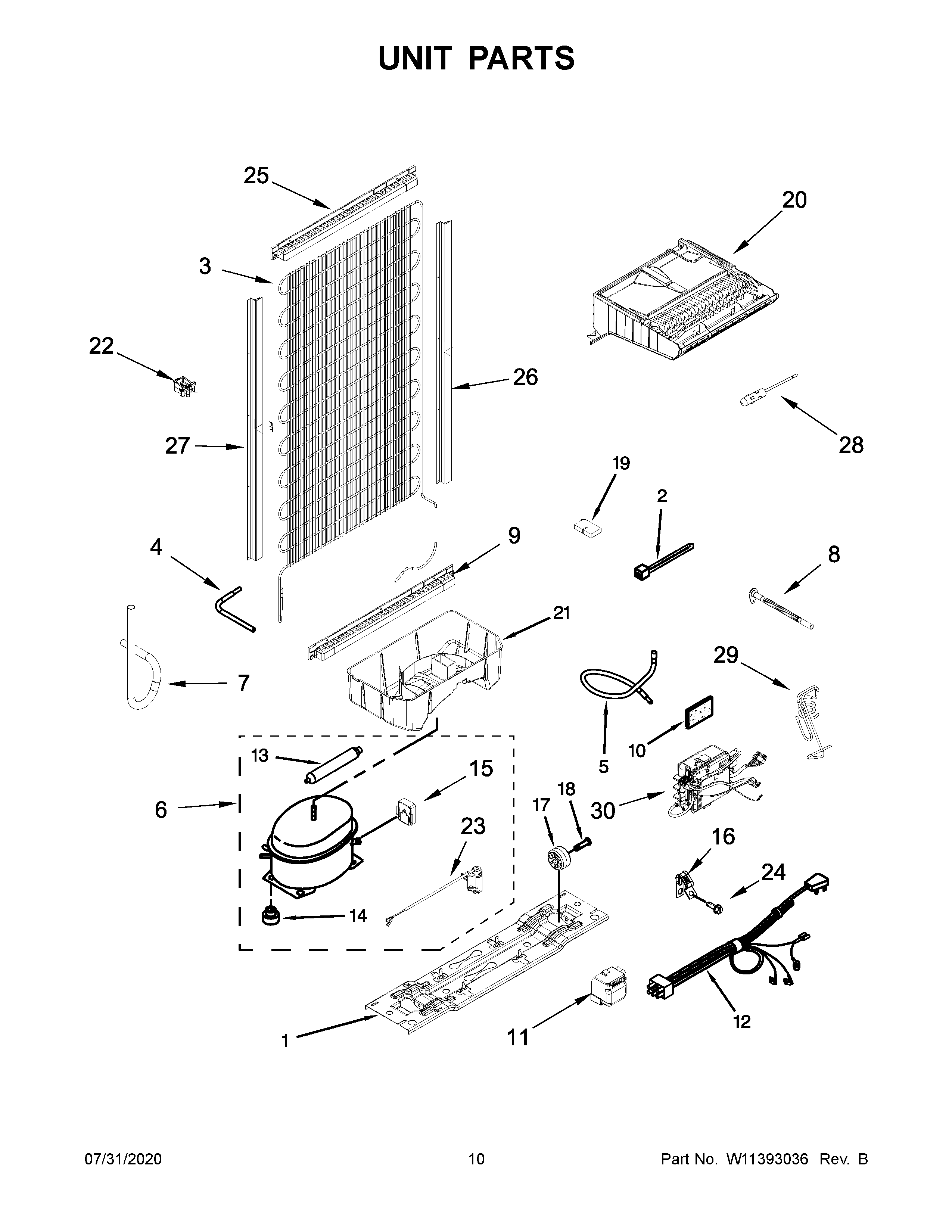

WRB533CZJZ00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	PLATE, COMPRESSOR MOUNTING
2	WPW10339879 Whirlpool Wire Tie
3B	W11506623 Whirlpool Refrigerator Coupler
3	W11512410 Whirlpool Refrigerator Condenser
4	W11661102 Whirlpool Tube
5	W11466255 Whirlpool Wire Harness
6B	W11504420 Whirlpool Microwave Coupler
6A	W11504415 Whirlpool Refrigerator Coupler
6	W11370574 Whirlpool Refrigerator Compressor
6D	W11506635 Whirlpool Refrigerator Valve Coupler
7	TUBE
8	W11512414 Whirlpool Refrigerator Extension
9	CONDENSER, BOTTOM PROTECTION
10	W11553819 Whirlpool Refrigerator Insulation
11	W11342284 Whirlpool Terminal Cover
12	W11248029 Whirlpool Refrigerator Power Cord
13	W11490399 Whirlpool Microwave Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11643623 Whirlpool Device Start
16	W11234470 Whirlpool Refrigerator Clamp
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10261299 Whirlpool Evaporator Support
20E	W11506620 Whirlpool Refrigerator Coupler
20	W11394622 Whirlpool Refrigerator Evaporator
20F	W11225184 Whirlpool Refrigerator Tube
20A	W11504423 Whirlpool Refrigerator Coupler
20D	W11504419 Whirlpool Microwave Coupler
21	W11559685 Whirlpool Refrigerator Tray
22	WP326020544 Whirlpool Refrigerator Support
23	W11652060 Whirlpool Capacitor
24	WP489442 Whirlpool Refrigerator Screw
25	CONDENSER, TOP PROTECTION
26	CONDENSER, SIDE PROTECTION (RIGHT)
27	CONDENSER SIDE PROTECTION (LEFT)
28	WPL ARI8DB29D11366173399AE5CDFF38CE40A4
29B	W11504445 Whirlpool Refrigerator Coupler
29A	W11504431 Whirlpool Microwave Coupler
29	W11487479 Whirlpool Tube
30	W11487480 Whirlpool Refrigerator Control Box
