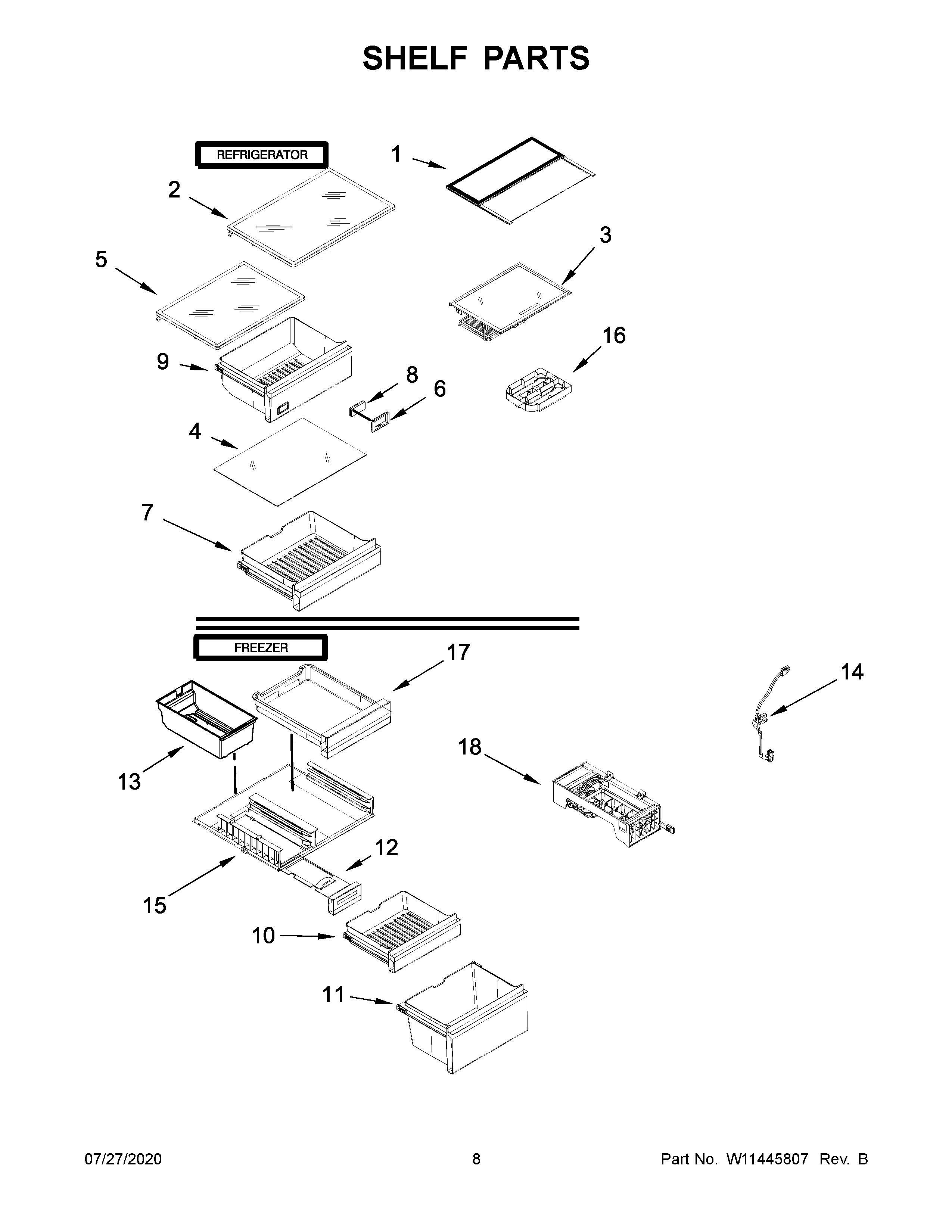

WRB543CMJV00 05 – SHELF PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11416493 Whirlpool Refrigerator Ice Maker
1	W11424097 Whirlpool Refrigerator Glass Shelf
2	W11409862 Whirlpool Glass Shelf
3	ASSEMBLY, SHELF
4	SHELF, GLASS
5	W11394627 Whirlpool Cover
6	W10435530 Whirlpool Refrigerator Control Body
7	ASSEMBLY, CRISPER
8	W10431229 Whirlpool Refrigerator Cover
9	PAN, MEAT
10	W11391313 Whirlpool Utility Pan
11	W11391351 Whirlpool Drawer Assembly
12	W11440727 Whirlpool Refrigerator Cover
13	W11436901 Whirlpool Refrigerator Container
14	JUMPER, WIRE ASSEMBLY
15	W11261262 Whirlpool Refrigerator Glass Shelf
16	HOLDER, BEVERAGE
17	FREEZER, DRAWER (RIGHT HAND)
18	W11436851 Whirlpool Refrigerator Icemaker
