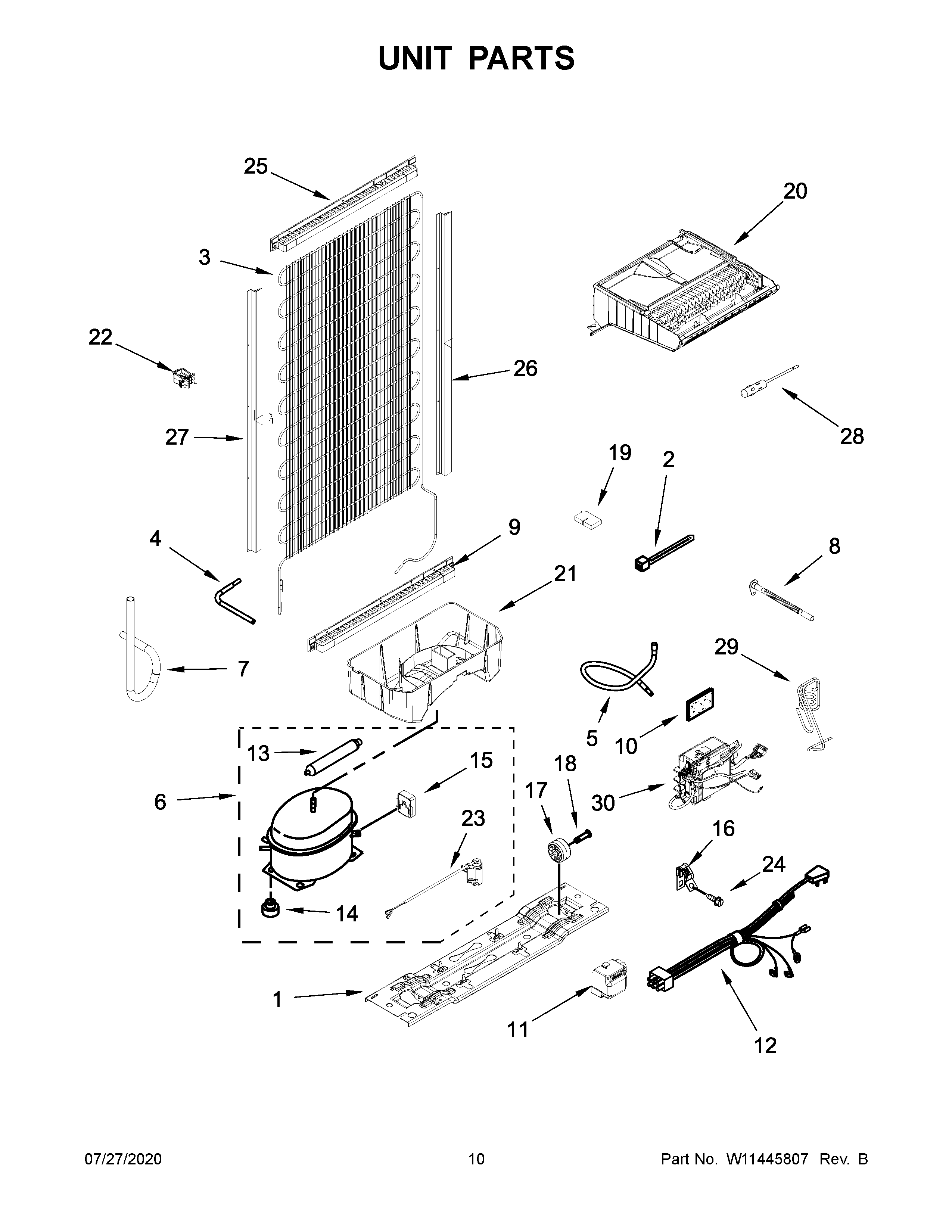

WRB543CMJV00 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	PLATE, COMPRESSOR MOUNTING
2	WPW10339879 Whirlpool Wire Tie
3	W11512410 Whirlpool Refrigerator Condenser
4	W11661102 Whirlpool Tube
5	W11487480 Whirlpool Refrigerator Control Box
6	W11370574 Whirlpool Refrigerator Compressor
6A	W11504415 Whirlpool Refrigerator Coupler
6C	W11504420 Whirlpool Microwave Coupler
6D	W11506635 Whirlpool Refrigerator Valve Coupler
7	TUBE
8	W11487479 Whirlpool Tube
8B	W11504445 Whirlpool Refrigerator Coupler
8A	W11504431 Whirlpool Microwave Coupler
9	CONDENSER, BOTTOM PROTECTION
10	W11553819 Whirlpool Refrigerator Insulation
11	W11342284 Whirlpool Terminal Cover
12	W11248029 Whirlpool Refrigerator Power Cord
13B	W11504448 Whirlpool Refrigerator Coupler
13	W11109499 Whirlpool Refrigerator Tube
13A	W11506623 Whirlpool Refrigerator Coupler
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11643623 Whirlpool Device Start
16	W11234470 Whirlpool Refrigerator Clamp
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10261299 Whirlpool Evaporator Support
20A	W11504423 Whirlpool Refrigerator Coupler
20	W11394622 Whirlpool Refrigerator Evaporator
20E	W11225184 Whirlpool Refrigerator Tube
20C	W11504419 Whirlpool Microwave Coupler
20D	W11506620 Whirlpool Refrigerator Coupler
21	W11559685 Whirlpool Refrigerator Tray
22	WP326020544 Whirlpool Refrigerator Support
23	W11652060 Whirlpool Capacitor
24	WP489442 Whirlpool Refrigerator Screw
25	CONDENSER, TOP PROTECTION
26	CONDENSER, SIDE PROTECTION (RIGHT)
27	CONDENSER SIDE PROTECTION (LEFT)
