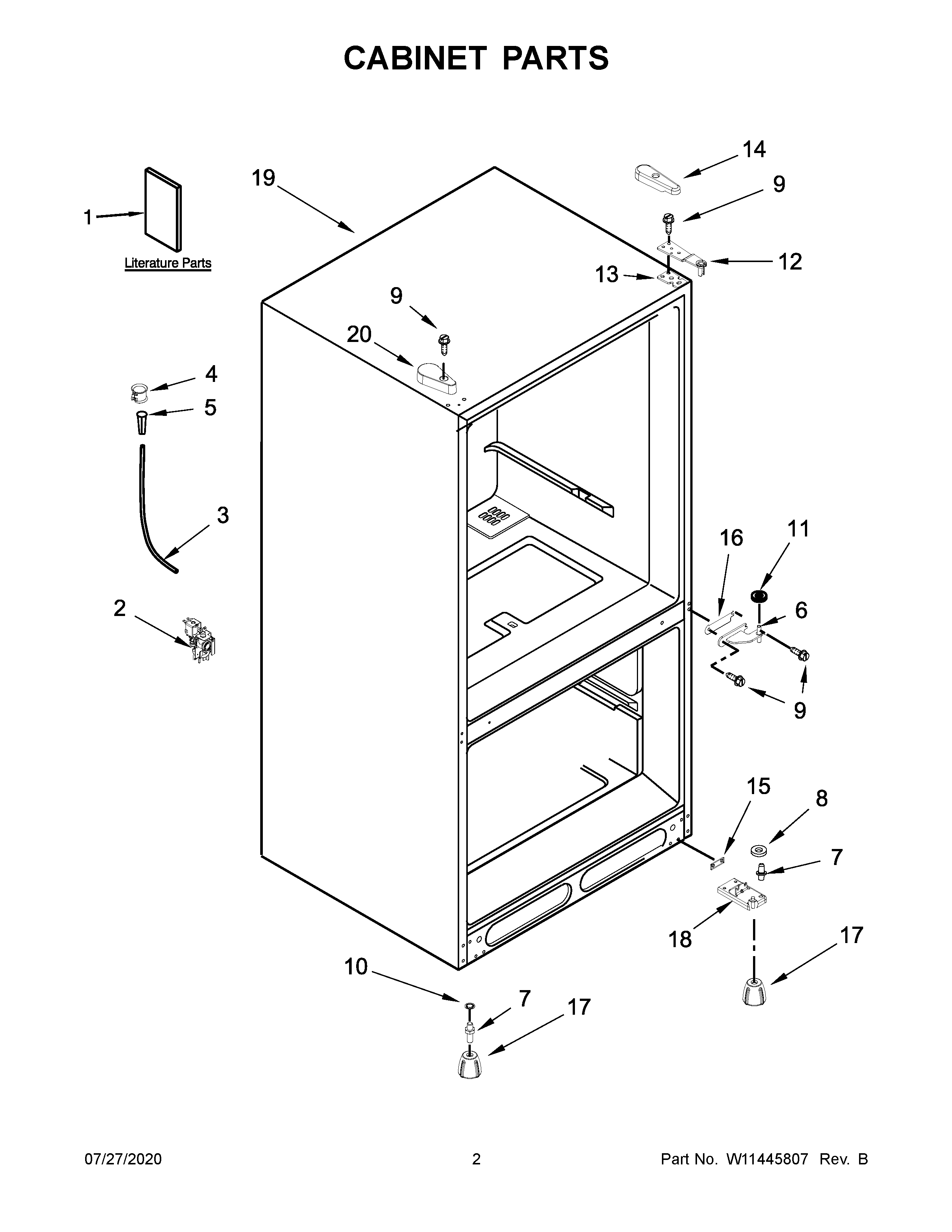

WRB543CMJZ00 02 – CABINET PARTS

WRB543CMJZ00 02 – CABINET PARTS

Written by

in

WRB543CMJZ00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
2VALVE-REFR INLET
3W11680400 Whirlpool Water Tube
4W10861184 Whirlpool Refrigerator Clamp
54387491 Whirlpool Refrigerator Insert
6W11173998 Whirlpool Refrigerator Door Hinge
7W11678964 Whirlpool Hinge Pin
8WP489467 Whirlpool Hinge Shim
9WP489497 Whirlpool Screw
10SCREW, LEVELER
11WP487576 Whirlpool Washer
12W11191773 Whirlpool Refrigerator Door Hinge
13W10399311 Whirlpool Refrigerator Hinge Shim
14HINGE COVER (BLACK)
14ACOVER
15W11269192 Whirlpool Refrigerator Hinge Shim
16W11269182 Whirlpool Refrigerator Hinge Shim
17W11545335 Whirlpool Refrigerator Leveling Leg
18W11580021 Whirlpool Refrigerator Door Hinge
19CABINET (NOT A SERVICEABLE PART)
20ACOVER, CONNECTOR BOX (GREY)
20COVER, CONNECTOR BOX (BLACK)
