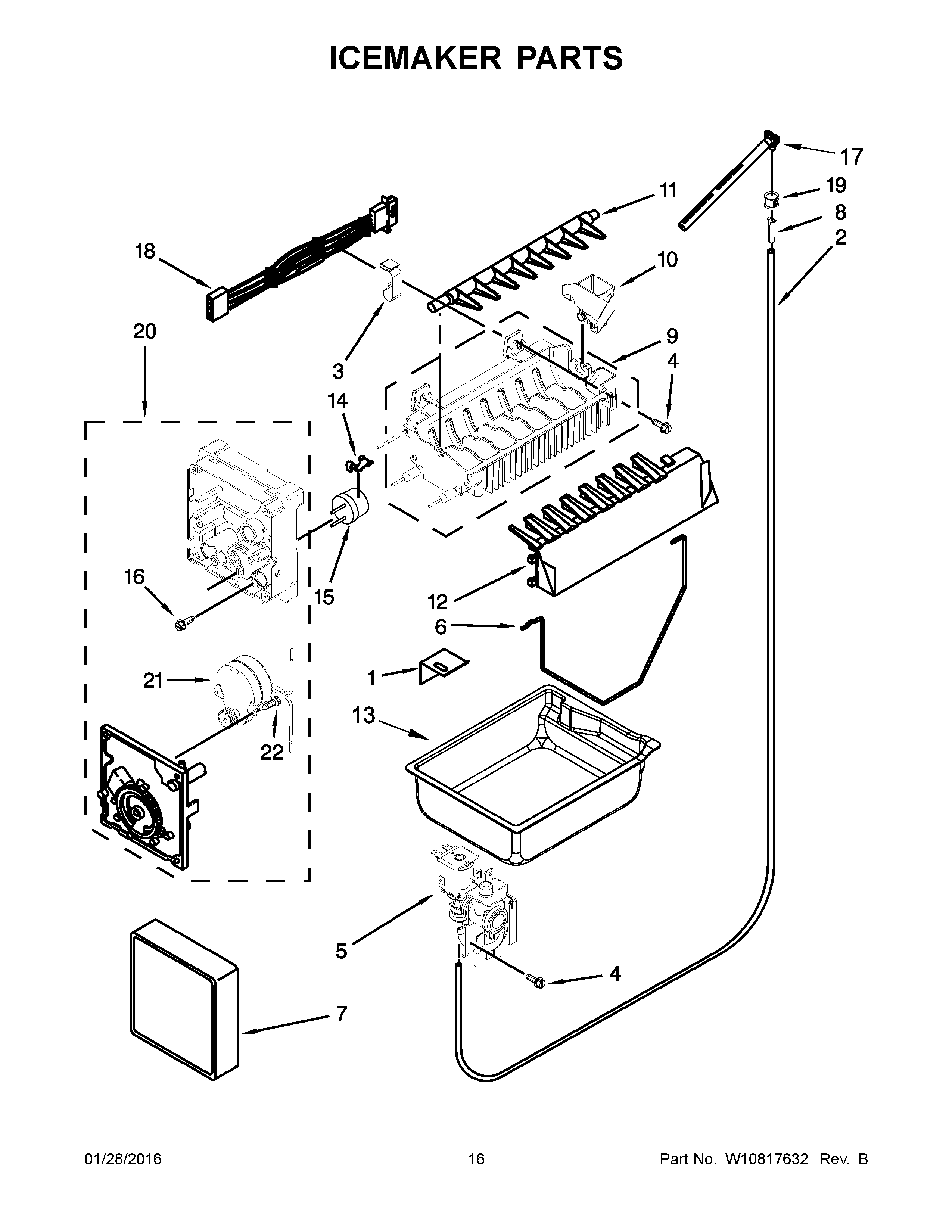

WRF532SMBM01 09 – ICEMAKER PARTS

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
2	W11120581 Whirlpool Refrigerator Water Tube
3	Clamp
4	WPW10068250 Whirlpool Dishwasher Screw
5	VALVE-REFR INLET
6	W11559683 Whirlpool Ice Level Arm
7	W10377174 Whirlpool Refrigerator Front Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10410073 Whirlpool Fill Cup Assembly
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	W10788834 Whirlpool Strip Arm
13	WPW10171529 Whirlpool Refrigerator Ice Pan
14	WP628379 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	W11176463 Whirlpool Refrigerator Water Tube
18	WPW10458985 Whirlpool Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	WPW10281342 Whirlpool Refrigerator Motor Module
21	CABINET (NOT A SERVICEABLE PART)
22	W10001240 Whirlpool Refrigerator Screw
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
