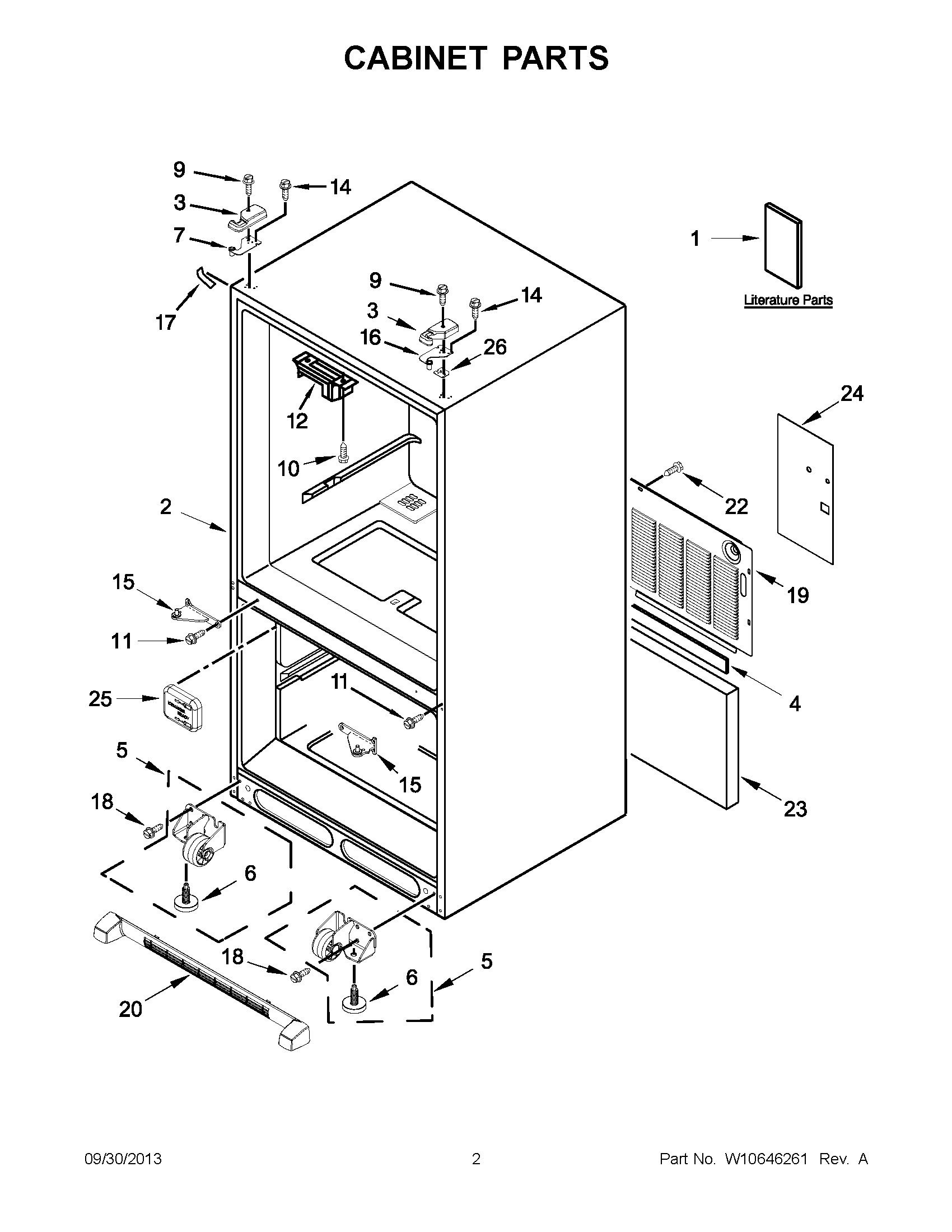

WRF532SNBM00 02 – CABINET PARTS

WRF532SNBM00 02 – CABINET PARTS

Written by

in

WRF532SNBM00 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY GUIDE
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3WPW10337634 Whirlpool Refrigerator Cover
3WP67005956 Whirlpool Refrigerator Cover
3W10337647 Whirlpool Refrigerator Cover
367005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3WPW10191117 Whirlpool Refrigerator Cover
3WPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
9WP8281196 Whirlpool Screw
10W10854958 Whirlpool Refrigerator Screw
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
15W10917988 Whirlpool Refrigerator Door Hinge
1513000002WD Whirlpool Refrigerator Door Hinge
15W10918164 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
15W10918168 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
1867006564 Whirlpool Refrigerator Screw
19WPW10210979 Whirlpool Refrigerator Back Cover
20WPW10534161 Whirlpool Refrigerator Front Grille
20WPW10534160 Whirlpool Refrigerator Front Grille
20WPW10534162 Whirlpool Refrigerator Front Grille
2267006425 Whirlpool Refrigerator Screw
23INSULATION, SOUND
24W11684617 Whirlpool Valve Cover
25WP67001098 Whirlpool Refrigerator Tube Cover
2612999502 Whirlpool Refrigerator Hinge Shim
