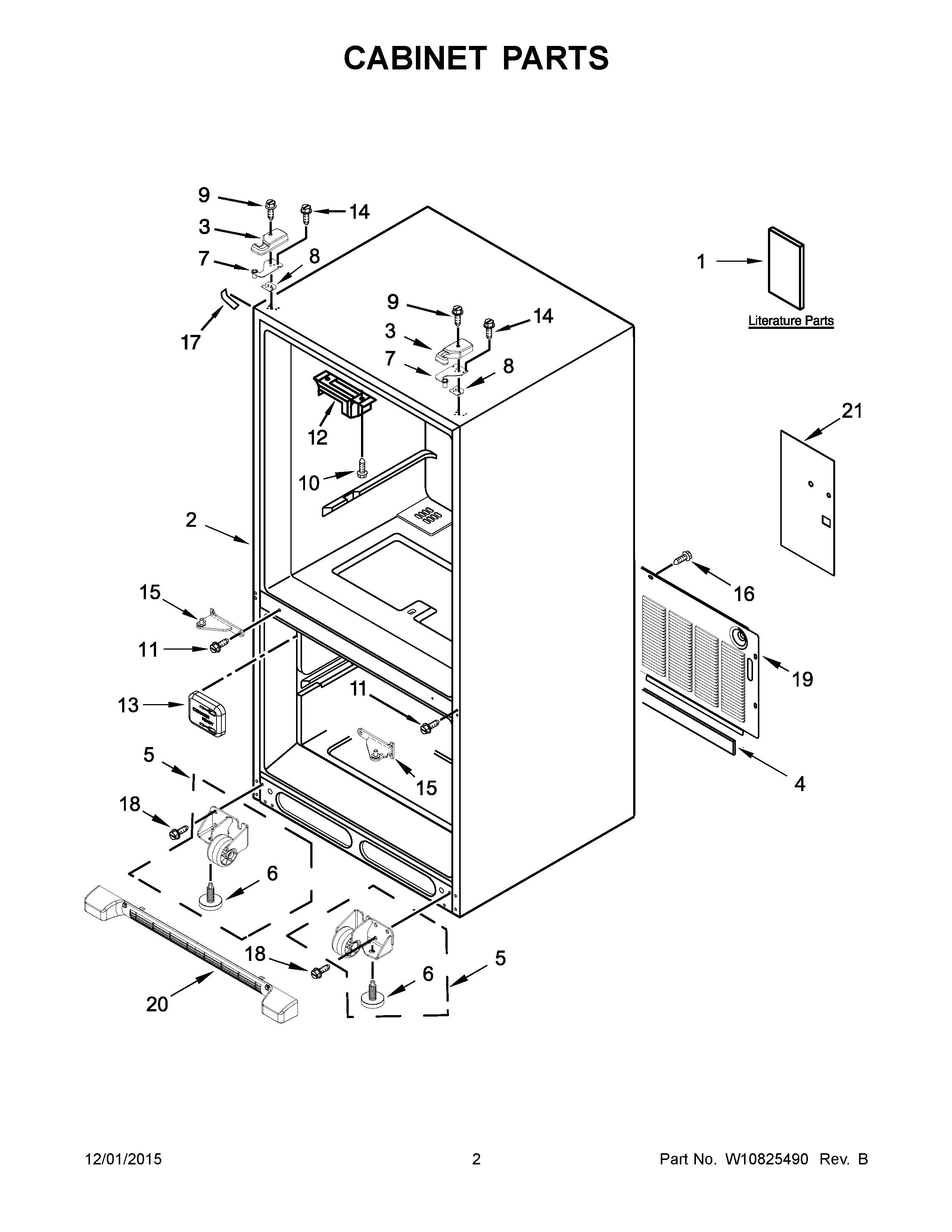

WRF532SNBM01 02 – CABINET PARTS

WRF532SNBM01 02 – CABINET PARTS

Written by

in

WRF532SNBM01 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3AW10337647 Whirlpool Refrigerator Cover
3BWPW10337648 Whirlpool Refrigerator Cover
3DWP67005956 Whirlpool Refrigerator Cover
3EWPW10191117 Whirlpool Refrigerator Cover
3C67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3WPW10337634 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
7AW11592374 Whirlpool Refrigerator Top Door Hinge
812999501 Whirlpool Refrigerator Hinge Shim
8A12999502 Whirlpool Refrigerator Hinge Shim
9WP8281196 Whirlpool Screw
10W10854958 Whirlpool Refrigerator Screw
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
13WP67001098 Whirlpool Refrigerator Tube Cover
15BW10917988 Whirlpool Refrigerator Door Hinge
15C13000002WD Whirlpool Refrigerator Door Hinge
15DW10918168 Whirlpool Refrigerator Door Hinge
15AW10918164 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
1667006425 Whirlpool Refrigerator Screw
17BWP12587703AP Whirlpool Refrigerator Filler
1712587703W Whirlpool Refrigerator Cover
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1867006564 Whirlpool Refrigerator Screw
19WPW10210979 Whirlpool Refrigerator Back Cover
20BWPW10534160 Whirlpool Refrigerator Front Grille
20WPW10534161 Whirlpool Refrigerator Front Grille
20AWPW10534162 Whirlpool Refrigerator Front Grille
21W11684617 Whirlpool Valve Cover
