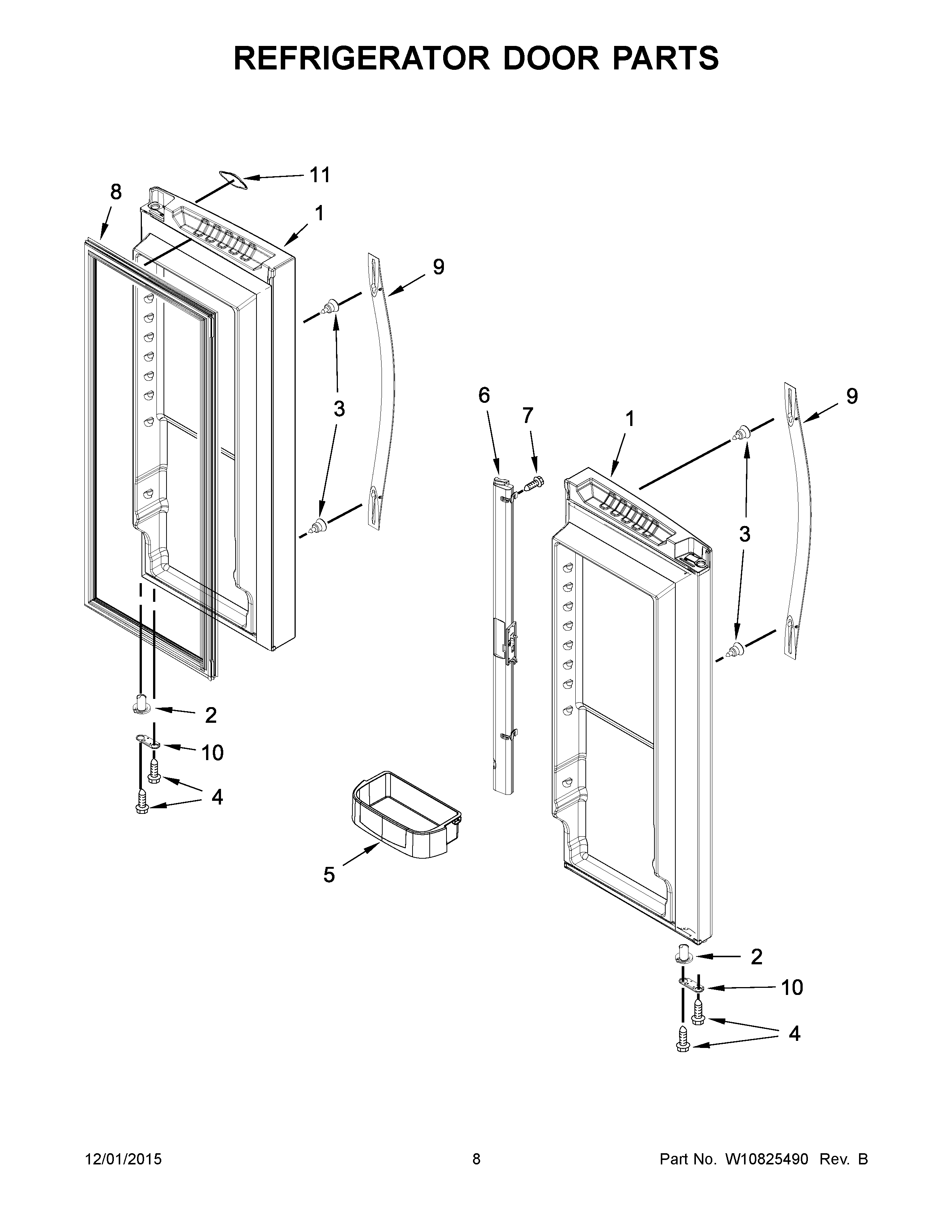

WRF532SNBM01 05 – REFRIGERATOR DOOR PARTS

WRF532SNBM01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF532SNBM01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107883WQ Whirlpool Refrigerator DOR-FIP
1B13107883SQ Whirlpool Refrigerator Foam Assembly
1E13107856SQ Whirlpool Stainless Steel Door
1A13107883BQ Whirlpool Refrigerator Black Foam In Place Doorack
1D13107856BQ Whirlpool Refrigerator Black Foam In Place Doorack
1C13107856WQ Whirlpool Refrigerator DOR-FIP White
2BWP12028505AP Whirlpool Closing Cam
2WP67003638 Whirlpool Closing Cam
2AWP67003639 Whirlpool Refrigerator Closer
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WP98165 Whirlpool Screw
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
5AWPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5CWP12918704 Whirlpool Refrigerator Cantilever Bin
5BWPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6BWP12722803AP Whirlpool Refrigerator Mullion Rail
6AWP12722803B Whirlpool Door Guide
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8W10830287 Whirlpool Refrigerator FIP Gasket
8BW10830283 Whirlpool Refrigerator Door Gasket
8CW10830189 Whirlpool Refrigerator Door Gasket
8DGASKET-FIP
8AW10830289 Whirlpool Refrigerator Gasket FIP
8EGASKET-FIP
9W10830136 Whirlpool Refrigerator Handle
9BW11459378 Whirlpool Refrigerator Handle
9AW10830130 Whirlpool Refrigerator Handle
10BW11703060 Whirlpool Door Stop
1012968202W Whirlpool Refrigerator Door Stop
10AW11708403 Whirlpool Door Stop
11AWPW10393265 Whirlpool Refrigerator Nameplate
11WPW10391355 Whirlpool Refrigerator Nameplate
