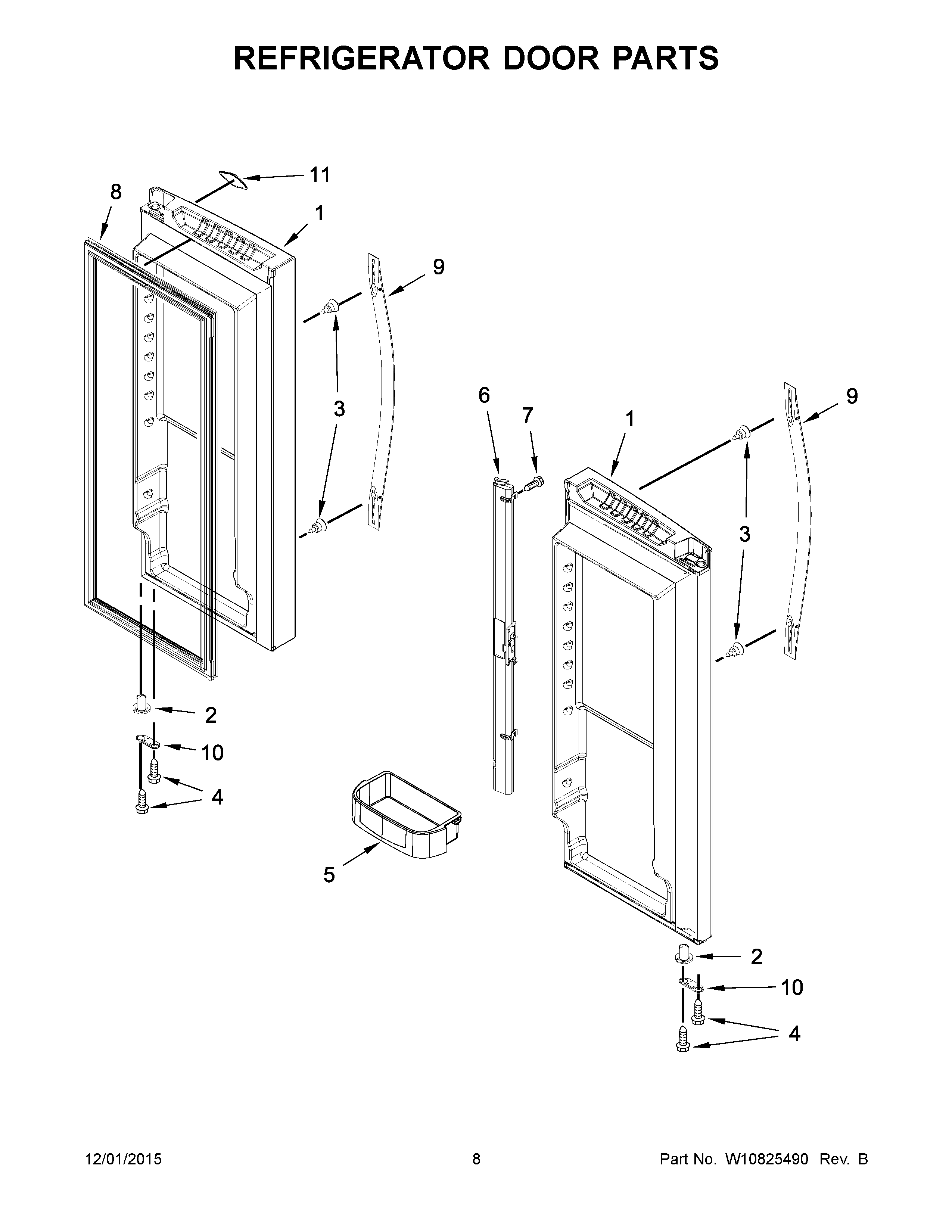

WRF532SNBW01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107883WQ Whirlpool Refrigerator DOR-FIP
1B	13107883SQ Whirlpool Refrigerator Foam Assembly
1E	13107856SQ Whirlpool Stainless Steel Door
1A	13107883BQ Whirlpool Refrigerator Black Foam In Place Doorack
1D	13107856BQ Whirlpool Refrigerator Black Foam In Place Doorack
1C	13107856WQ Whirlpool Refrigerator DOR-FIP White
2B	WP12028505AP Whirlpool Closing Cam
2	WP67003638 Whirlpool Closing Cam
2A	WP67003639 Whirlpool Refrigerator Closer
3	WPW10661886 Whirlpool Refrigerator Door Handle Screw
4	WP98165 Whirlpool Screw
5	WPW10351081 Whirlpool Refrigerator Cantilever Bin
5A	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5C	WP12918704 Whirlpool Refrigerator Cantilever Bin
5B	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6B	WP12722803AP Whirlpool Refrigerator Mullion Rail
6A	WP12722803B Whirlpool Door Guide
6	RAIL-MULLN WHITE
7	W11311945 Whirlpool Refrigerator Screw
8	W10830287 Whirlpool Refrigerator FIP Gasket
8B	W10830283 Whirlpool Refrigerator Door Gasket
8C	W10830189 Whirlpool Refrigerator Door Gasket
8D	GASKET-FIP
8A	W10830289 Whirlpool Refrigerator Gasket FIP
8E	GASKET-FIP
9	W10830136 Whirlpool Refrigerator Handle
9B	W11459378 Whirlpool Refrigerator Handle
9A	W10830130 Whirlpool Refrigerator Handle
10B	W11703060 Whirlpool Door Stop
10	12968202W Whirlpool Refrigerator Door Stop
10A	W11708403 Whirlpool Door Stop
11A	WPW10393265 Whirlpool Refrigerator Nameplate
11	WPW10391355 Whirlpool Refrigerator Nameplate
