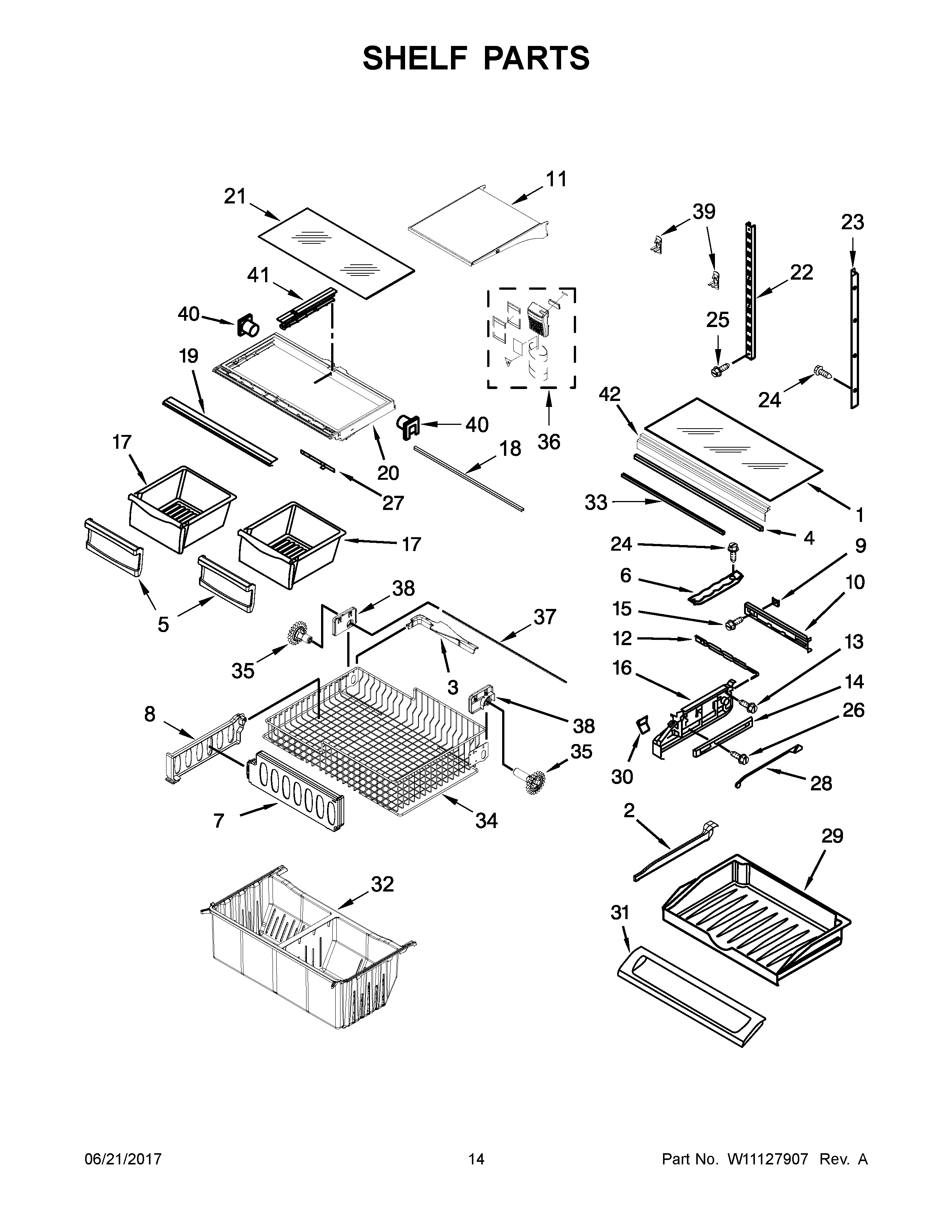

WRF532SNHV00 08 – SHELF PARTS

WRF532SNHV00 08 – SHELF PARTS

Written by

in

WRF532SNHV00 08 – SHELF PARTS

Products

PositionProduct
1WPW10165870 Whirlpool Refrigerator Glass Shelf
2WPW10165967 Whirlpool Divider Assembly
3W10149389 Whirlpool Refrigerator Handle
4W10528936 Whirlpool Refrigerator Trim
5WP67005920 Whirlpool Refrigerator Crisper Drawer Front
6WP67001719 Whirlpool Refrigerator Track
7W10311695 Whirlpool Refrigerator Divider
8W10241046 Whirlpool Refrigerator Divider
9GASKET, PANTRY
10W10165876 Whirlpool Refrigerator Housing
11W10801691 Whirlpool Refrigerator Glass Shelf
12W10165882 Whirlpool Refrigerator Slide
13WP67006415 Whirlpool Refrigerator Screw
14WPW10235370 Whirlpool Refrigerator Glide
1567006425 Whirlpool Refrigerator Screw
16AW11197396 Whirlpool Refrigerator Drawer Slide Rail Endcap Kit
17WP67002633 Whirlpool Crisper Pan
18WP12227303WD Whirlpool Refrigerator Crisper Brace
19WPW10231343 Whirlpool Shelf Trim
20W10858393 Whirlpool Shelf Frame
21WP67006878 Whirlpool Refrigerator Crisper Glass
22W10273463 Whirlpool Refrigerator Ladder
23W10251969 Whirlpool Refrigerator Ladder
24W10215666 Whirlpool Refrigerator Screw
25WP489474 Whirlpool Refrigerator Screw
26WP98165 Whirlpool Screw
27SLIDE
28W10165910 Whirlpool Refrigerator Rod
29W11513151 Whirlpool Refrigerator Utility Pan
30W11498983 Whirlpool Refrigerator Knob
31W10827914 Whirlpool Refrigerator Pantry Drawer Top Front Lid
32W11127323 Whirlpool Refrigerator Freezer Bin
33W10783763 Whirlpool Refrigerator Brace
34W10348238 Whirlpool Refrigerator Freezer Basket
35AWPW10474715 Whirlpool Refrigerator Gear
35WPW10474716 Whirlpool Refrigerator Gear
36ASSEMBLY, PRODUCE PRESERVER
37W10802339 Whirlpool Refrigerator Shaft
38W10348259 Whirlpool Refrigerator Bracket Assembly
38AW10348260 Whirlpool Refrigerator Bracket
39WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
40AWP67001722 Whirlpool Refrigerator Support
40WP67001721 Whirlpool Refrigerator Support
41RAIL-CENTR CRISPER
42W11245261 Whirlpool Refrigerator Trim
