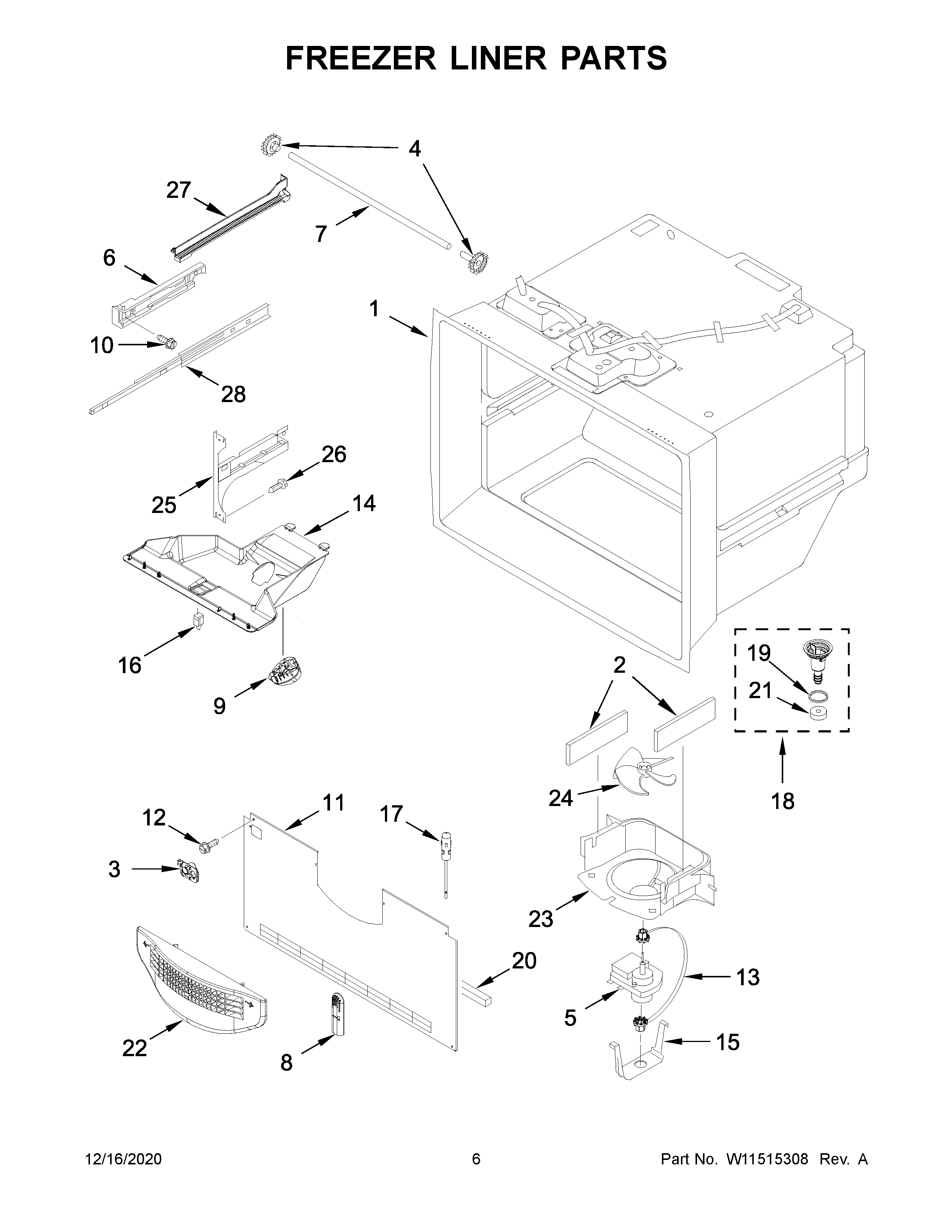

WRF532SNHV02 04 – FREEZER LINER PARTS

WRF532SNHV02 04 – FREEZER LINER PARTS

Written by

in

WRF532SNHV02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11448709 Whirlpool Refrigerator Bracket
412002497 Whirlpool Refrigerator Drawer Gear Kit
5MOTOR-EVAP
6AWPW10284685 Whirlpool Refrigerator Bracket
6WPW10284684 Whirlpool Refrigerator Bracket
7W11715937 Whirlpool Shaft
8WP67003924 Whirlpool Refrigerator Cover
9MODULE
10WP489474 Whirlpool Refrigerator Screw
11W10308415 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13W11690160 Whirlpool Grommet
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
1712002355 Whirlpool Refrigerator Thermistor Kit
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20W11159742 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25WPW10330991 Whirlpool Refrigerator Bracket
25AWPW10330993 Whirlpool Refrigerator Bracket
26WP98165 Whirlpool Screw
27AW11489994 Whirlpool Refrigerator Rail
27W11489993 Whirlpool Refrigerator Rail
28W11658402 Whirlpool Drawer Slide Rail
