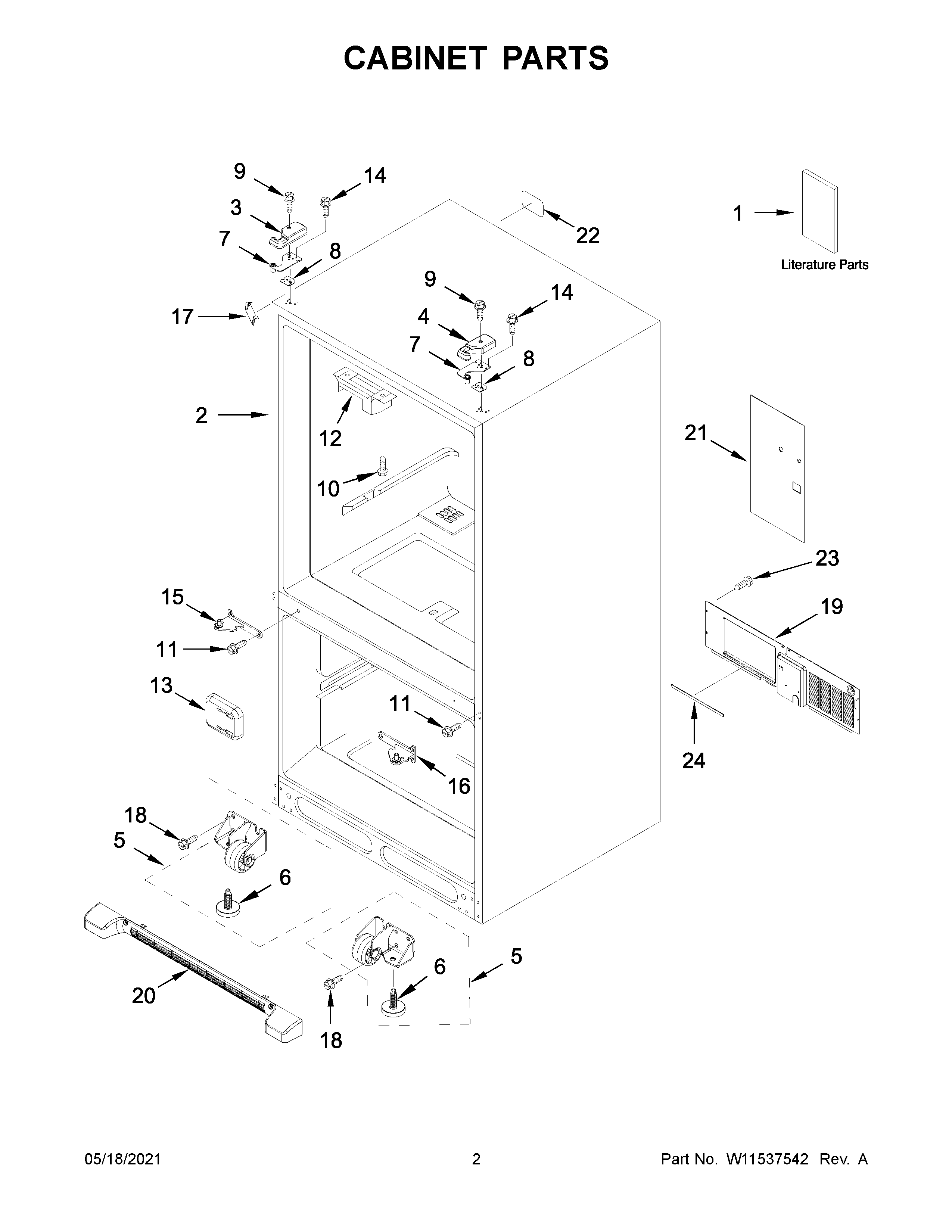

WRF532SNHV03 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	W10337647 Whirlpool Refrigerator Cover
4	WP67005956 Whirlpool Refrigerator Cover
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
8A	12999502 Whirlpool Refrigerator Hinge Shim
8	12999501 Whirlpool Refrigerator Hinge Shim
9	WP8281196 Whirlpool Screw
10	W11693756 Whirlpool Screw Assembly
11	W11573362 Whirlpool Screw Assembly
12	WP67003405 Whirlpool Pivot Block
13	COVER. FILL TUBE
14	WP489349 Whirlpool Refrigerator Screw
15	W10918166 Whirlpool Refrigerator Door Hinge
16	W10918168 Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	67006564 Whirlpool Refrigerator Screw
19	WPW10210979 Whirlpool Refrigerator Back Cover
20	WPW10534162 Whirlpool Refrigerator Front Grille
21	W11684617 Whirlpool Valve Cover
22	W11685757 Whirlpool Label
23	SCREW
24	B5759655 Whirlpool Refrigerator Gasket
