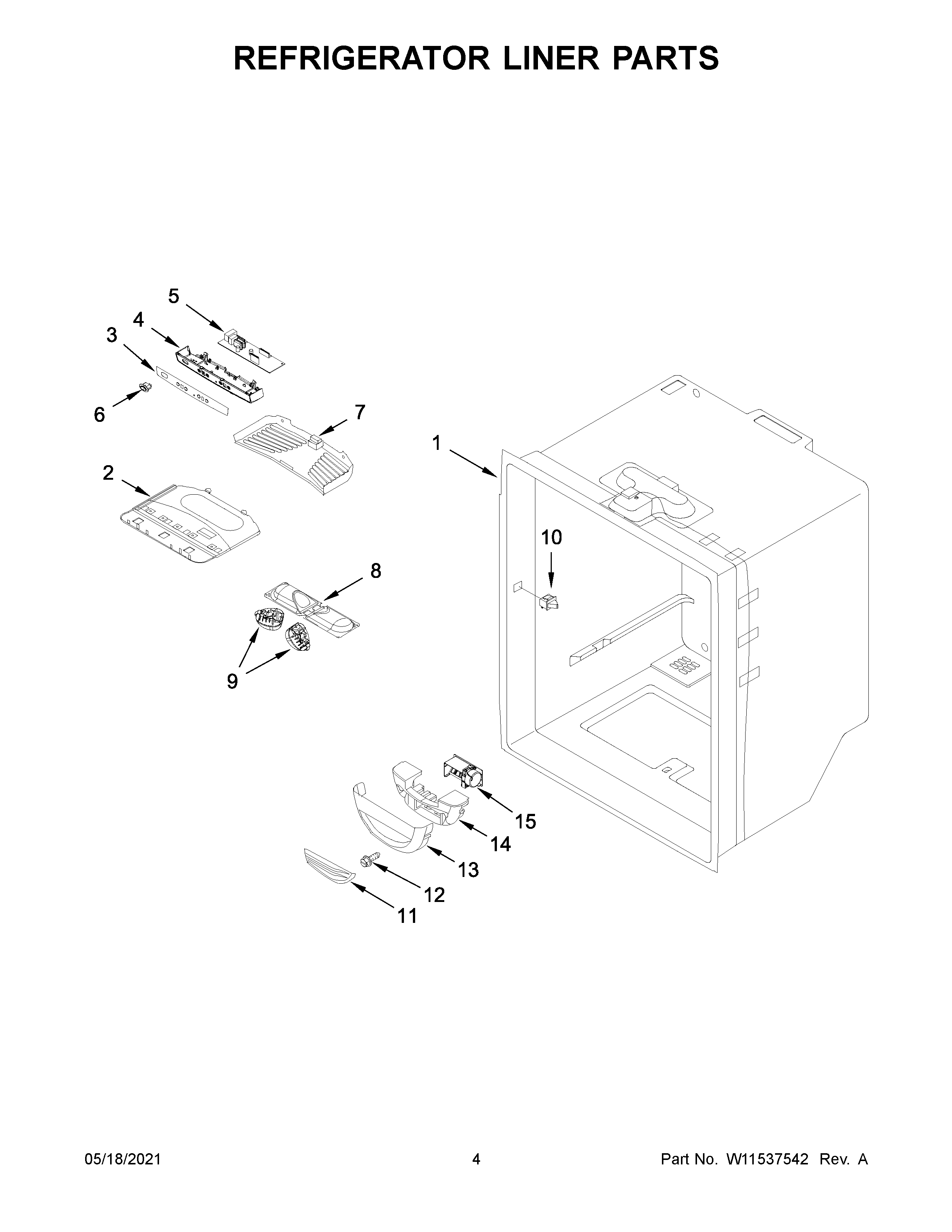

WRF532SNHV03 03 – REFRIGERATOR LINER PARTS

WRF532SNHV03 03 – REFRIGERATOR LINER PARTS

Written by

in

WRF532SNHV03 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11469744 Whirlpool Refrigerator Wire Harness
2W10464766 Whirlpool Refrigerator Housing Assembly
3W11469742 Whirlpool Refrigerator Overlay
4W11469741 Whirlpool Refrigerator Housing
5W11524469-includeCORE Whirlpool W11524469 Refrigerator Electronic Control Board
6W11469740 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10W11291138 Whirlpool Refrigerator Door Switch
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
