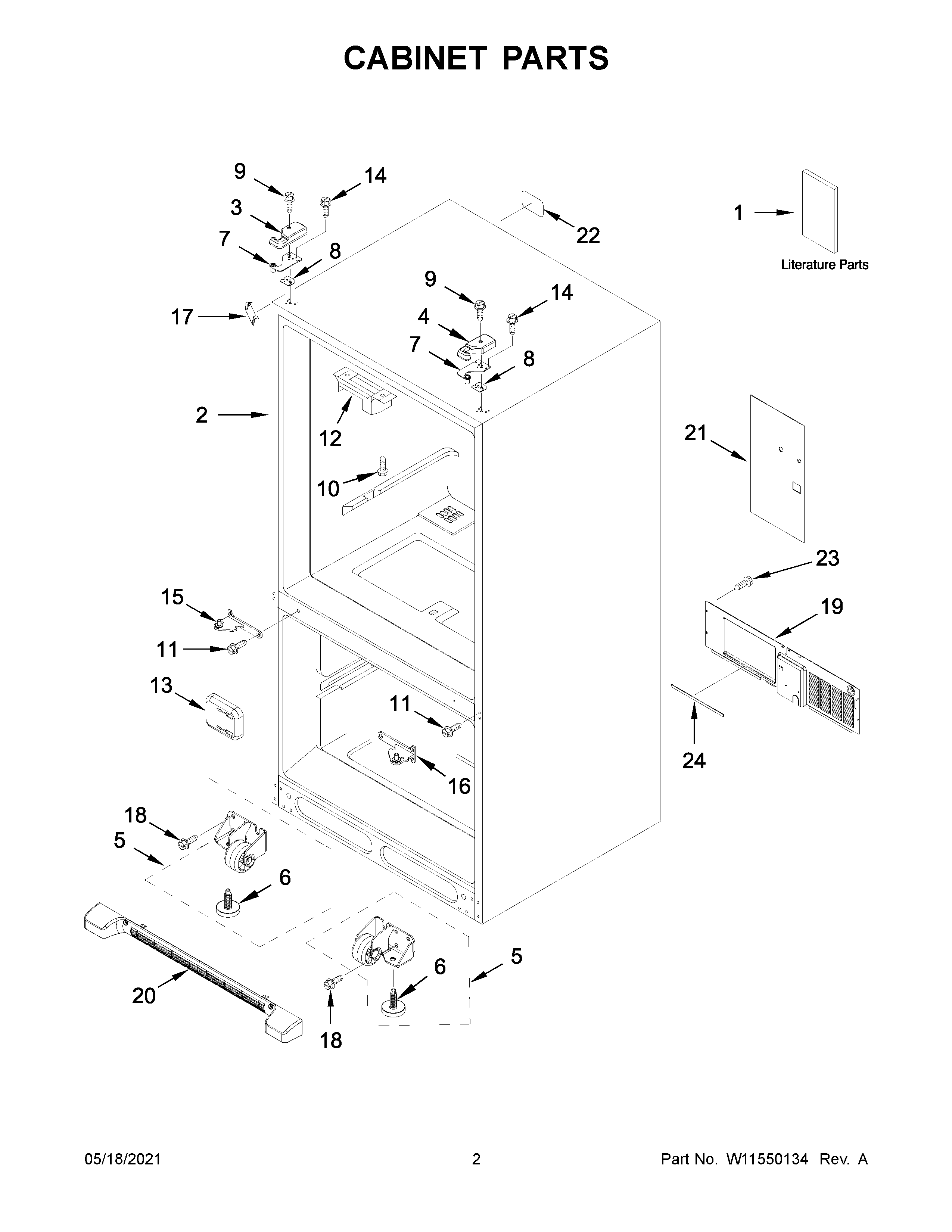

WRF532SNHV04 02 – CABINET PARTS

WRF532SNHV04 02 – CABINET PARTS

Written by

in

WRF532SNHV04 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3W10337647 Whirlpool Refrigerator Cover
4WP67005956 Whirlpool Refrigerator Cover
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
812999501 Whirlpool Refrigerator Hinge Shim
8A12999502 Whirlpool Refrigerator Hinge Shim
9WP8281196 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11W11573362 Whirlpool Screw Assembly
12WP67003405 Whirlpool Pivot Block
13COVER. FILL TUBE
14WP489349 Whirlpool Refrigerator Screw
15W10918166 Whirlpool Refrigerator Door Hinge
16W10918168 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1867006564 Whirlpool Refrigerator Screw
19WPW10210979 Whirlpool Refrigerator Back Cover
20WPW10534162 Whirlpool Refrigerator Front Grille
21W11684617 Whirlpool Valve Cover
22W11685757 Whirlpool Label
23SCREW
24GASKET
