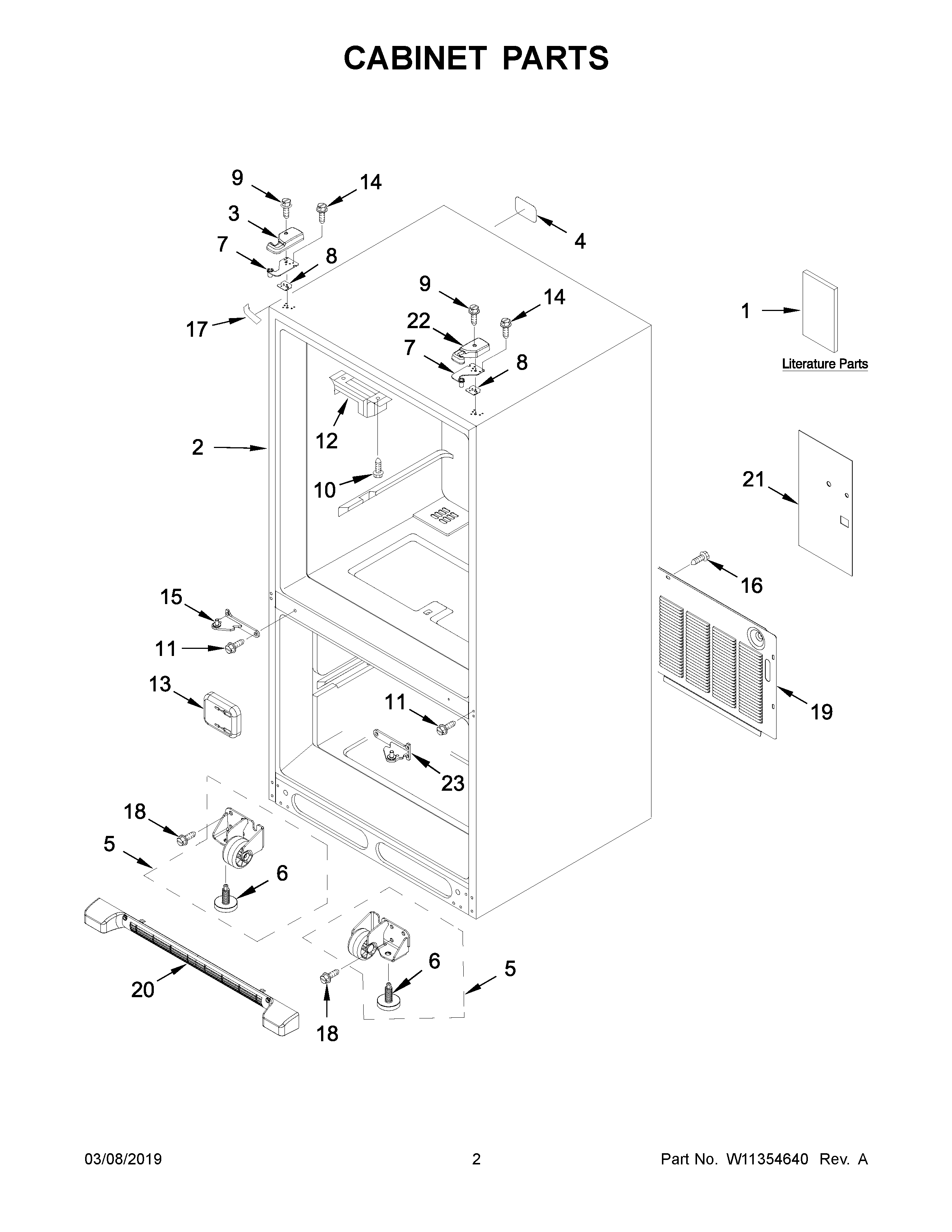

WRF532SNHW01 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1AENERGY GUIDE
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3WPW10337634 Whirlpool Refrigerator Cover
4W11685757 Whirlpool Label
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
812999501 Whirlpool Refrigerator Hinge Shim
8A12999502 Whirlpool Refrigerator Hinge Shim
9WP8281196 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
13COVER, FILL TUBE
15W10918115 Whirlpool Refrigerator Door Hinge
1667006425 Whirlpool Refrigerator Screw
1712587703W Whirlpool Refrigerator Cover
1867006564 Whirlpool Refrigerator Screw
19WPW10210979 Whirlpool Refrigerator Back Cover
20WPW10534161 Whirlpool Refrigerator Front Grille
21W11684617 Whirlpool Valve Cover
2267005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
23W10918117 Whirlpool Refrigerator Door Hinge
