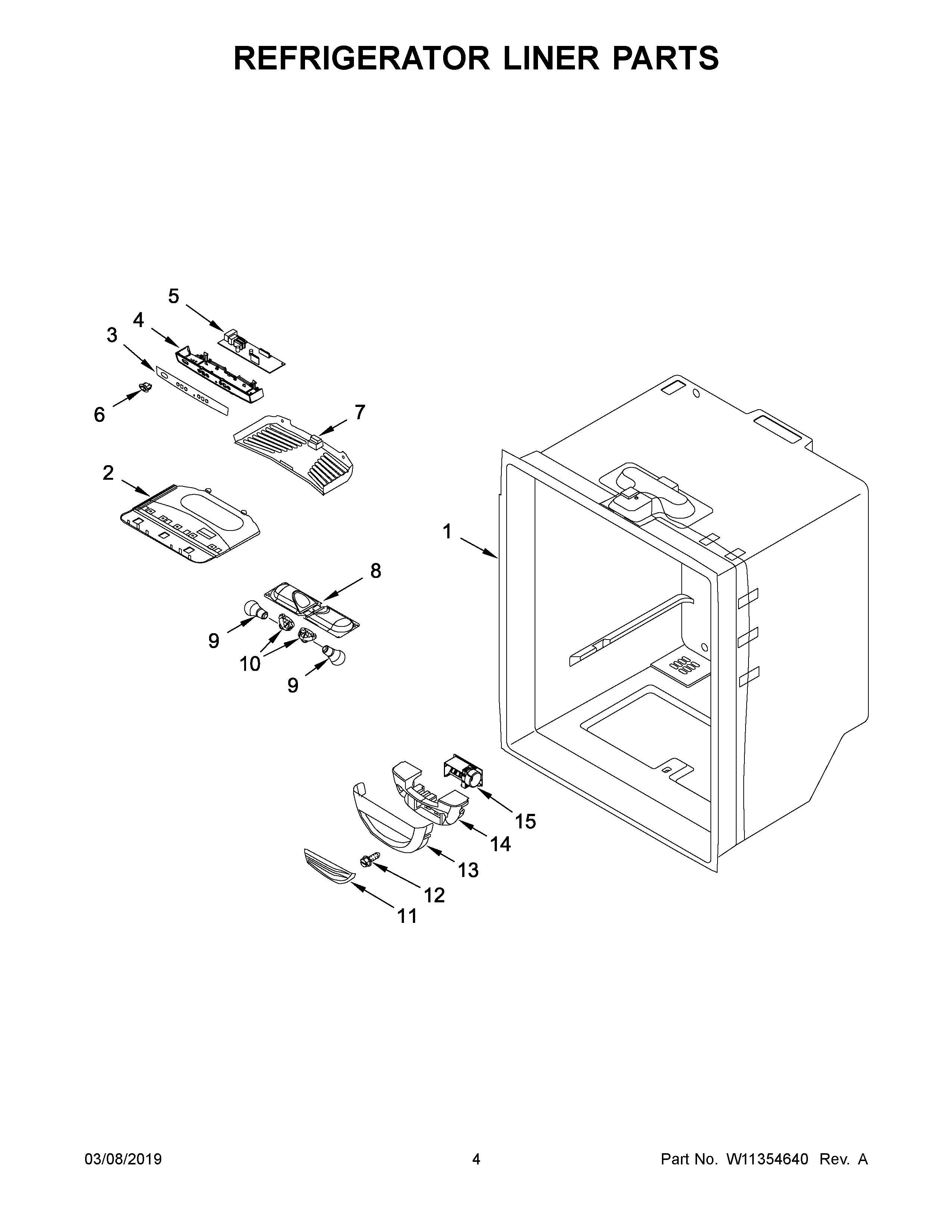

WRF532SNHW01 03 – REFRIGERATOR LINER PARTS

WRF532SNHW01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRF532SNHW01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
2W10464766 Whirlpool Refrigerator Housing Assembly
5WPW10637328-includeCORE Whirlpool WPW10637328 Refrigerator Electronic Control Board + Core
6W11478401 Whirlpool Refrigerator Housing
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11107911 Whirlpool Refrigerator Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
