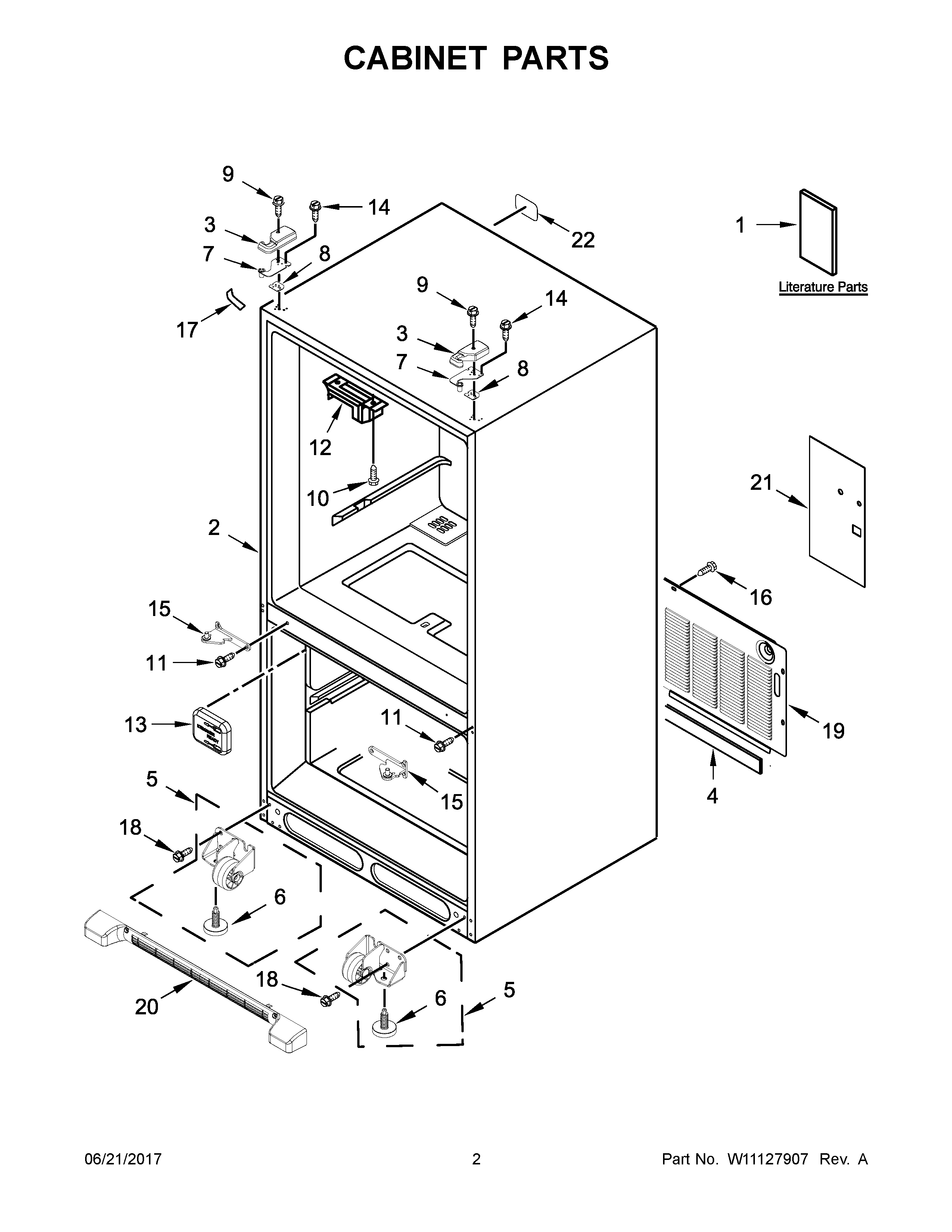

WRF532SNHZ00 02 – CABINET PARTS

WRF532SNHZ00 02 – CABINET PARTS

Written by

in

WRF532SNHZ00 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3D	WP67005956 Whirlpool Refrigerator Cover
3C	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3	WPW10337634 Whirlpool Refrigerator Cover
3E	WPW10191117 Whirlpool Refrigerator Cover
3A	W10337647 Whirlpool Refrigerator Cover
3B	WPW10337648 Whirlpool Refrigerator Cover
4	B5759655 Whirlpool Refrigerator Gasket
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
8A	12999502 Whirlpool Refrigerator Hinge Shim
8	12999501 Whirlpool Refrigerator Hinge Shim
9	WP8281196 Whirlpool Screw
10	W10854958 Whirlpool Refrigerator Screw
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	WP67001098 Whirlpool Refrigerator Tube Cover
15A	W10918166 Whirlpool Refrigerator Door Hinge
15E	HINGE-DOOR
15B	W10917991 Whirlpool Refrigerator Door Hinge
15	W10918115 Whirlpool Refrigerator Door Hinge
15C	W10918117 Whirlpool Refrigerator Door Hinge
15D	W10918168 Whirlpool Refrigerator Door Hinge
16	67006425 Whirlpool Refrigerator Screw
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
17B	WP12587703AP Whirlpool Refrigerator Filler
17	12587703W Whirlpool Refrigerator Cover
18	67006564 Whirlpool Refrigerator Screw
19	WPW10210979 Whirlpool Refrigerator Back Cover
20B	WPW10534160 Whirlpool Refrigerator Front Grille
20A	WPW10534162 Whirlpool Refrigerator Front Grille
20	WPW10534161 Whirlpool Refrigerator Front Grille
21	W11684617 Whirlpool Valve Cover
22	W11685757 Whirlpool Label
