WRF532SNHZ00 05 – REFRIGERATOR DOOR PARTS

WRF532SNHZ00 05 – REFRIGERATOR DOOR PARTS

Written by

in

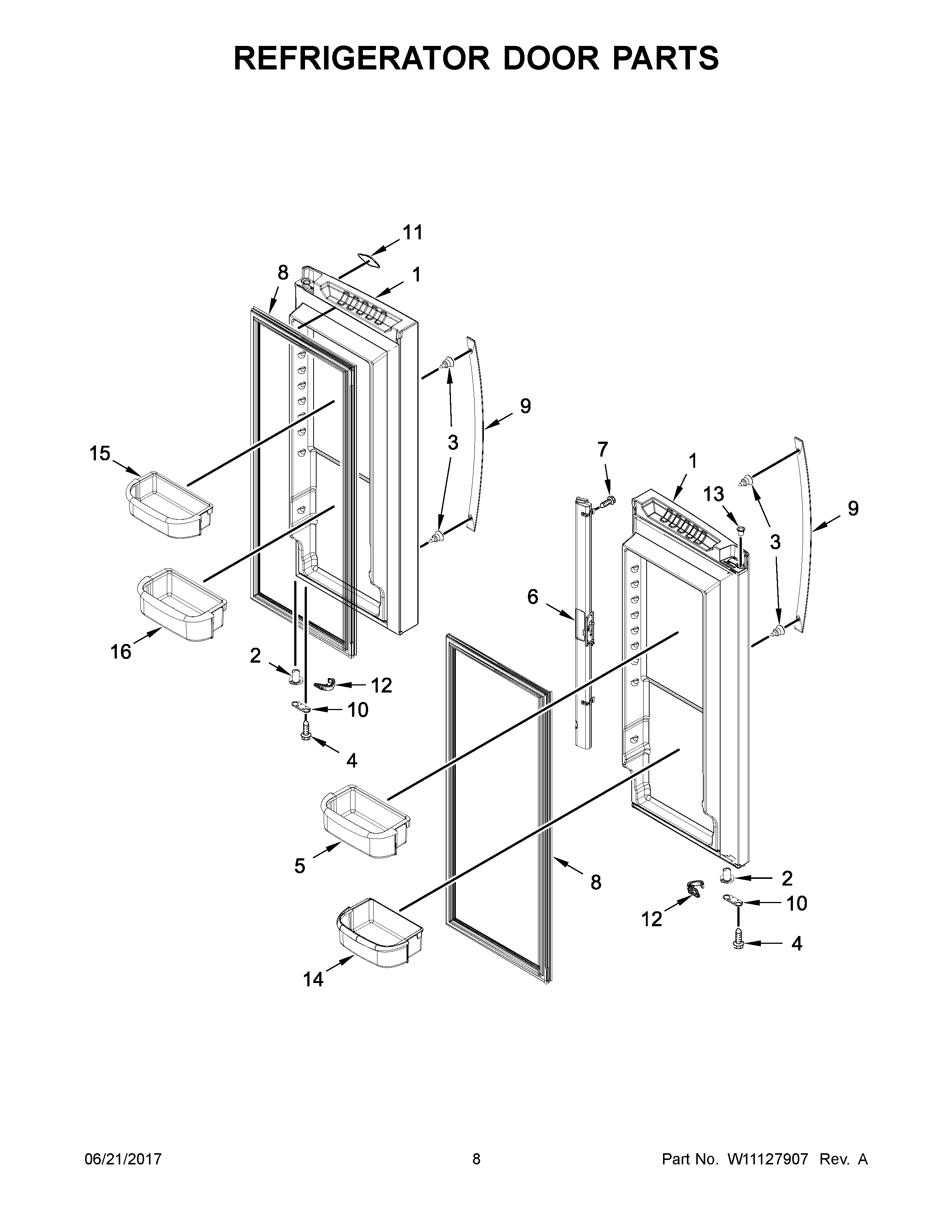

WRF532SNHZ00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1EW10910855 Whirlpool Refrigerator Door Assembly
1AW10919650 Whirlpool Refrigerator Door Assembly
1BW10915644 Whirlpool Refrigerator Door Assembly
113107886WQ Whirlpool Refrigerator Door FIP White
1C13107885WQ Whirlpool Refrigerator DOR-FIP White
1DW10919655 Whirlpool Refrigerator Door Assembly
2WP67003638 Whirlpool Closing Cam
2AWP67003639 Whirlpool Refrigerator Closer
2BWP12028505AP Whirlpool Closing Cam
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WP98165 Whirlpool Screw
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
6RAIL-MULLN WHITE
6BWP12722803AP Whirlpool Refrigerator Mullion Rail
6AWP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8EGASKET-FIP
8DGASKET-FIP
8CW10830189 Whirlpool Refrigerator Door Gasket
8AW10830289 Whirlpool Refrigerator Gasket FIP
8W10830287 Whirlpool Refrigerator FIP Gasket
8BW10830283 Whirlpool Refrigerator Door Gasket
9BW11123099 Whirlpool Refrigerator Exterior Door Handle
9AW11125624 Whirlpool Door Handle
9W11127179 Whirlpool Refrigerator Handle
10BW11703060 Whirlpool Door Stop
10AW11708403 Whirlpool Door Stop
1012968202W Whirlpool Refrigerator Door Stop
11W11223753 Whirlpool Refrigerator Nameplate
12DW10918171 Whirlpool Refrigerator Closer
12BW10918008 Whirlpool Refrigerator Closer
12AW10918170 Whirlpool Refrigerator Closer
12EW10918010 Whirlpool Refrigerator Closer
12W10918118 Whirlpool Refrigerator Door Closer
12CW10918120 Whirlpool Refrigerator Closer
1312996601 Whirlpool Refrigerator Bushing Clip
14WP12918704 Whirlpool Refrigerator Cantilever Bin
15WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
16WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
