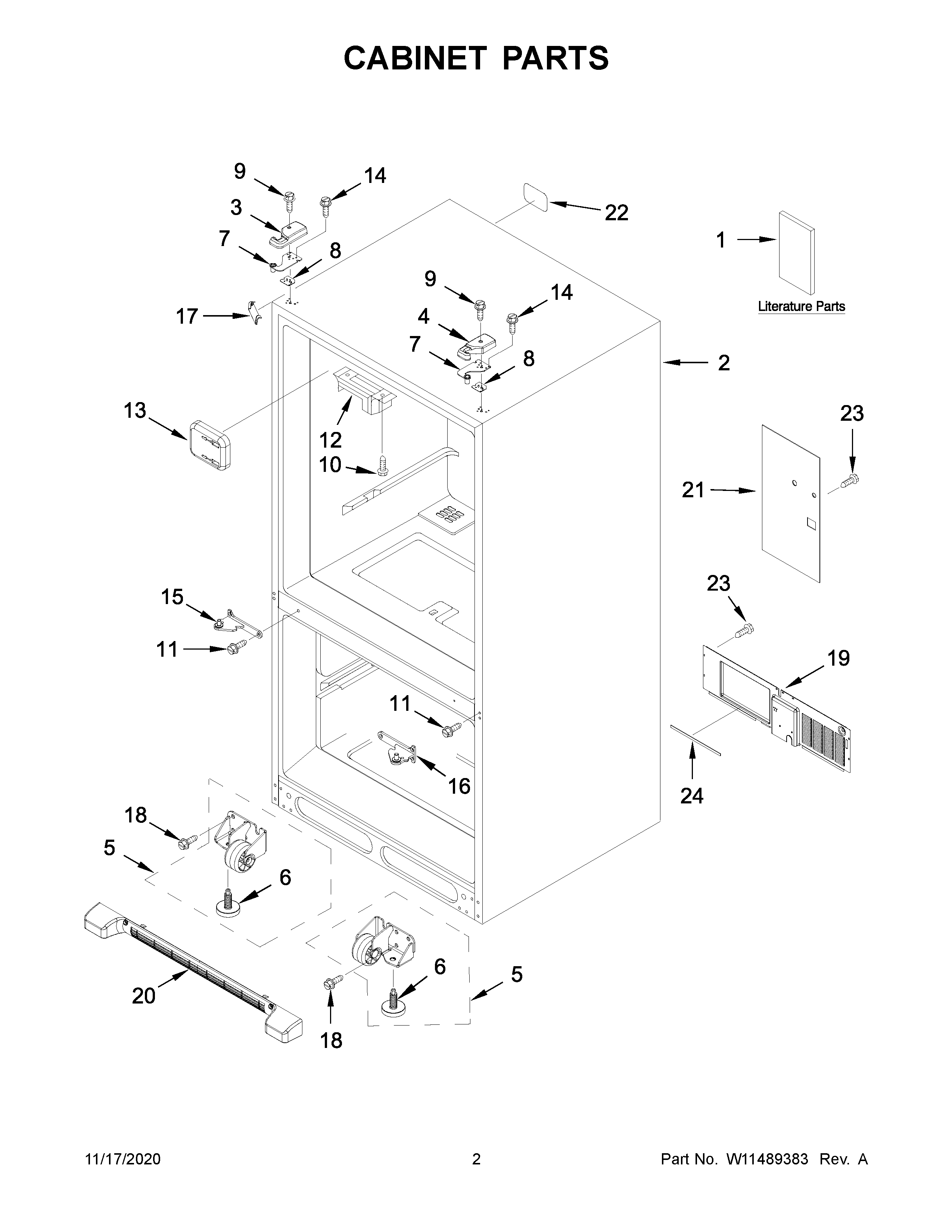

WRF532SNHZ04 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	WPW10337648 Whirlpool Refrigerator Cover
4	WPW10191117 Whirlpool Refrigerator Cover
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
7	W11592375 Whirlpool Door Hinge
8	12999501 Whirlpool Refrigerator Hinge Shim
8A	12999502 Whirlpool Refrigerator Hinge Shim
9	WP8281196 Whirlpool Screw
10	W11693756 Whirlpool Screw Assembly
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	COVER, FILL TUBE
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	67006564 Whirlpool Refrigerator Screw
19	WPW10210979 Whirlpool Refrigerator Back Cover
20	WPW10534160 Whirlpool Refrigerator Front Grille
21	W11684617 Whirlpool Valve Cover
22	W11685757 Whirlpool Label
23	SCREW
24	B5759655 Whirlpool Refrigerator Gasket
