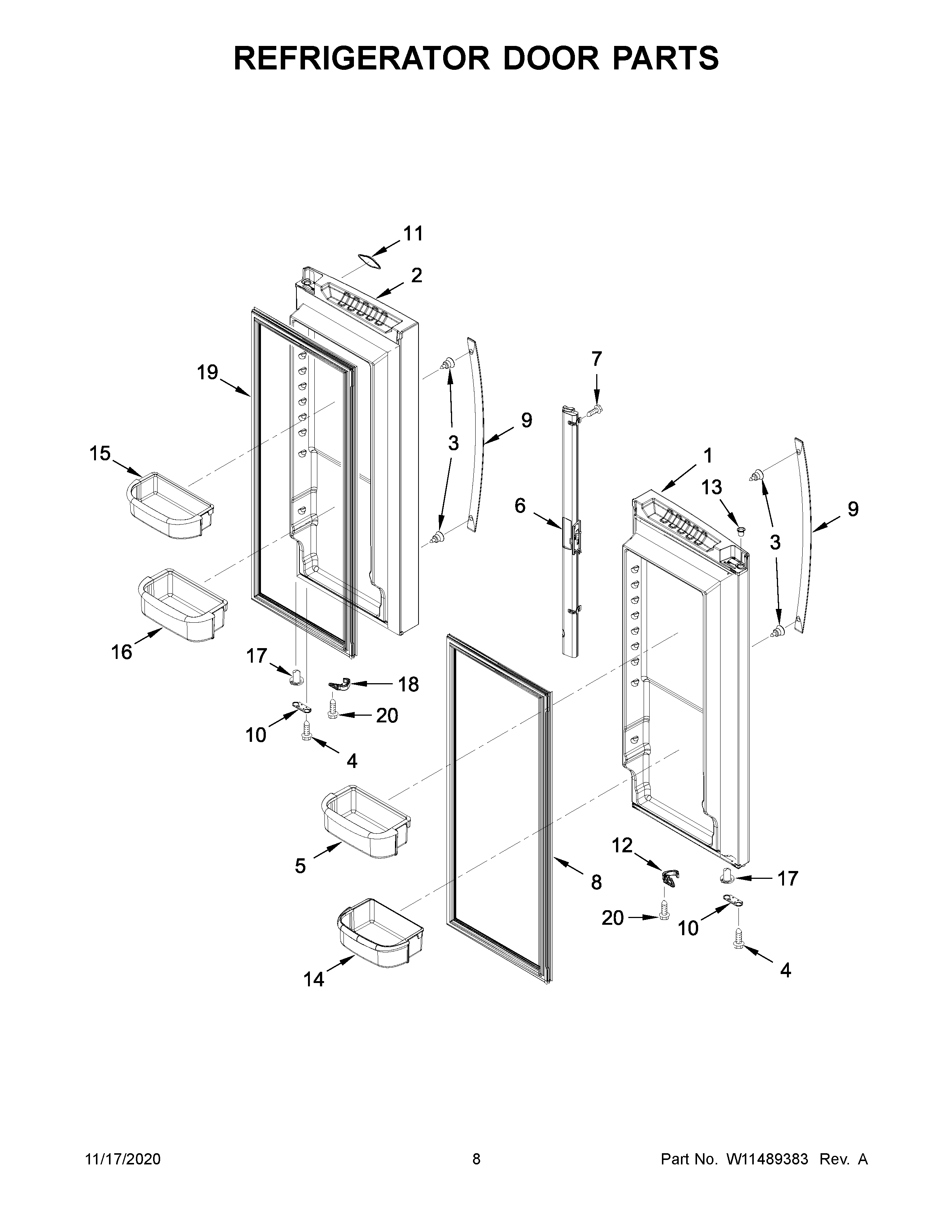

WRF532SNHZ04 05 – REFRIGERATOR DOOR PARTS

WRF532SNHZ04 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF532SNHZ04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11436984 Whirlpool Refrigerator Door Assembly
2W11436987 Whirlpool Refrigerator Door Assembly
3W11449276 Whirlpool Handle Support
4WP98165 Whirlpool Screw
5WPW10351081 Whirlpool Refrigerator Cantilever Bin
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W10830283 Whirlpool Refrigerator Door Gasket
9HANDLE-REFRIGERATOR SS
10W11703060 Whirlpool Door Stop
11W11223753 Whirlpool Refrigerator Nameplate
12W10918008 Whirlpool Refrigerator Closer
1312996601 Whirlpool Refrigerator Bushing Clip
14WP12918704 Whirlpool Refrigerator Cantilever Bin
15WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
16WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
17WP12028505AP Whirlpool Closing Cam
18W10918010 Whirlpool Refrigerator Closer
19GASKET-FIP
20WP67006908 Whirlpool Refrigerator Screw
