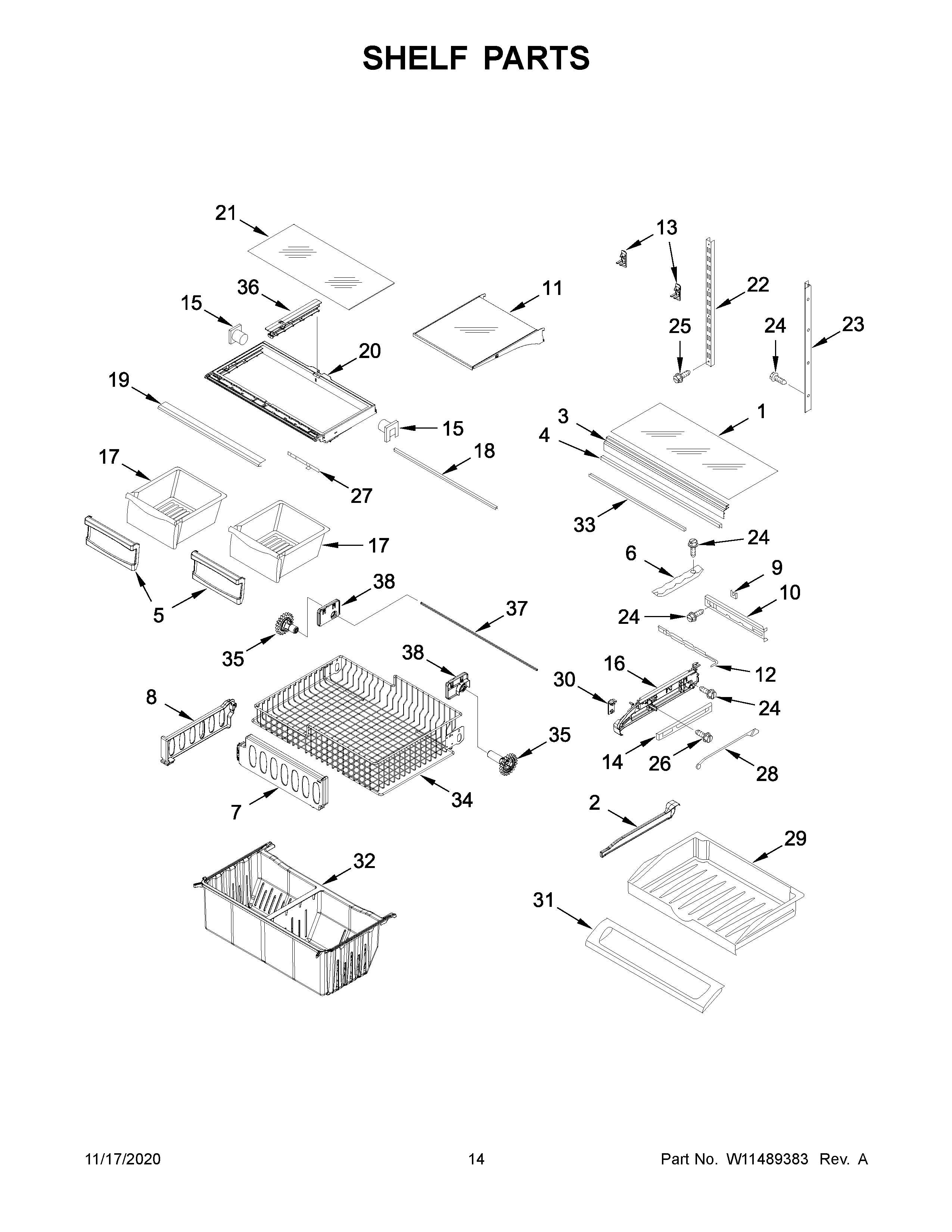

WRF532SNHZ04 08 – SHELF PARTS

WRF532SNHZ04 08 – SHELF PARTS

Written by

in

WRF532SNHZ04 08 – SHELF PARTS

Products

Position	Product
1	WPW10165870 Whirlpool Refrigerator Glass Shelf
2	WPW10165967 Whirlpool Divider Assembly
3	W11245261 Whirlpool Refrigerator Trim
4	W10528936 Whirlpool Refrigerator Trim
5	WP67005920 Whirlpool Refrigerator Crisper Drawer Front
6	WP67001719 Whirlpool Refrigerator Track
7	W10311695 Whirlpool Refrigerator Divider
8	W10241046 Whirlpool Refrigerator Divider
9	GASKET, PANTRY
10	W10165876 Whirlpool Refrigerator Housing
11	W10801691 Whirlpool Refrigerator Glass Shelf
12	W10165882 Whirlpool Refrigerator Slide
13	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
14	WPW10235370 Whirlpool Refrigerator Glide
15A	WP67001722 Whirlpool Refrigerator Support
15	WP67001721 Whirlpool Refrigerator Support
16A	W11222066 Whirlpool Refrigerator Endcap
16	W11222065 Whirlpool Drawer Support
17	WP67002633 Whirlpool Crisper Pan
18	WP12227303WD Whirlpool Refrigerator Crisper Brace
19	WPW10231343 Whirlpool Shelf Trim
20	W10858393 Whirlpool Shelf Frame
21	WP67006878 Whirlpool Refrigerator Crisper Glass
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251969 Whirlpool Refrigerator Ladder
24	67006425 Whirlpool Refrigerator Screw
25	W10215666 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	SLIDE
28	W10165910 Whirlpool Refrigerator Rod
29	W11513151 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	W10827914 Whirlpool Refrigerator Pantry Drawer Top Front Lid
32	W11127323 Whirlpool Refrigerator Freezer Bin
33	W10783763 Whirlpool Refrigerator Brace
34	W11281084 Whirlpool Refrigerator Freezer Basket
35A	WPW10474715 Whirlpool Refrigerator Gear
35	WPW10474716 Whirlpool Refrigerator Gear
36	RAIL-CENTR CRISPER
37	W10802339 Whirlpool Refrigerator Shaft
38	W10348259 Whirlpool Refrigerator Bracket Assembly
38A	W10348260 Whirlpool Refrigerator Bracket
