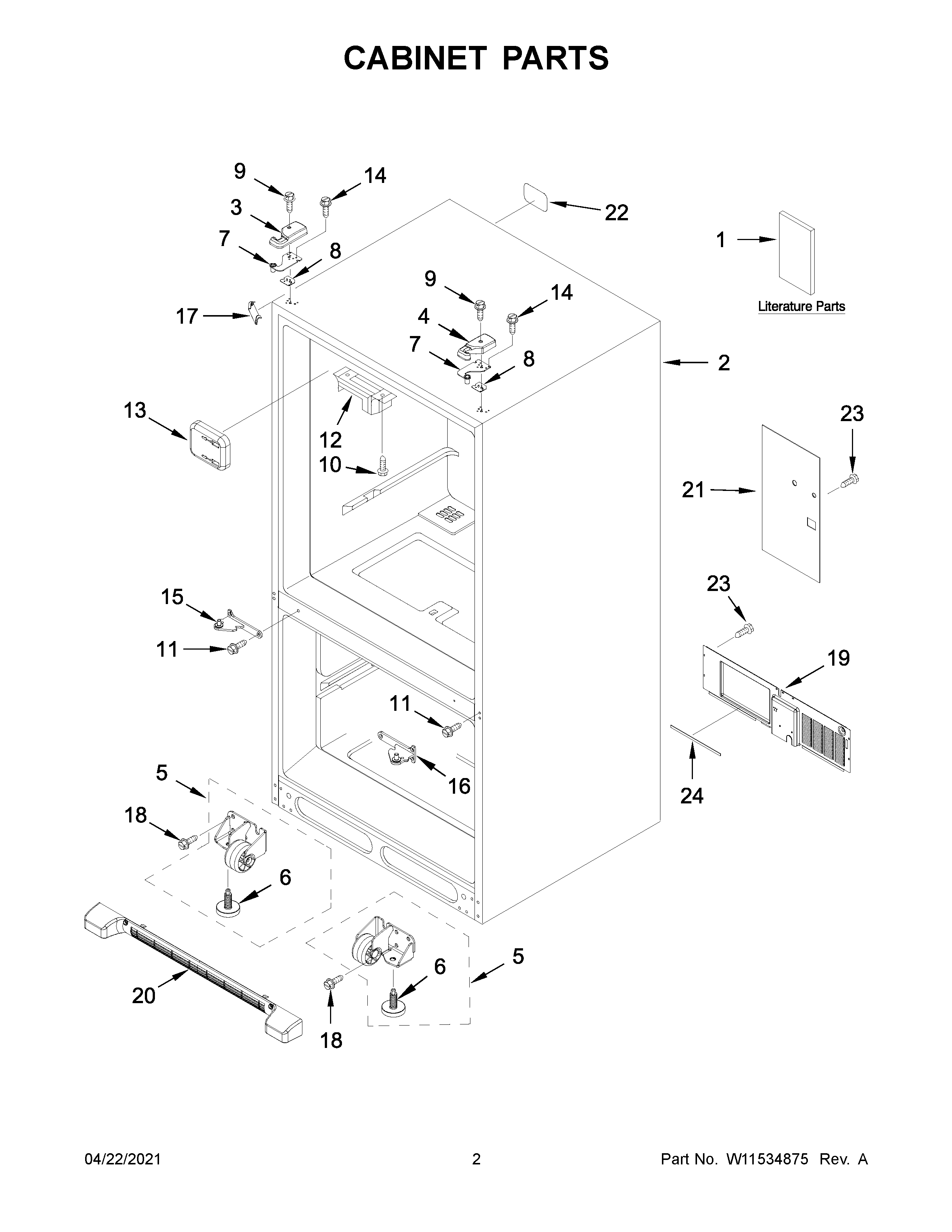

WRF532SNHZ05 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1AENERGY GUIDE
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4WPW10191117 Whirlpool Refrigerator Cover
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
7AW11592374 Whirlpool Refrigerator Top Door Hinge
812999501 Whirlpool Refrigerator Hinge Shim
8A12999502 Whirlpool Refrigerator Hinge Shim
9WP8281196 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
13COVER. FILL TUBE
15W10917991 Whirlpool Refrigerator Door Hinge
16HINGE-DOOR
17WP12587703AP Whirlpool Refrigerator Filler
1867006564 Whirlpool Refrigerator Screw
19WPW10210979 Whirlpool Refrigerator Back Cover
20WPW10534160 Whirlpool Refrigerator Front Grille
21W11684617 Whirlpool Valve Cover
22W11685757 Whirlpool Label
23SCREW
24B5759655 Whirlpool Refrigerator Gasket
