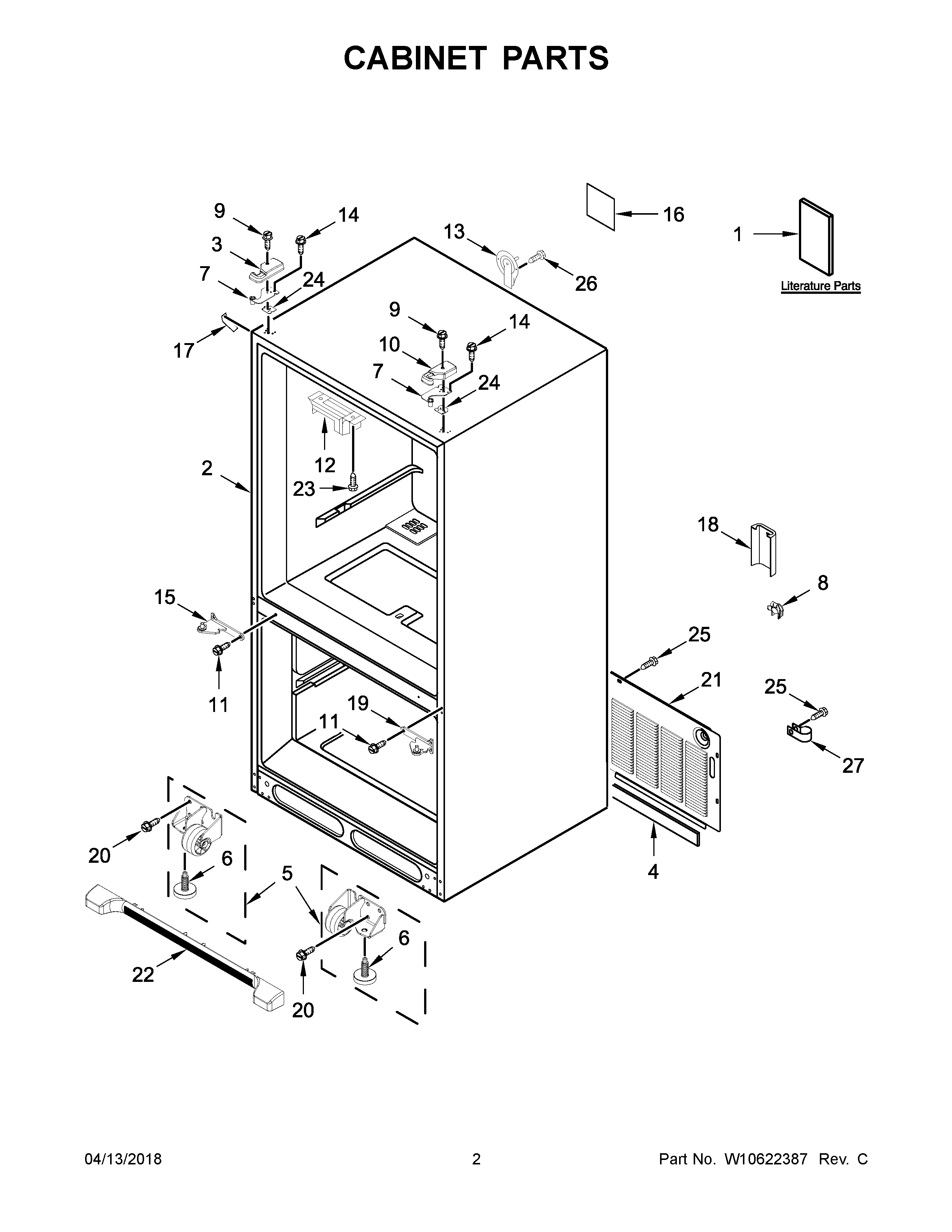

WRF535SMBB00 02 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
1B	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3B	WPW10337648 Whirlpool Refrigerator Cover
3A	W10337647 Whirlpool Refrigerator Cover
3	WPW10337634 Whirlpool Refrigerator Cover
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
7	W11592375 Whirlpool Door Hinge
8	W10485986 Whirlpool Tube Clamp
9	WP8281196 Whirlpool Screw
10B	WPW10191117 Whirlpool Refrigerator Cover
10	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
10A	WP67005956 Whirlpool Refrigerator Cover
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15A	W10918166 Whirlpool Refrigerator Door Hinge
15	W10918115 Whirlpool Refrigerator Door Hinge
15B	W10917991 Whirlpool Refrigerator Door Hinge
16	WPL W11042480
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
17B	WP12587703AP Whirlpool Refrigerator Filler
18	W10208592 Whirlpool Refrigerator Valve Cover
19B	HINGE-DOOR
19	W10918117 Whirlpool Refrigerator Door Hinge
19A	W10918168 Whirlpool Refrigerator Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	W10211854 Whirlpool Refrigerator Back Cover
22B	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22A	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	WPW10534154 Whirlpool Refrigerator Front Grille
23	WP489474 Whirlpool Refrigerator Screw
24	12999501 Whirlpool Refrigerator Hinge Shim
24A	12999502 Whirlpool Refrigerator Hinge Shim
25	67006425 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	W11456069 Whirlpool Refrigerator Clamp
