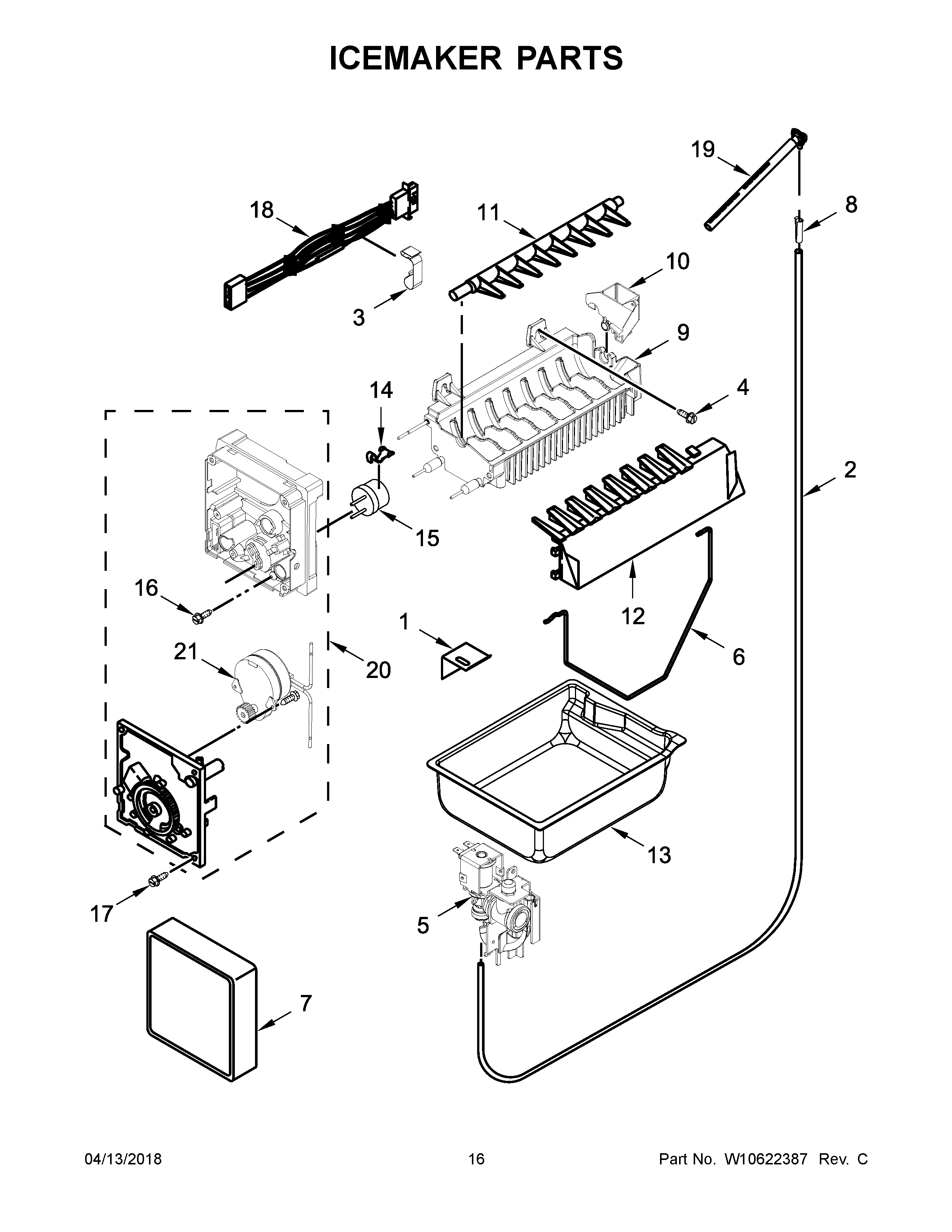

WRF535SMBM00 09 – ICEMAKER PARTSadmin2025-04-26T11:21:59+00:00WRF535SMBM00 09 – ICEMAKER PARTS ProductsPositionProduct1WP2256087 Whirlpool Refrigerator Bracket2W11120581 Whirlpool Refrigerator Water Tube3Clamp4W10001240 Whirlpool Refrigerator Screw5VALVE-REFR INLET6W11559683 Whirlpool Ice Level Arm7W10377174 Whirlpool Refrigerator Front Cover8WPA3223101 Whirlpool Refrigerator Insert PL9WPW10300025 Whirlpool Refrigerator Ice Mold10W10410073 Whirlpool Fill Cup Assembly11W10318914 Whirlpool Refrigerator Ejector Arm12WPW10122563 Whirlpool Refrigerator Stripper Arm13WPW10171529 Whirlpool Refrigerator Ice Pan14WP628379 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP489464 Whirlpool Refrigerator Screw18WPW10458985 Whirlpool Wire Harness19W11181718 Whirlpool Refrigerator Water Tube20WPW10281342 Whirlpool Refrigerator Motor Module21CABINET (NOT A SERVICEABLE PART)100W10884390 Whirlpool Refrigerator Ice Maker Assembly
