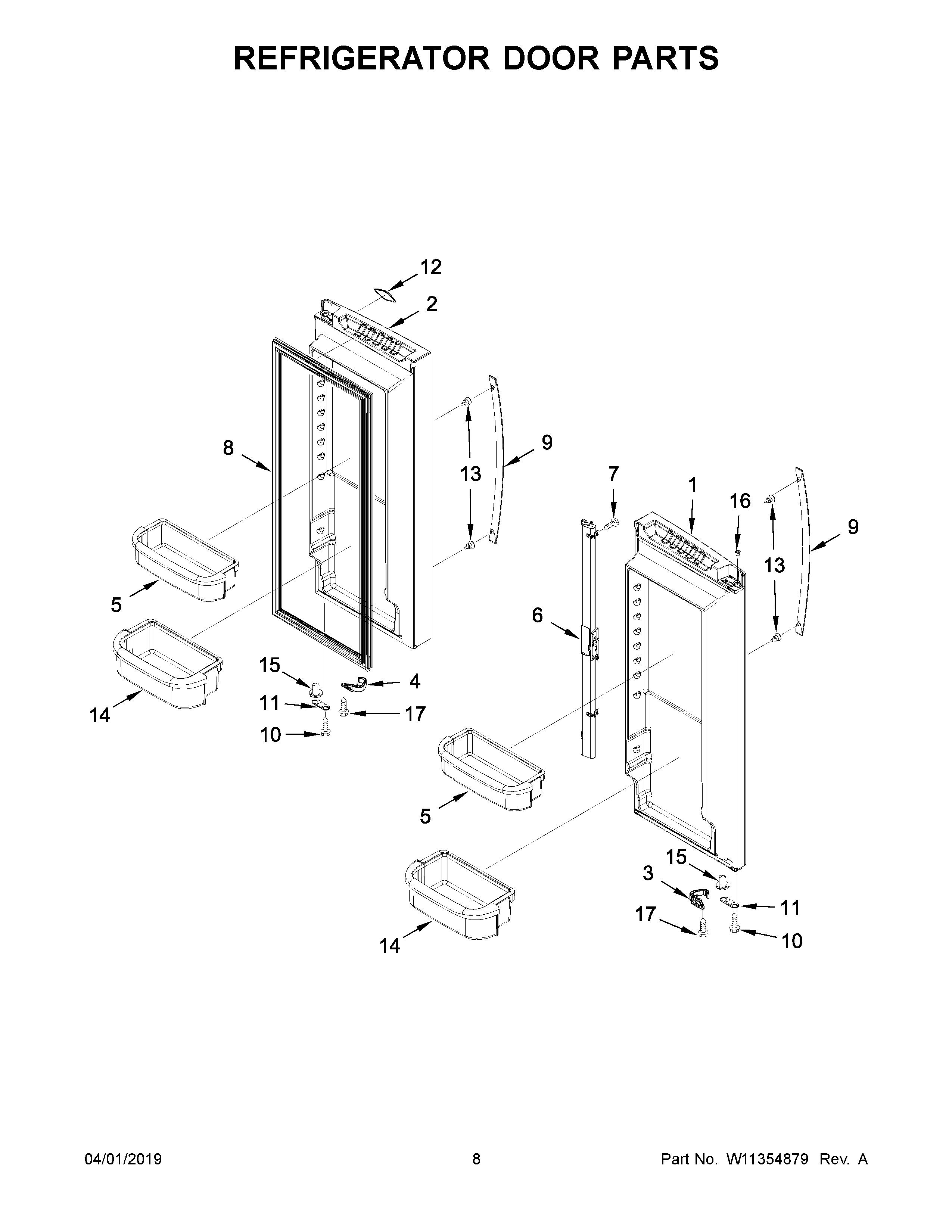

WRF535SMHB01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107888WQ Whirlpool Refrigerator DOR FIP WH
1A	13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
2	13107887WQ Whirlpool Refrigerator FIP Door White
2A	13107887BQ Whirlpool Refrigerator Black Foam In Place Door
3A	W10918170 Whirlpool Refrigerator Closer
3	W10918118 Whirlpool Refrigerator Door Closer
4A	W10918171 Whirlpool Refrigerator Closer
4	W10918120 Whirlpool Refrigerator Closer
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6A	WP12722803B Whirlpool Door Guide
6	RAIL-MULLN WHITE
7	W11311945 Whirlpool Refrigerator Screw
8A	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
9A	W11123097 Whirlpool Refrigerator Handle
9	W11127179 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	12968202W Whirlpool Refrigerator Door Stop
11A	W11708403 Whirlpool Door Stop
12	W11223753 Whirlpool Refrigerator Nameplate
13	WPW10661886 Whirlpool Refrigerator Door Handle Screw
14	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
15	WP67003638 Whirlpool Closing Cam
15A	WP67003639 Whirlpool Refrigerator Closer
16	12996601 Whirlpool Refrigerator Bushing Clip
17	WP489474 Whirlpool Refrigerator Screw
