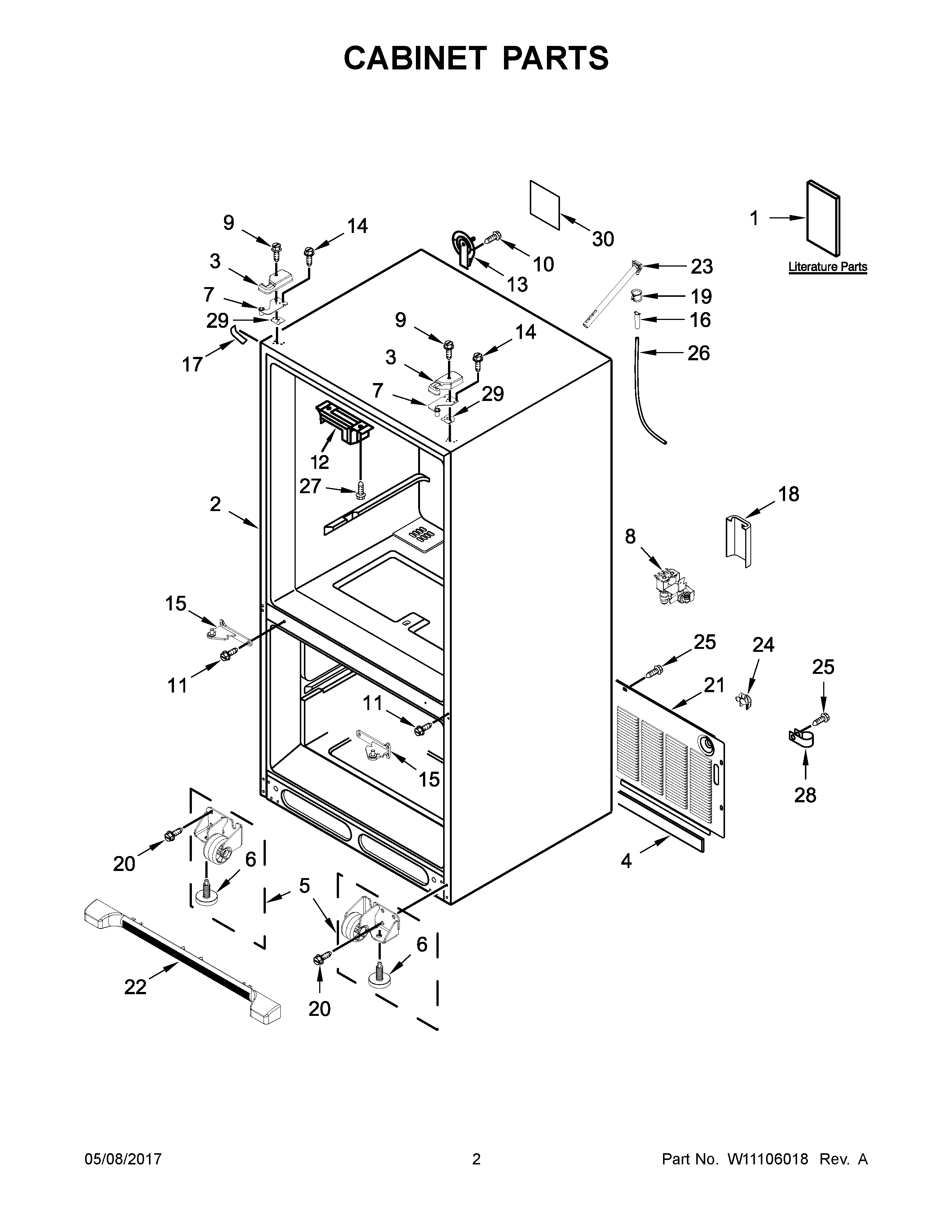

WRF535SMHW00 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1USE AND CARE GUIDE
1AENERGY GUIDE
2CABINET (NOT A SERVICEABLE PART)
3C67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3DWP67005956 Whirlpool Refrigerator Cover
3WPW10337634 Whirlpool Refrigerator Cover
3BWPW10337648 Whirlpool Refrigerator Cover
3EWPW10191117 Whirlpool Refrigerator Cover
3AW10337647 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
7AW11592374 Whirlpool Refrigerator Top Door Hinge
8VALVE-REFR INLET
9WP8281196 Whirlpool Screw
10WP98165 Whirlpool Screw
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15DW10918168 Whirlpool Refrigerator Door Hinge
15W10918115 Whirlpool Refrigerator Door Hinge
15AW10918166 Whirlpool Refrigerator Door Hinge
15CW10918117 Whirlpool Refrigerator Door Hinge
15BW10917991 Whirlpool Refrigerator Door Hinge
15EHINGE-DOOR
16WPA3223101 Whirlpool Refrigerator Insert PL
1712587703W Whirlpool Refrigerator Cover
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
17BWP12587703AP Whirlpool Refrigerator Filler
18W10208592 Whirlpool Refrigerator Valve Cover
19WPM0114003 Whirlpool Microwave Speed Clip Clamp
2067006564 Whirlpool Refrigerator Screw
21W10211854 Whirlpool Refrigerator Back Cover
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22BWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22WPW10534154 Whirlpool Refrigerator Front Grille
23W11176463 Whirlpool Refrigerator Water Tube
24W10485986 Whirlpool Tube Clamp
2567006425 Whirlpool Refrigerator Screw
26W11120581 Whirlpool Refrigerator Water Tube
27W10854958 Whirlpool Refrigerator Screw
28W11456069 Whirlpool Refrigerator Clamp
2912999501 Whirlpool Refrigerator Hinge Shim
29A12999502 Whirlpool Refrigerator Hinge Shim
30WPL W11042480
