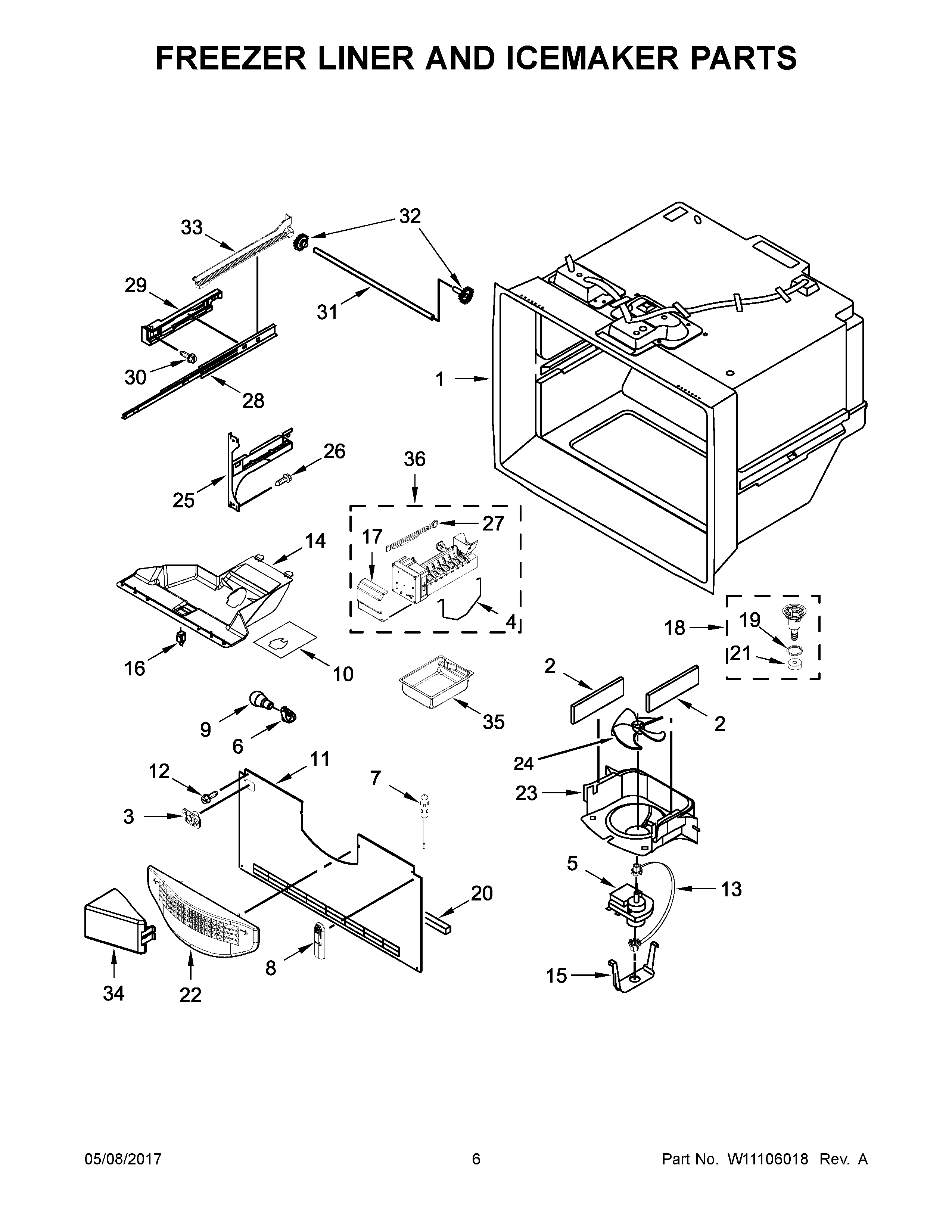

WRF535SMHW00 04 – FREEZER LINER AND ICEMAKER PARTS

WRF535SMHW00 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

WRF535SMHW00 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11448709 Whirlpool Refrigerator Bracket
4W11285509 Whirlpool Refrigerator Shut-Off Arm
5WPW10128551 Whirlpool Evaporator Fan Motor
6W11447232 Whirlpool Refrigerator Socket
712002355 Whirlpool Refrigerator Thermistor Kit
8WP67003924 Whirlpool Refrigerator Cover
9W11338583 Whirlpool Light Bulb
10W11469652 Whirlpool Refrigerator Shield
11W11727809 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13W10121318 Whirlpool Refrigerator Grommet
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W10445790 Whirlpool Refrigerator Front Cover
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20W11159728 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25AWPW10330993 Whirlpool Refrigerator Bracket
25WPW10330991 Whirlpool Refrigerator Bracket
26WP98165 Whirlpool Screw
27W10886932 Whirlpool Refrigerator Wire Harness
28W11658402 Whirlpool Drawer Slide Rail
29WPW10284684 Whirlpool Refrigerator Bracket
29AWPW10284685 Whirlpool Refrigerator Bracket
30WP489474 Whirlpool Refrigerator Screw
31W11028221 Whirlpool Refrigerator Shaft
3212002497 Whirlpool Refrigerator Drawer Gear Kit
33W11489993 Whirlpool Refrigerator Rail
33AW11489994 Whirlpool Refrigerator Rail
34W10157765 Whirlpool Refrigerator Deflector
35WPW10171529 Whirlpool Refrigerator Ice Pan
36W10884390 Whirlpool Refrigerator Ice Maker Assembly
