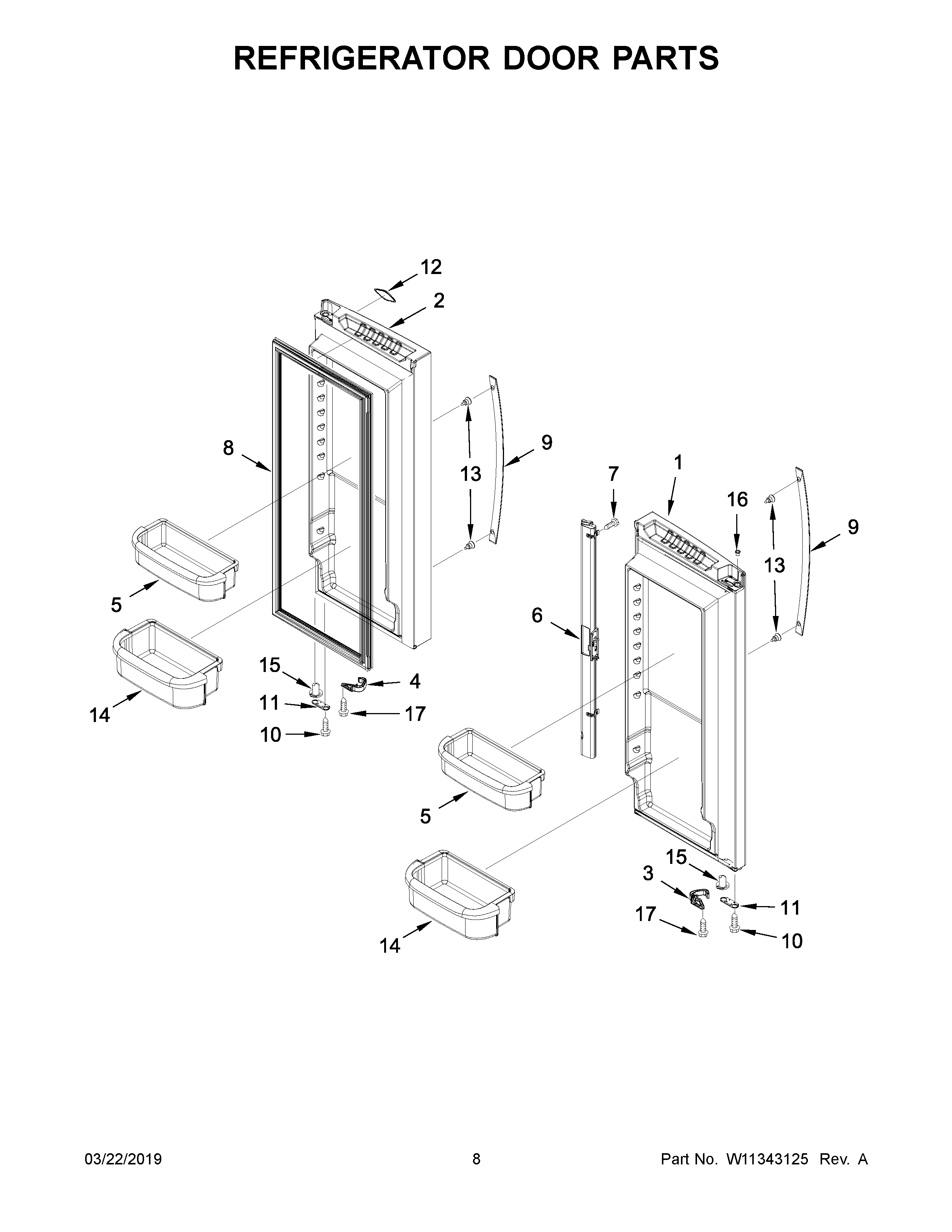

WRF535SMHZ02 05 – REFRIGERATOR DOOR PARTS

WRF535SMHZ02 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF535SMHZ02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11307258 Whirlpool Refrigerator Door Assembly
2W11307263 Whirlpool Refrigerator FIP Door
3W10918008 Whirlpool Refrigerator Closer
4W10918010 Whirlpool Refrigerator Closer
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9HANDLE-REFRIGERATOR SS
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
13WPW10661886 Whirlpool Refrigerator Door Handle Screw
14WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
15WP12028505AP Whirlpool Closing Cam
1612996601 Whirlpool Refrigerator Bushing Clip
17WP489474 Whirlpool Refrigerator Screw
