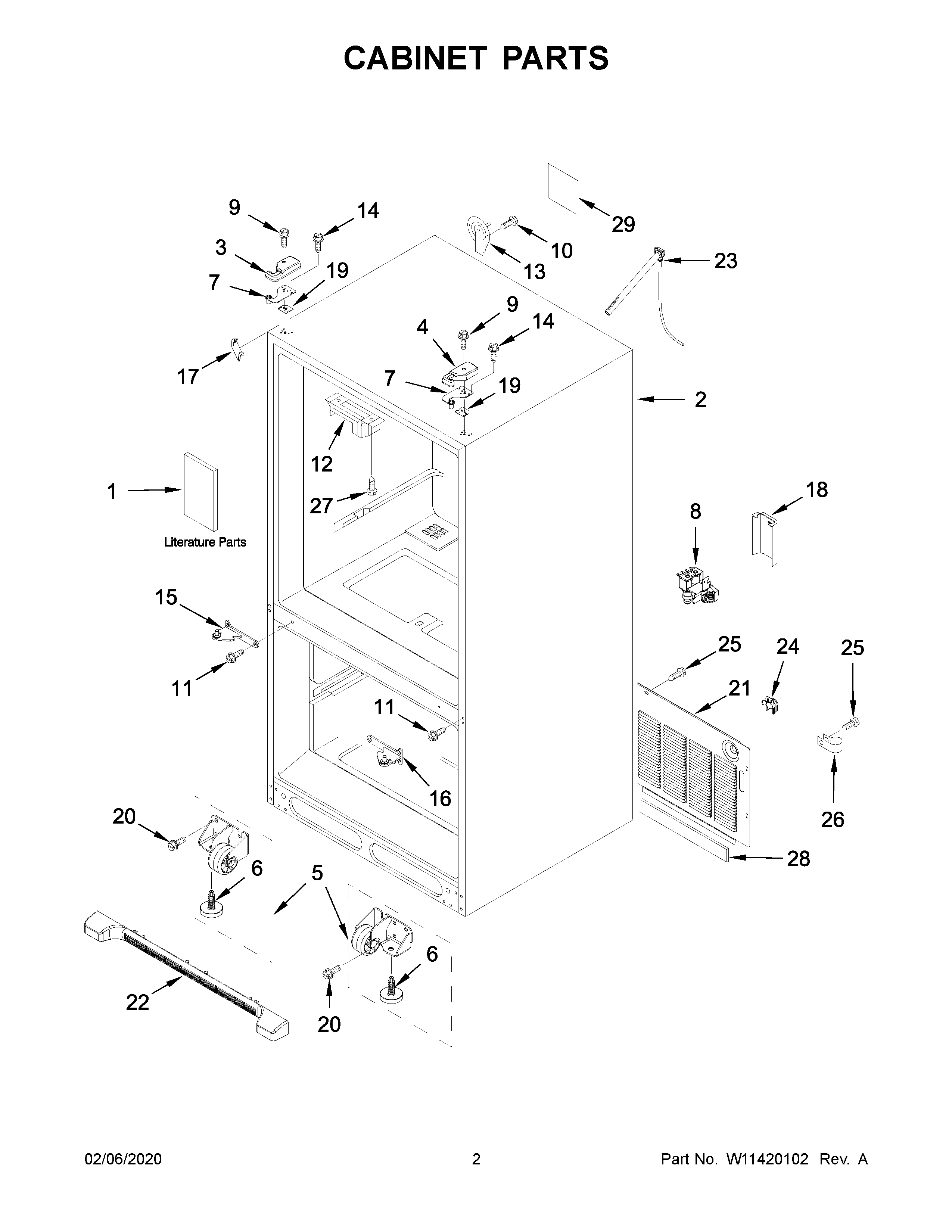

WRF535SMHZ04 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4WPW10191117 Whirlpool Refrigerator Cover
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
8VALVE-REFR INLET
9WP8281196 Whirlpool Screw
10WP98165 Whirlpool Screw
11W11573362 Whirlpool Screw Assembly
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
14WP489349 Whirlpool Refrigerator Screw
15W10917991 Whirlpool Refrigerator Door Hinge
16HINGE-DOOR
17WP12587703AP Whirlpool Refrigerator Filler
18W10208592 Whirlpool Refrigerator Valve Cover
19A12999502 Whirlpool Refrigerator Hinge Shim
1912999501 Whirlpool Refrigerator Hinge Shim
2067006564 Whirlpool Refrigerator Screw
21W10211854 Whirlpool Refrigerator Back Cover
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W11181718 Whirlpool Refrigerator Water Tube
24W10485986 Whirlpool Tube Clamp
2567006425 Whirlpool Refrigerator Screw
26W11456069 Whirlpool Refrigerator Clamp
27W11693756 Whirlpool Screw Assembly
28B5759655 Whirlpool Refrigerator Gasket
29WPL W11042480
