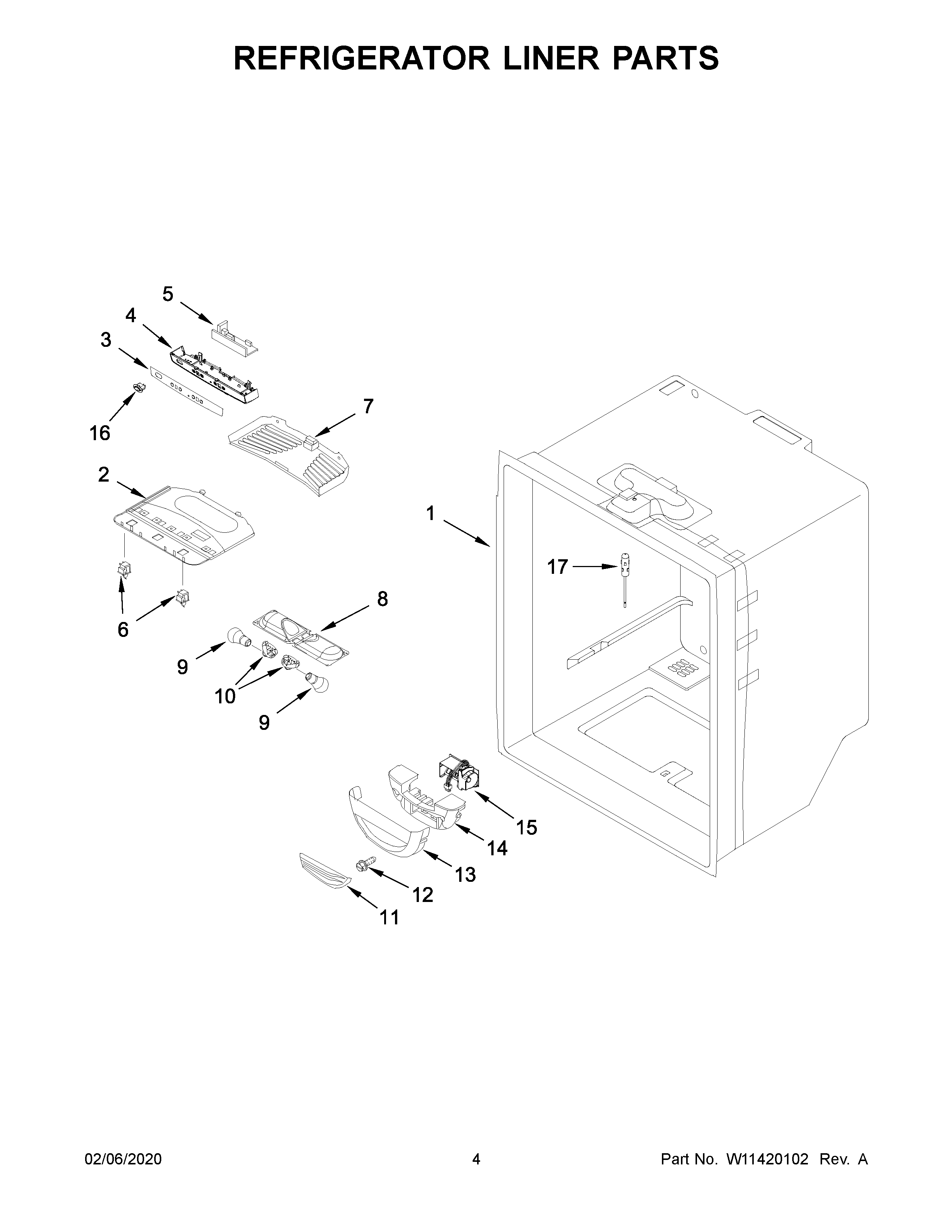

WRF535SMHZ04 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
2W10464764 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11123941 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11107911 Whirlpool Refrigerator Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
16W11478401 Whirlpool Refrigerator Housing
1712002355 Whirlpool Refrigerator Thermistor Kit
