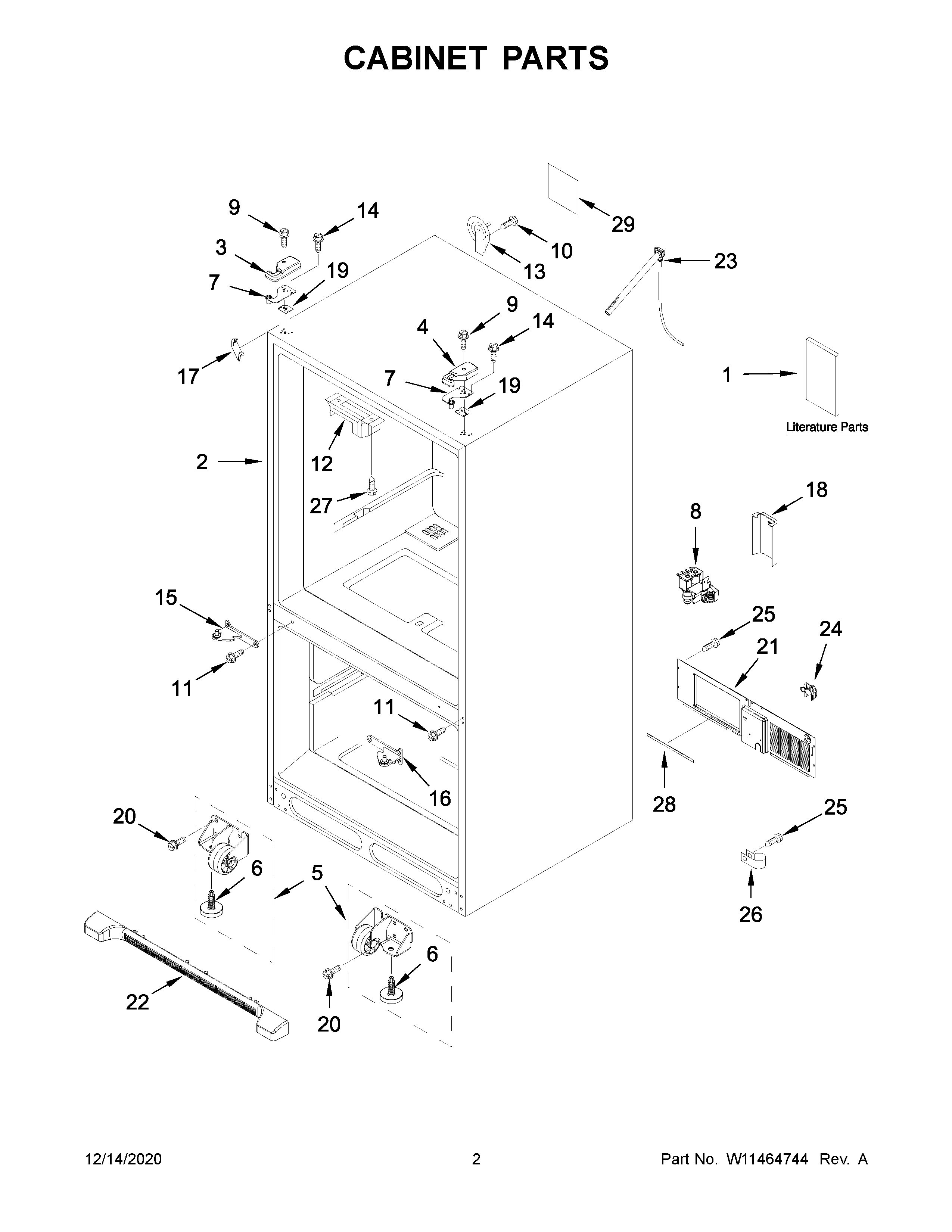

WRF535SMHZ05 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	TECH SHEET
1	USE AND CARE GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	WPW10337648 Whirlpool Refrigerator Cover
4	WPW10191117 Whirlpool Refrigerator Cover
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
8	VALVE-REFR INLET
9	WP8281196 Whirlpool Screw
10	WP489128 Whirlpool Refrigerator Screw
11	W11573362 Whirlpool Screw Assembly
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10208592 Whirlpool Refrigerator Valve Cover
19A	12999502 Whirlpool Refrigerator Hinge Shim
19	12999501 Whirlpool Refrigerator Hinge Shim
20	67006564 Whirlpool Refrigerator Screw
21	W10211854 Whirlpool Refrigerator Back Cover
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W11181718 Whirlpool Refrigerator Water Tube
24	W10485986 Whirlpool Tube Clamp
25	SCREW
26	W11456069 Whirlpool Refrigerator Clamp
27	W11693756 Whirlpool Screw Assembly
28	GASKET
29	WPL W11042480
