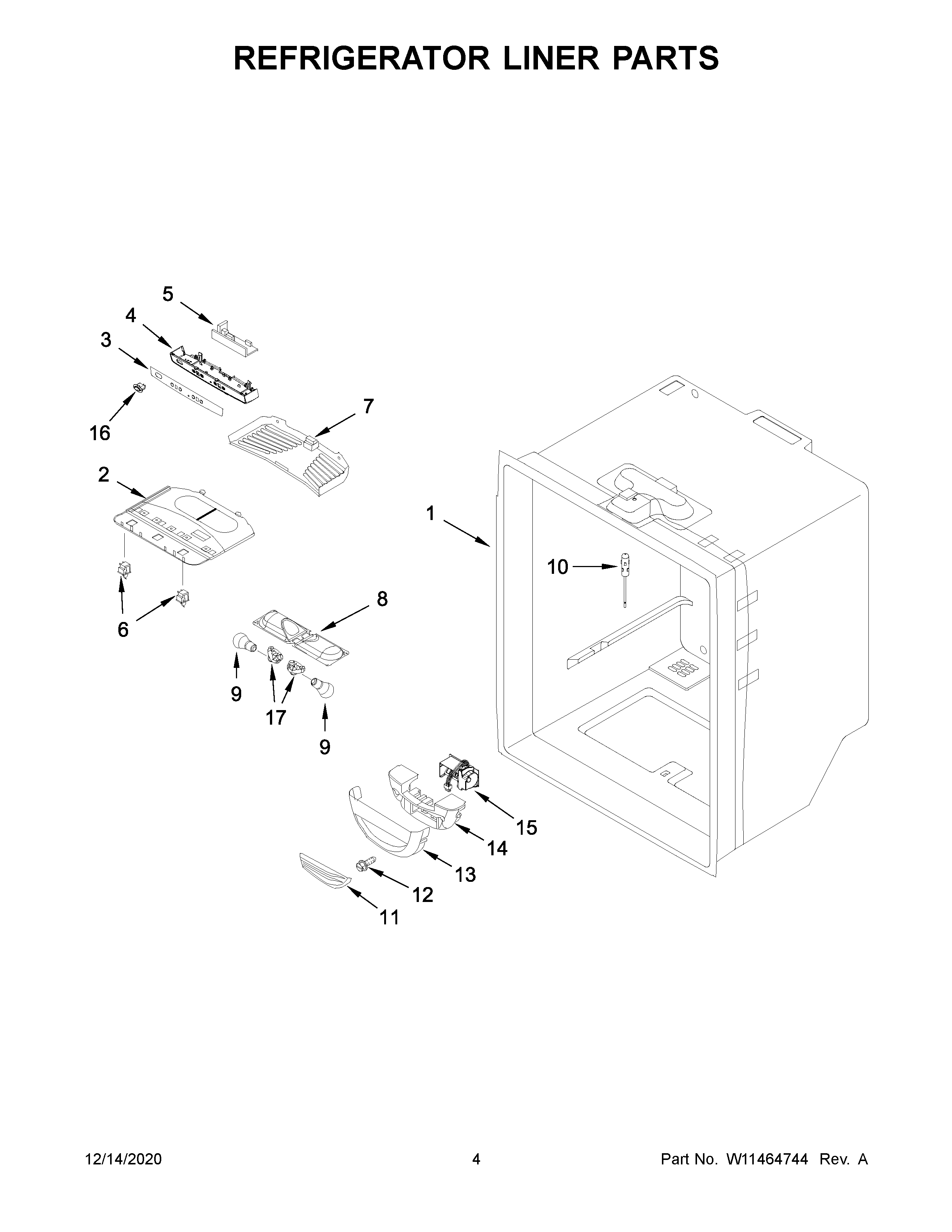

WRF535SMHZ05 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11469743 Whirlpool Wire Harness Assembly
2	W10464764 Whirlpool Refrigerator Housing
3	W11469742 Whirlpool Refrigerator Overlay
4	W11469741 Whirlpool Refrigerator Housing
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	W11123941 Whirlpool Refrigerator Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	W11107911 Whirlpool Refrigerator Light Bulb
10	12002355 Whirlpool Refrigerator Thermistor Kit
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10594330 Whirlpool Refrigerator Control
16	W11469740 Whirlpool Refrigerator Switch
17	W11447232 Whirlpool Refrigerator Socket
