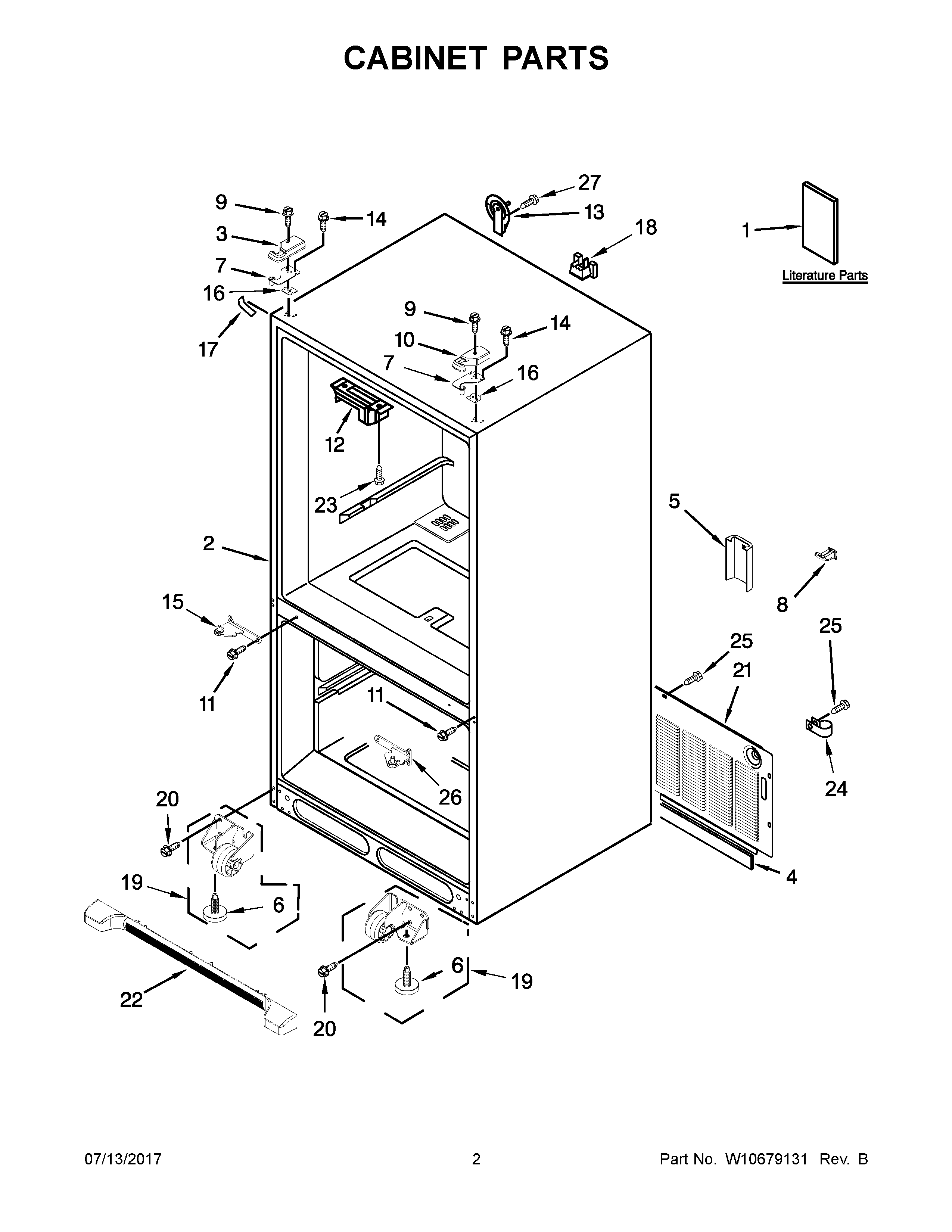

WRF535SWBB00 02 – CABINET PARTS

WRF535SWBB00 02 – CABINET PARTS

Written by

in

WRF535SWBB00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3AW10337647 Whirlpool Refrigerator Cover
3WPW10337634 Whirlpool Refrigerator Cover
3BWPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
7AW11592374 Whirlpool Refrigerator Top Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10AWP67005956 Whirlpool Refrigerator Cover
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
10BWPW10191117 Whirlpool Refrigerator Cover
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15BW10917991 Whirlpool Refrigerator Door Hinge
15W10918115 Whirlpool Refrigerator Door Hinge
15AW10918166 Whirlpool Refrigerator Door Hinge
1612999501 Whirlpool Refrigerator Hinge Shim
16A12999502 Whirlpool Refrigerator Hinge Shim
17BWP12587703AP Whirlpool Refrigerator Filler
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W11686793 Whirlpool Block
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534154 Whirlpool Refrigerator Front Grille
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22BWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10854958 Whirlpool Refrigerator Screw
24W11456069 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
26BHINGE-DOOR
26W10918117 Whirlpool Refrigerator Door Hinge
26AW10918168 Whirlpool Refrigerator Door Hinge
27WP98165 Whirlpool Screw
