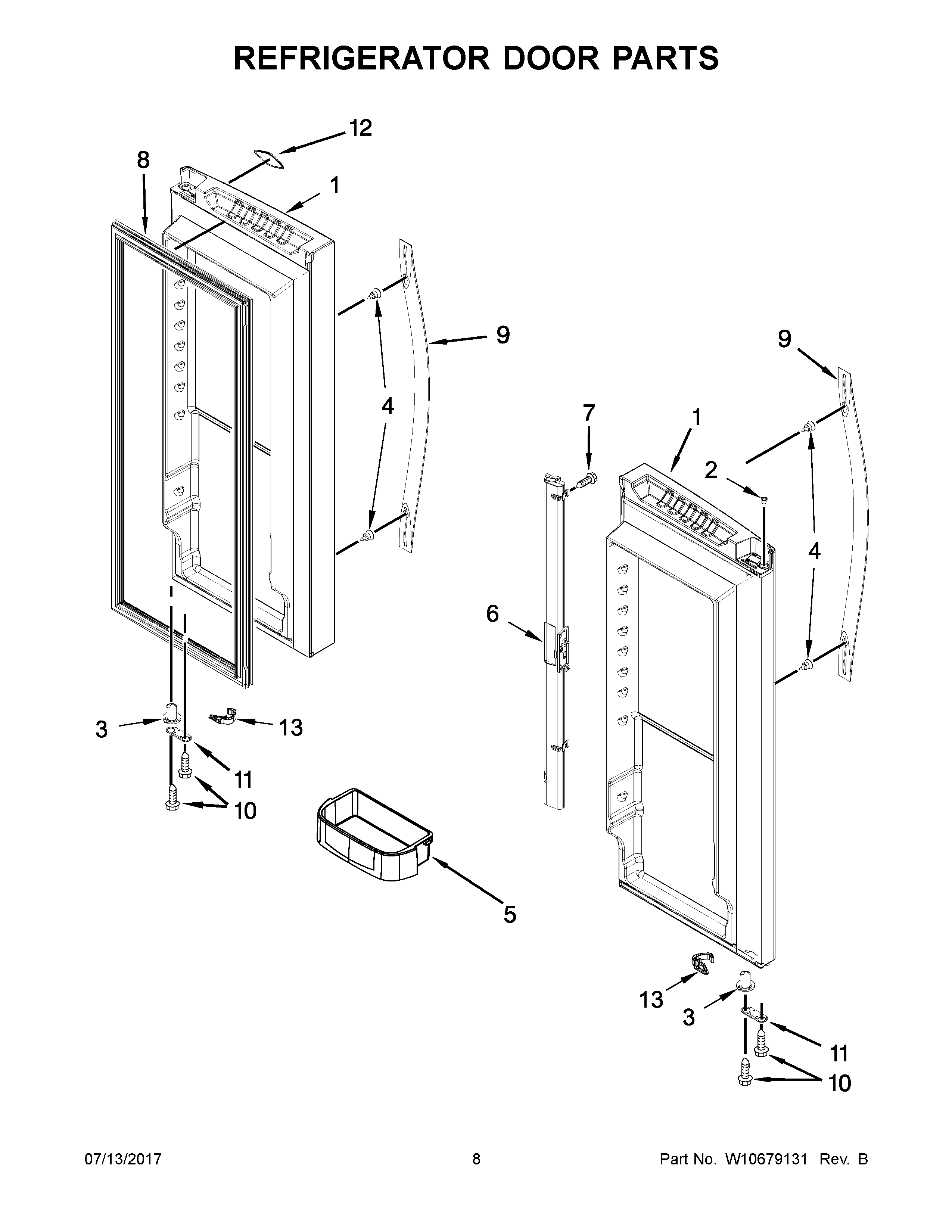

WRF535SWBM00 05 – REFRIGERATOR DOOR PARTS

WRF535SWBM00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF535SWBM00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1C13107855WQ Whirlpool Refrigerator White FIP Door
1A13107881BQ Whirlpool Refrigerator DOR Foam In Place Black
1B13107881SQ Whirlpool Refrigerator DOR-FIP SS
113107881WQ Whirlpool Refrigerator DOR-FIP White
1D13107855BQ Whirlpool Refrigerator Black Foam In Place Doorack
1E13107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
212996601 Whirlpool Refrigerator Bushing Clip
3AWP67003639 Whirlpool Refrigerator Closer
3WP67003638 Whirlpool Closing Cam
3BWP12028505AP Whirlpool Closing Cam
4WPW10661886 Whirlpool Refrigerator Door Handle Screw
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5AWPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6BWP12722803AP Whirlpool Refrigerator Mullion Rail
6AWP12722803B Whirlpool Door Guide
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8AGASKET-FIP
8W10830189 Whirlpool Refrigerator Door Gasket
8BGASKET-FIP
9W10830136 Whirlpool Refrigerator Handle
9BW11459378 Whirlpool Refrigerator Handle
9AW10830130 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11AW11708403 Whirlpool Door Stop
1112968202W Whirlpool Refrigerator Door Stop
11BW11703060 Whirlpool Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
13BW10918008 Whirlpool Refrigerator Closer
13AW10918170 Whirlpool Refrigerator Closer
13W10918118 Whirlpool Refrigerator Door Closer
13DW10918171 Whirlpool Refrigerator Closer
13CW10918120 Whirlpool Refrigerator Closer
13EW10918010 Whirlpool Refrigerator Closer
