WRF535SWHB02 05 – REFRIGERATOR DOOR PARTS

WRF535SWHB02 05 – REFRIGERATOR DOOR PARTS

Written by

in

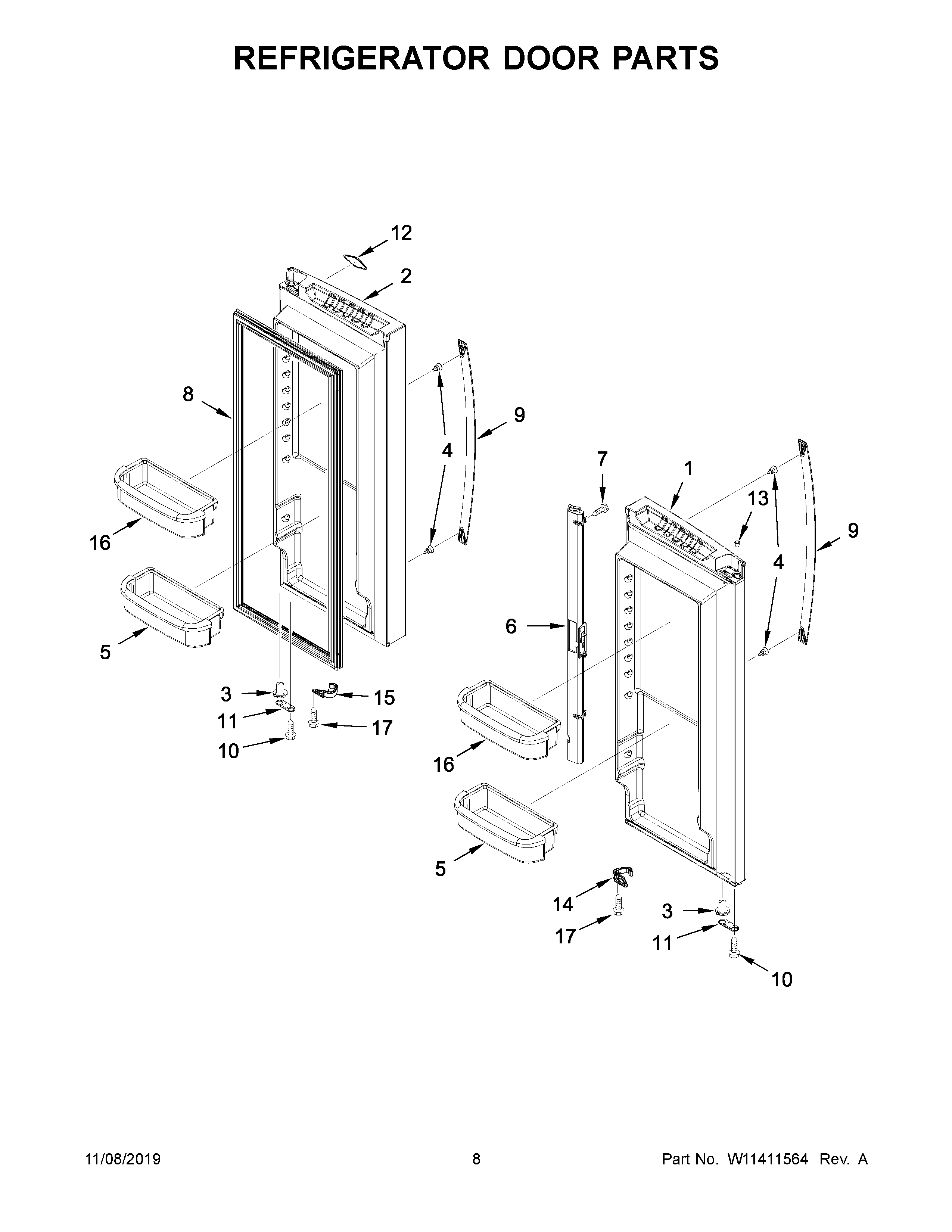

WRF535SWHB02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107888WQ Whirlpool Refrigerator DOR FIP WH
1A13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
213107887WQ Whirlpool Refrigerator FIP Door White
2A13107887BQ Whirlpool Refrigerator Black Foam In Place Door
3AWP67003639 Whirlpool Refrigerator Closer
3WP67003638 Whirlpool Closing Cam
4W11449276 Whirlpool Handle Support
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6AWP12722803B Whirlpool Door Guide
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8AGASKET-FIP
8W10830189 Whirlpool Refrigerator Door Gasket
9W11127179 Whirlpool Refrigerator Handle
9AW11123097 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11AW11708403 Whirlpool Door Stop
1112968202W Whirlpool Refrigerator Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
1312996601 Whirlpool Refrigerator Bushing Clip
14W10918118 Whirlpool Refrigerator Door Closer
14AW10918170 Whirlpool Refrigerator Closer
15AW10918171 Whirlpool Refrigerator Closer
15W10918120 Whirlpool Refrigerator Closer
16WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17WP489474 Whirlpool Refrigerator Screw
