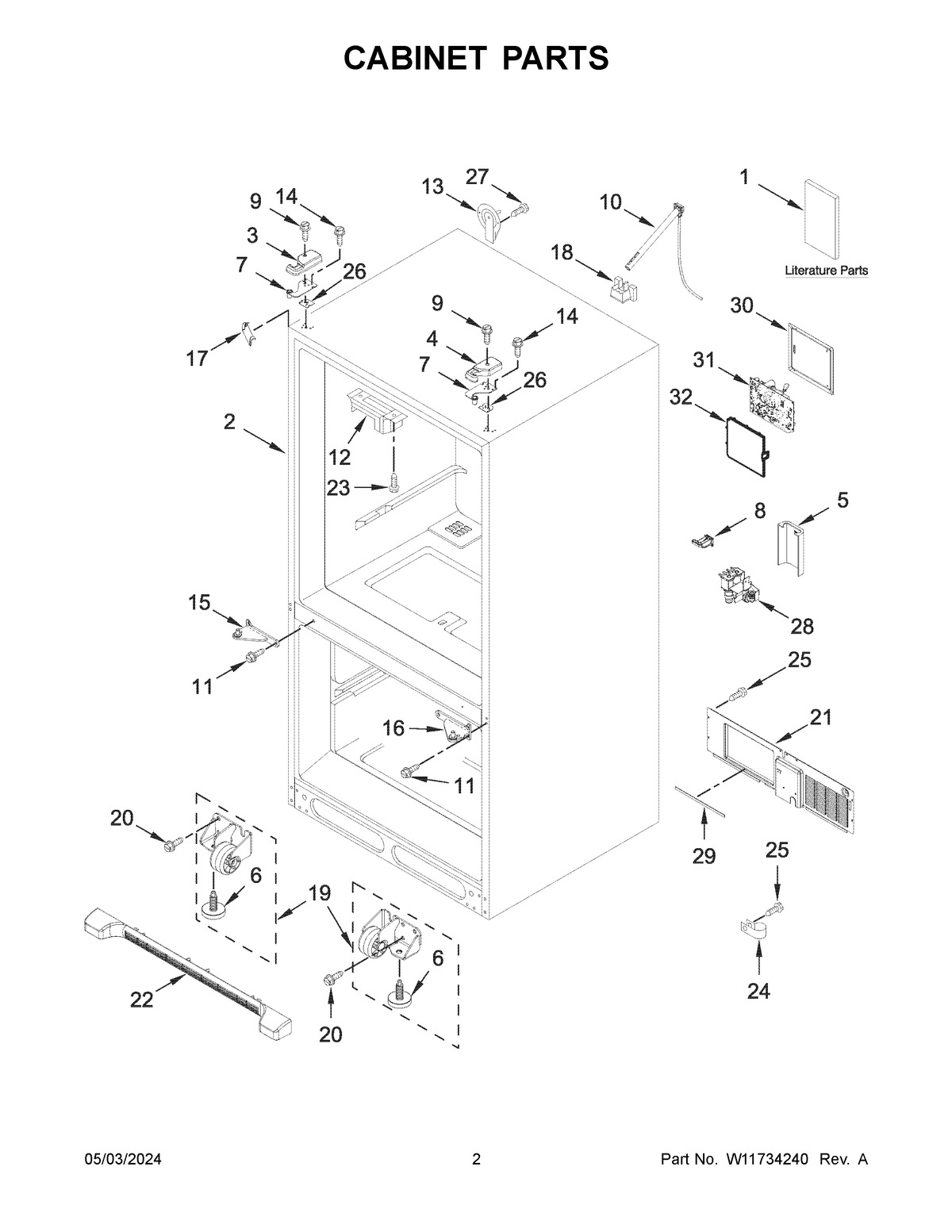

WRF535SWHB10 02 – CABINET PARTS

Products

Position	Product
1	OWNERS MANUAL
1B	TECH SHEET
1A	ENERGY GUIDE
2	CABINET (NOT A SERVICABLE PART)
3	W10337647 Whirlpool Refrigerator Cover
4	WP67005956 Whirlpool Refrigerator Cover
5	W10208593 Whirlpool Refrigerator Valve Cover
6	WPW10141622 Whirlpool Leveler
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
7	W11592375 Whirlpool Door Hinge
8	W10528513 Whirlpool Tube Clamp
9	WP8281196 Whirlpool Screw
10	W11181718 Whirlpool Refrigerator Water Tube
11	W11573362 Whirlpool Screw Assembly
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W11642008 Whirlpool Door Hinge
16	W11642010 Whirlpool Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W11686793 Whirlpool Block
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	WPW10211855 Whirlpool Refrigerator Back Cover
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W11693756 Whirlpool Screw Assembly
24	W11456069 Whirlpool Refrigerator Clamp
25	W11686675 Whirlpool Screw
26	12999501 Whirlpool Refrigerator Hinge Shim
26A	12999502 Whirlpool Refrigerator Hinge Shim
27	WP98165 Whirlpool Screw
28	W11524655 Whirlpool Refrigerator Valve
29	W11534848 Whirlpool Gasket
30	12961602 Whirlpool Refrigerator Wire Cover
31	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32	W10296541 Whirlpool Refrigerator Wire Cover
