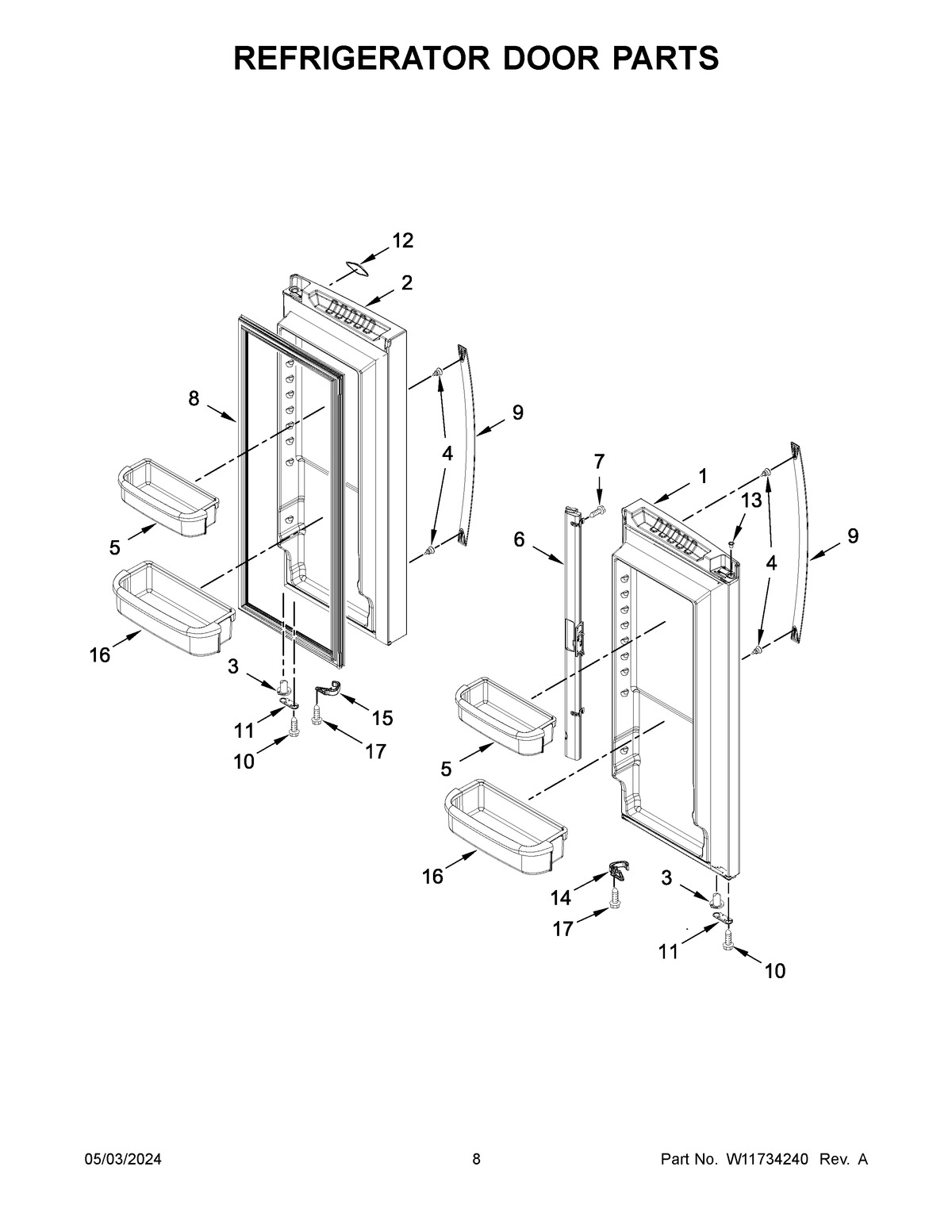

WRF535SWHB10 05 – REFRIGERATOR DOOR PARTS

WRF535SWHB10 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF535SWHB10 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (BLACK)
213107887BQ Whirlpool Refrigerator Black Foam In Place Door
3WP67003639 Whirlpool Refrigerator Closer
4W11449276 Whirlpool Handle Support
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11123097 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
1312996601 Whirlpool Refrigerator Bushing Clip
14W10918170 Whirlpool Refrigerator Closer
15W10918171 Whirlpool Refrigerator Closer
16WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17WP67006908 Whirlpool Refrigerator Screw
