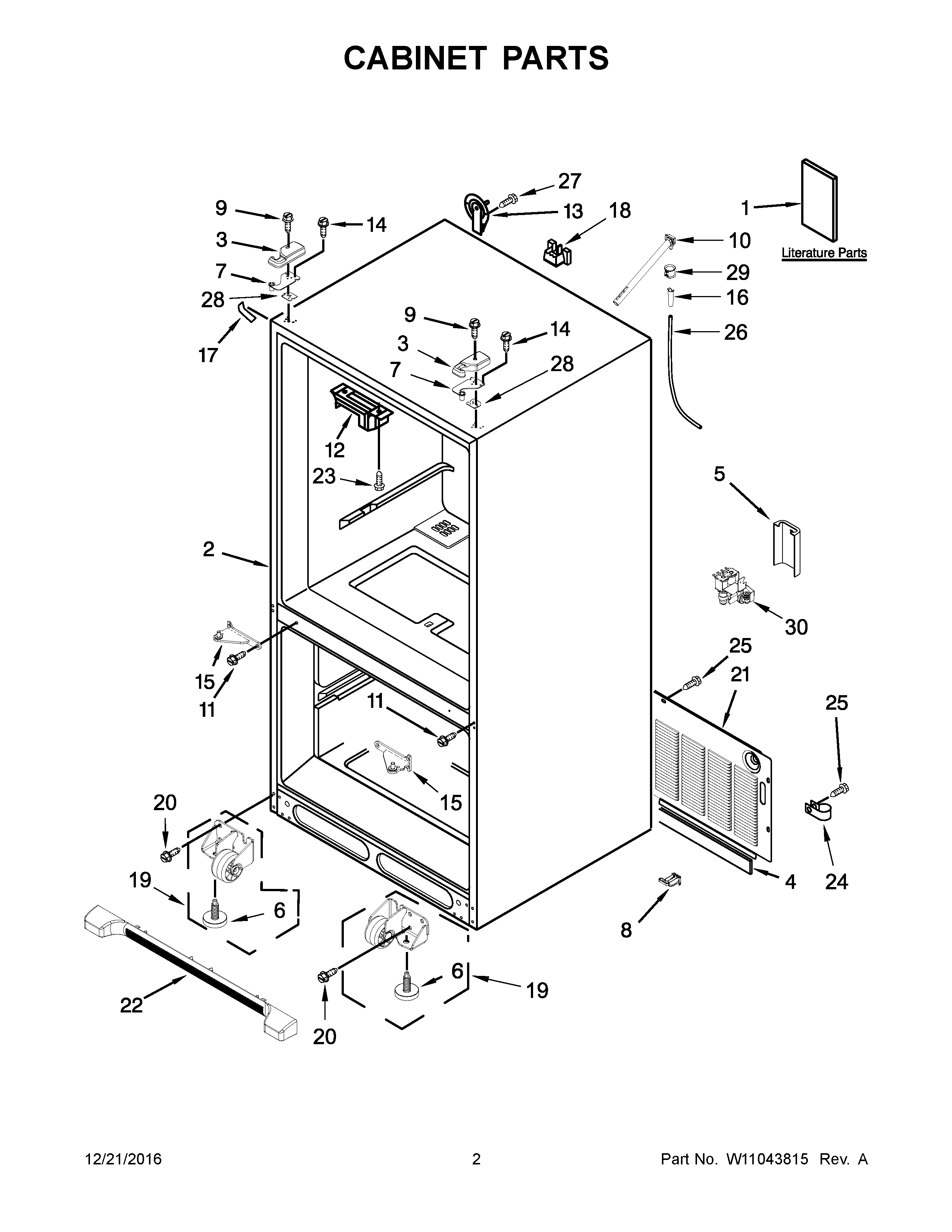

WRF535SWHV00 02 – CABINET PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
1B	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3B	WPW10337648 Whirlpool Refrigerator Cover
3C	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
3D	WP67005956 Whirlpool Refrigerator Cover
3A	W10337647 Whirlpool Refrigerator Cover
3	WPW10337634 Whirlpool Refrigerator Cover
3E	WPW10191117 Whirlpool Refrigerator Cover
4	B5759655 Whirlpool Refrigerator Gasket
5	W10208593 Whirlpool Refrigerator Valve Cover
6	WPW10141622 Whirlpool Leveler
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
7	W11592375 Whirlpool Door Hinge
8	W10528513 Whirlpool Tube Clamp
9	WP8281196 Whirlpool Screw
10	W11176463 Whirlpool Refrigerator Water Tube
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15E	HINGE-DOOR
15B	W10917991 Whirlpool Refrigerator Door Hinge
15	W10918115 Whirlpool Refrigerator Door Hinge
15C	W10918117 Whirlpool Refrigerator Door Hinge
15D	W10918168 Whirlpool Refrigerator Door Hinge
15A	W10918166 Whirlpool Refrigerator Door Hinge
16	WPA3223101 Whirlpool Refrigerator Insert PL
17B	WP12587703AP Whirlpool Refrigerator Filler
17	12587703W Whirlpool Refrigerator Cover
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W11686793 Whirlpool Block
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	WPW10211855 Whirlpool Refrigerator Back Cover
22B	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22	WPW10534154 Whirlpool Refrigerator Front Grille
22A	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W10854958 Whirlpool Refrigerator Screw
24	W11456069 Whirlpool Refrigerator Clamp
25	67006425 Whirlpool Refrigerator Screw
26	W11120581 Whirlpool Refrigerator Water Tube
27	WP98165 Whirlpool Screw
28	12999501 Whirlpool Refrigerator Hinge Shim
28A	12999502 Whirlpool Refrigerator Hinge Shim
29	WPM0114003 Whirlpool Microwave Speed Clip Clamp
30	VALVE-WATER INLET REFR
