WRF535SWHV01 05 – REFRIGERATOR DOOR PARTS

WRF535SWHV01 05 – REFRIGERATOR DOOR PARTS

Written by

in

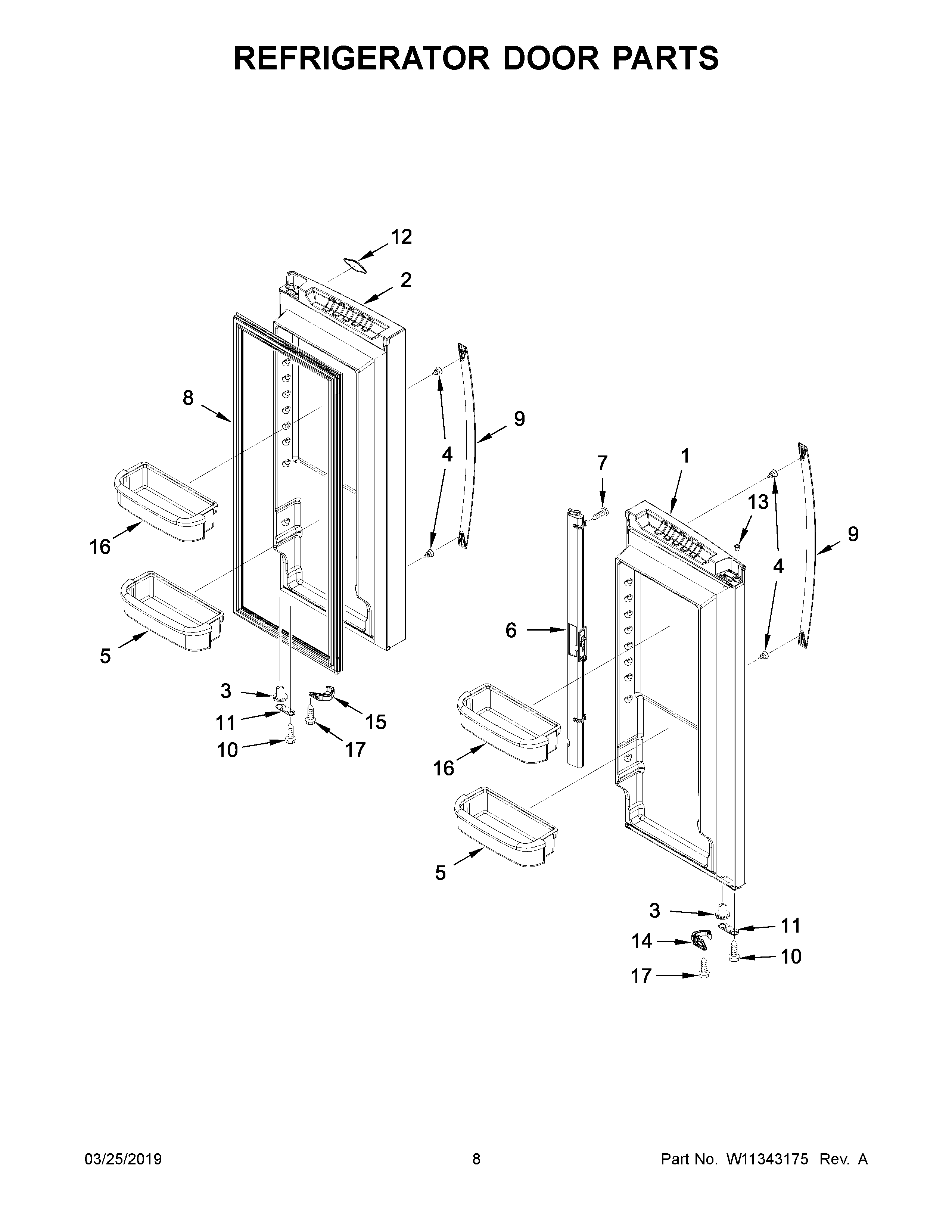

WRF535SWHV01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10919641 Whirlpool Refrigerator Door Assembly
2W10919633 Whirlpool Refrigerator Door Assembly
3WP67003639 Whirlpool Refrigerator Closer
4WPW10661886 Whirlpool Refrigerator Door Handle Screw
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11125624 Whirlpool Door Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
1312996601 Whirlpool Refrigerator Bushing Clip
14W10918170 Whirlpool Refrigerator Closer
15W10918171 Whirlpool Refrigerator Closer
16WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17WP489474 Whirlpool Refrigerator Screw
