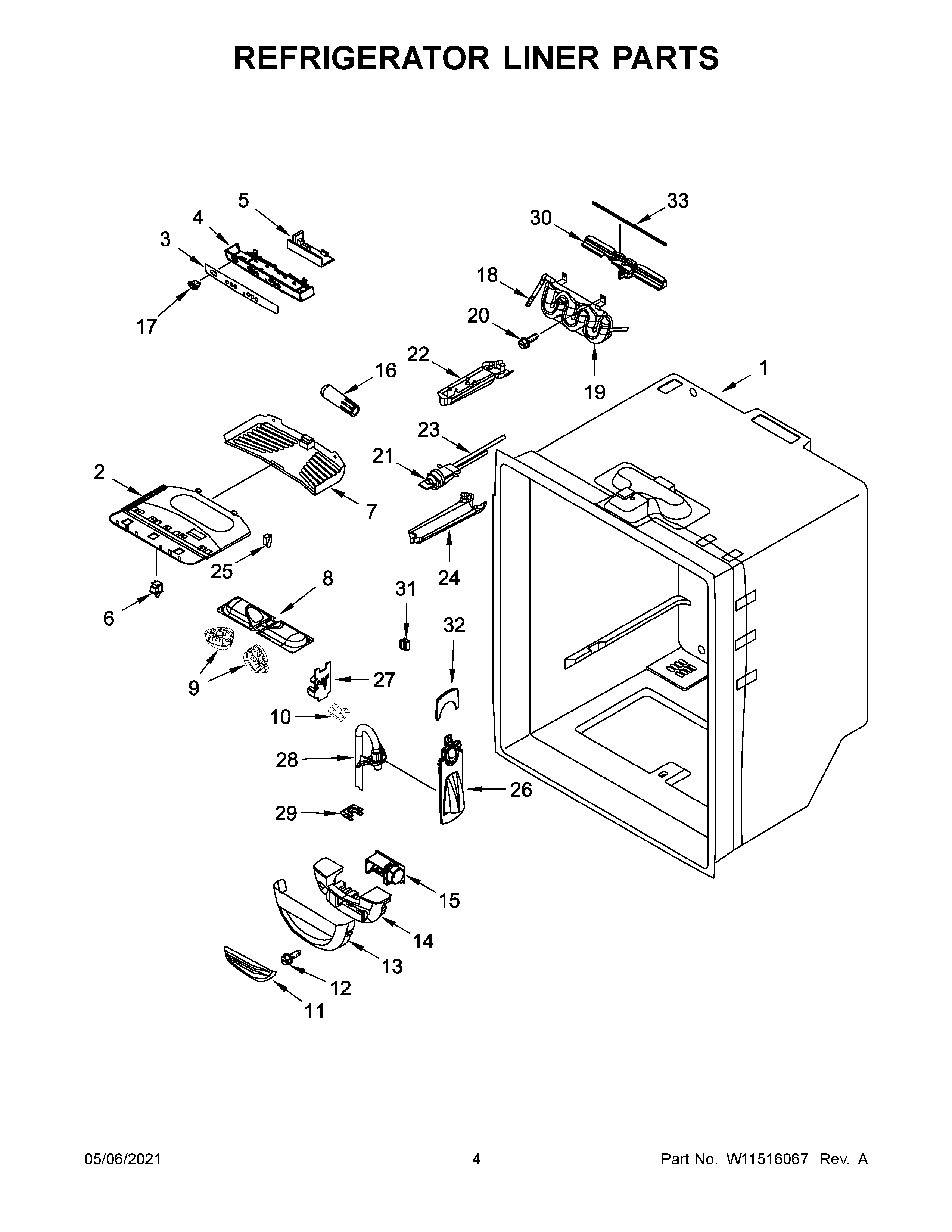

WRF535SWHV04 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11469743 Whirlpool Wire Harness Assembly
2	W10464764 Whirlpool Refrigerator Housing
3	W11469742 Whirlpool Refrigerator Overlay
4	W11469741 Whirlpool Refrigerator Housing
5	W11524469-includeCORE Whirlpool W11524469 Refrigerator Electronic Control Board
6	W11123941 Whirlpool Refrigerator Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	W11527411 Whirlpool Refrigerator Foam Seal
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10594330 Whirlpool Refrigerator Control
16	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
17	W11469740 Whirlpool Refrigerator Switch
18	WP2300868 Whirlpool Refrigerator Fitting
19	W11229977 Whirlpool Refrigerator Reservoir
20	67006425 Whirlpool Refrigerator Screw
21	W11395888 Whirlpool Refrigerator Bypass Filter Cap
22	PLATE-FIL
23	W11346623 Whirlpool Refrigerator Water Filter Head
24	WP12568001 Whirlpool Filter Cover
25	W11527839 Whirlpool Switch
26	W11519867 Whirlpool Refrigerator Cover
27	W11515355 Whirlpool Refrigerator Plate
28	W11677725 Whirlpool Refrigerator Guide
29	67002816 Whirlpool Refrigerator Waterline Clip
30	W11714300 Whirlpool Insulation
31	W10819546 Whirlpool Refrigerator Clip
33	GASKET, SEAL
