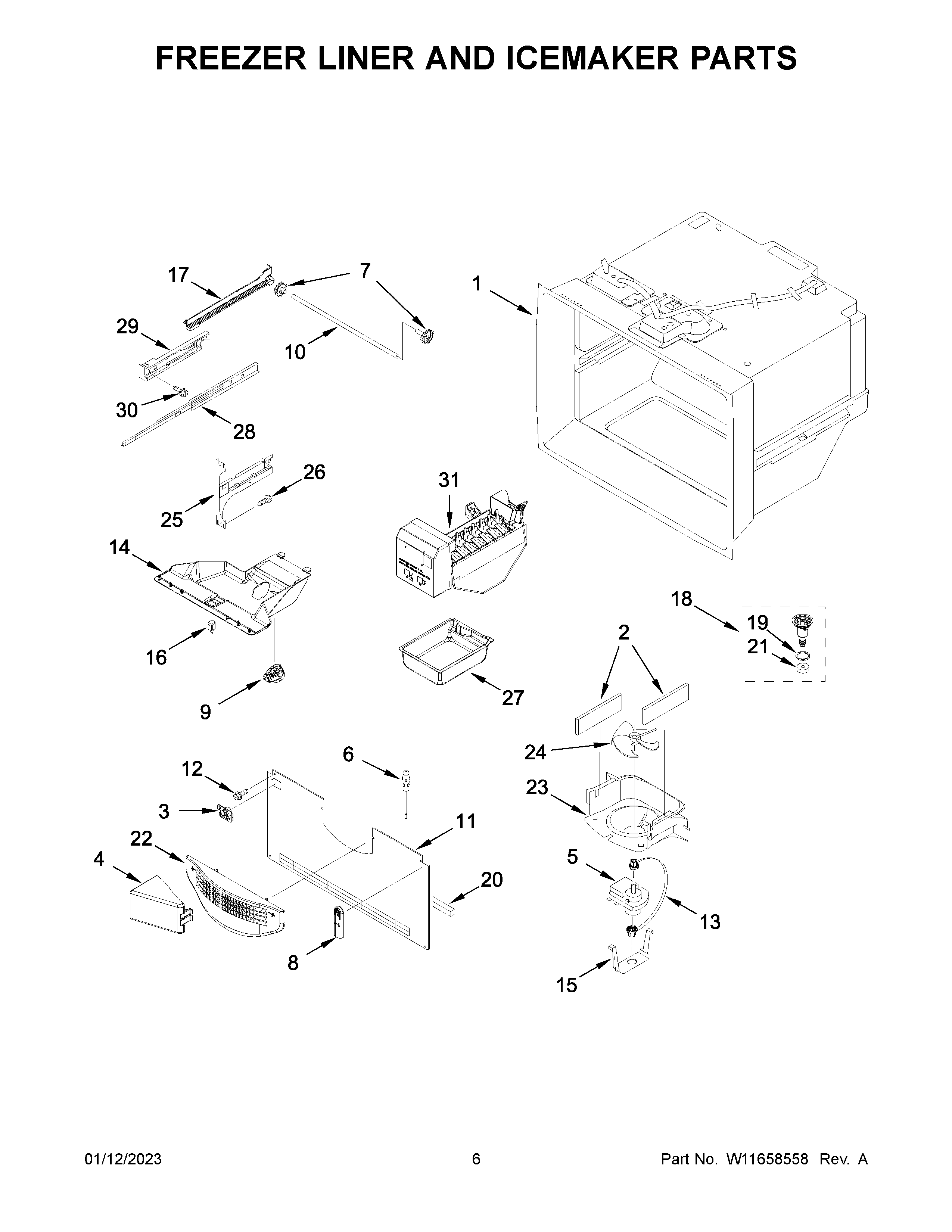

WRF535SWHV08 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3GUIDE, FILL TUBE
4W10157765 Whirlpool Refrigerator Deflector
5MOTOR-EVAP
6W10316760 Whirlpool Thermistor Kit
712002497 Whirlpool Refrigerator Drawer Gear Kit
8WP67003924 Whirlpool Refrigerator Cover
9MODULE
10W11028221 Whirlpool Refrigerator Shaft
11W11727809 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13W11690160 Whirlpool Grommet
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W11489993 Whirlpool Refrigerator Rail
17AW11489994 Whirlpool Refrigerator Rail
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20W11159728 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25WPW10330991 Whirlpool Refrigerator Bracket
25AWPW10330993 Whirlpool Refrigerator Bracket
26WP98165 Whirlpool Screw
27WPW10171529 Whirlpool Refrigerator Ice Pan
28W11658402 Whirlpool Drawer Slide Rail
29AWPW10284685 Whirlpool Refrigerator Bracket
29WPW10284684 Whirlpool Refrigerator Bracket
30WP489474 Whirlpool Refrigerator Screw
31W11692144 Whirlpool Ice Maker
