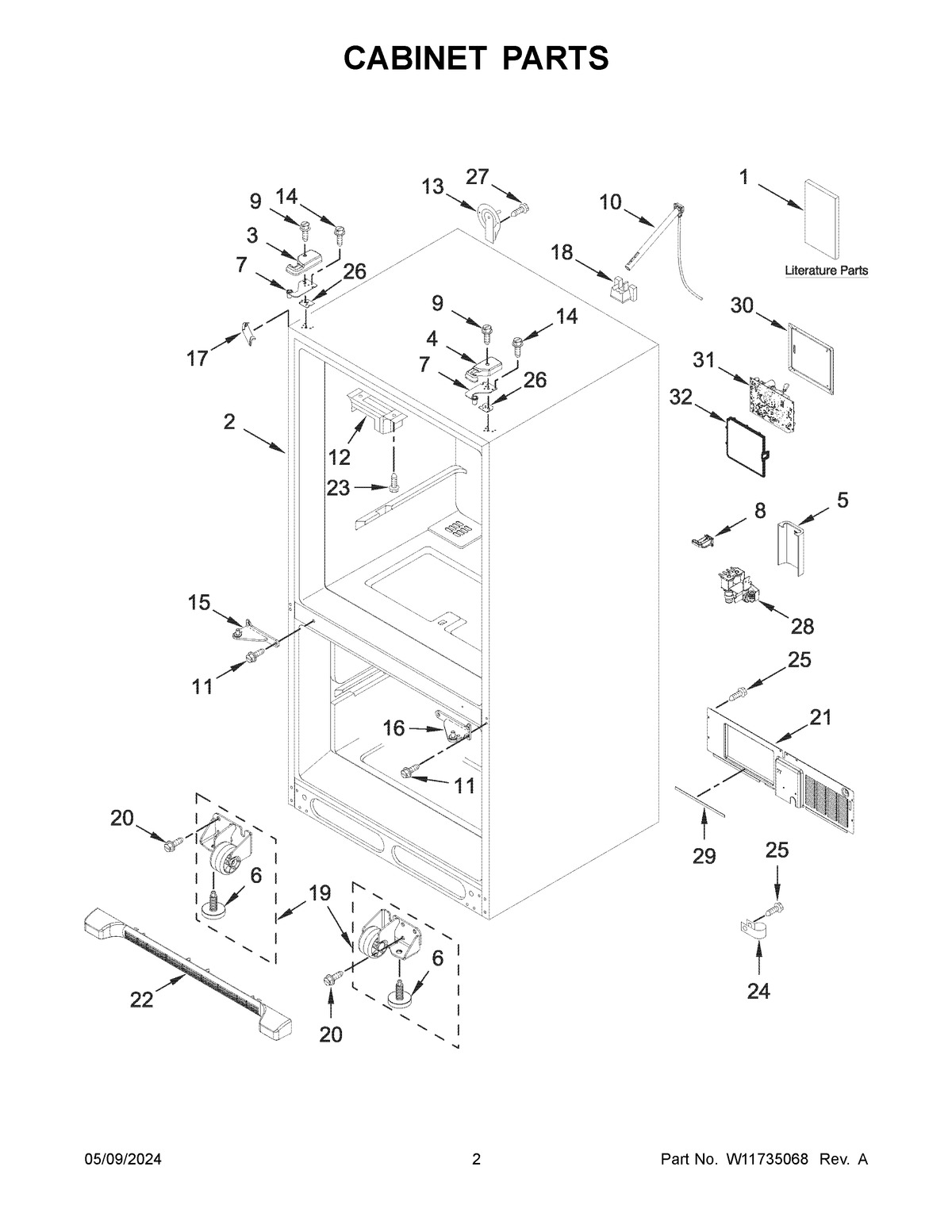

WRF535SWHV10 02 – CABINET PARTS

WRF535SWHV10 02 – CABINET PARTS

Written by

in

WRF535SWHV10 02 – CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
1BTECH SHEET
1AENERGY GUIDE
2CABINET (NOT A SERVICABLE PART)
3W10337647 Whirlpool Refrigerator Cover
4WP67005956 Whirlpool Refrigerator Cover
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10W11181718 Whirlpool Refrigerator Water Tube
11W11573362 Whirlpool Screw Assembly
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
14WP489349 Whirlpool Refrigerator Screw
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W11686793 Whirlpool Block
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23W11693756 Whirlpool Screw Assembly
24W11456069 Whirlpool Refrigerator Clamp
25W11686675 Whirlpool Screw
2612999501 Whirlpool Refrigerator Hinge Shim
26A12999502 Whirlpool Refrigerator Hinge Shim
27WP98165 Whirlpool Screw
28W11524655 Whirlpool Refrigerator Valve
29W11534848 Whirlpool Gasket
3012961602 Whirlpool Refrigerator Wire Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32W10296541 Whirlpool Refrigerator Wire Cover
