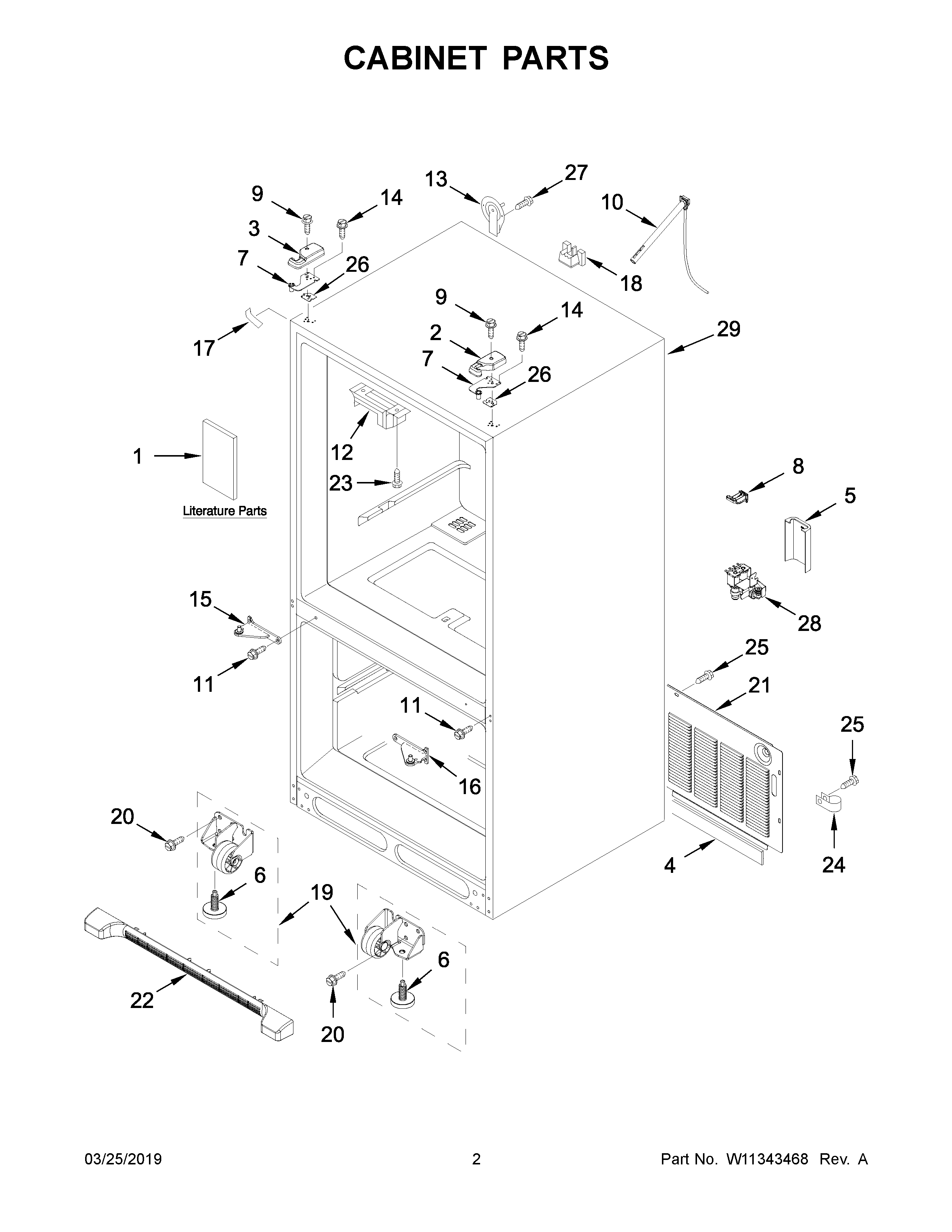

WRF535SWHW01 02 – CABINET PARTS

WRF535SWHW01 02 – CABINET PARTS

Written by

in

WRF535SWHW01 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1USE AND CARE GUIDE
3AWP67005956 Whirlpool Refrigerator Cover
367005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10W11181718 Whirlpool Refrigerator Water Tube
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10918115 Whirlpool Refrigerator Door Hinge
15AW10918166 Whirlpool Refrigerator Door Hinge
16W10918117 Whirlpool Refrigerator Door Hinge
16AW10918168 Whirlpool Refrigerator Door Hinge
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W11686793 Whirlpool Block
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22AWPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23W11693756 Whirlpool Screw Assembly
24W11456069 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
2612999501 Whirlpool Refrigerator Hinge Shim
26A12999502 Whirlpool Refrigerator Hinge Shim
27WP98165 Whirlpool Screw
28VALVE-WATER INLET REFR
29CABINET (NOT A SERVICEABLE PART)
